Hardware – Description and Installation

13

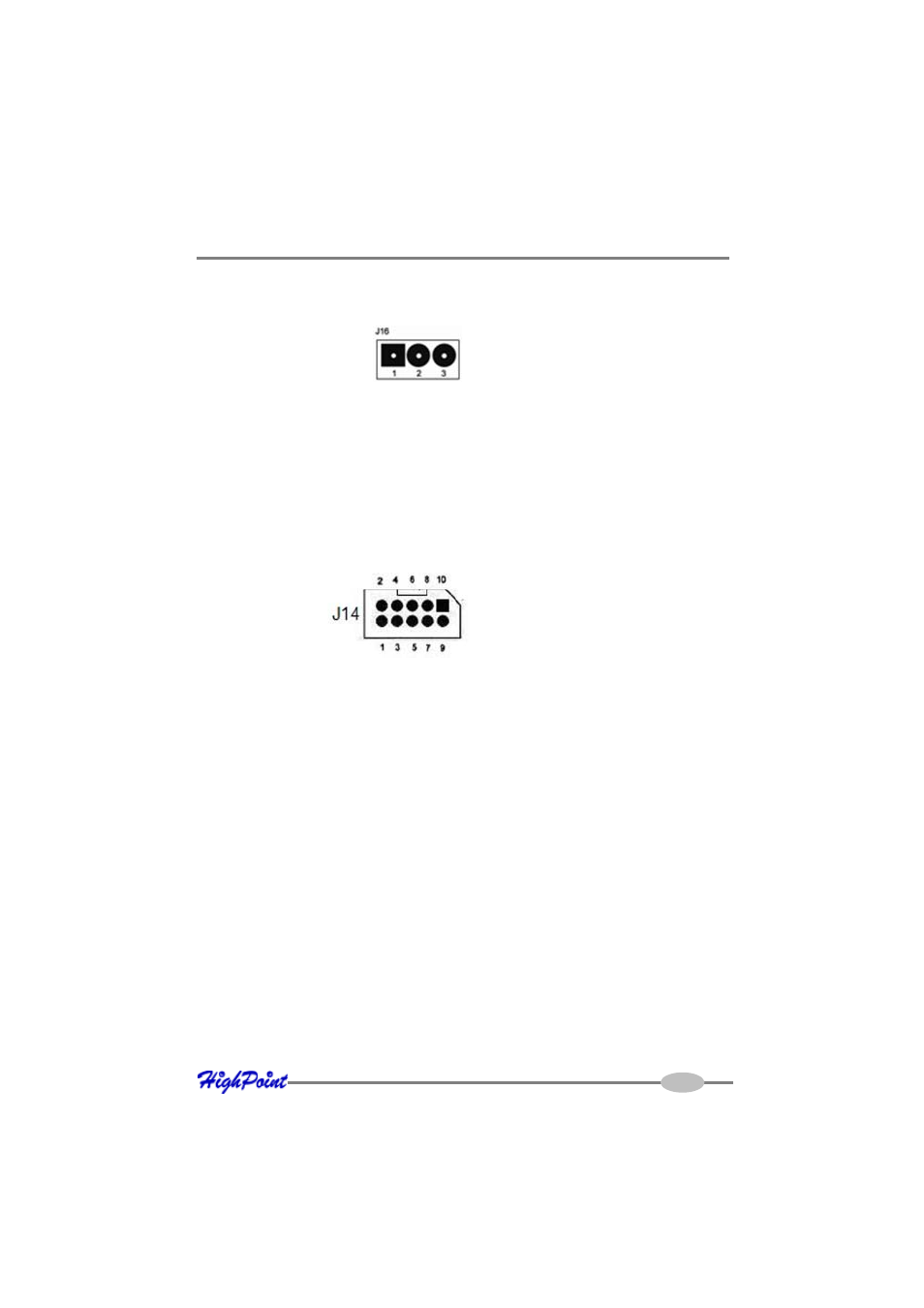

Pin definitions:

Pin 1: SCL; Pin 2: GND; Pin 3: SDA.

J14 (BBU connector)

Connector for HPTBBU-03 (HighPoint Battery Backup Unit 03,optional part,sold

separately—see “Battery Backup” for details).

BEEP1 – Speaker

Alarm (speaker): the speaker emits an audible alarm in the case of disk/array failure.

Ethernet Port

Ethernet port for Out of Bound Management, support Net Time Protocol.

Cable – Internal Mini-SAS to Mini-SAS

The RocketRAID 4320 includes 2 Internal Mini-SAS to Mini-SAS cables.

J16

This connector supports SAF-TE interface (I2C).
