RocketRAID BIOS Utility

RocketRAID BIOS Utility

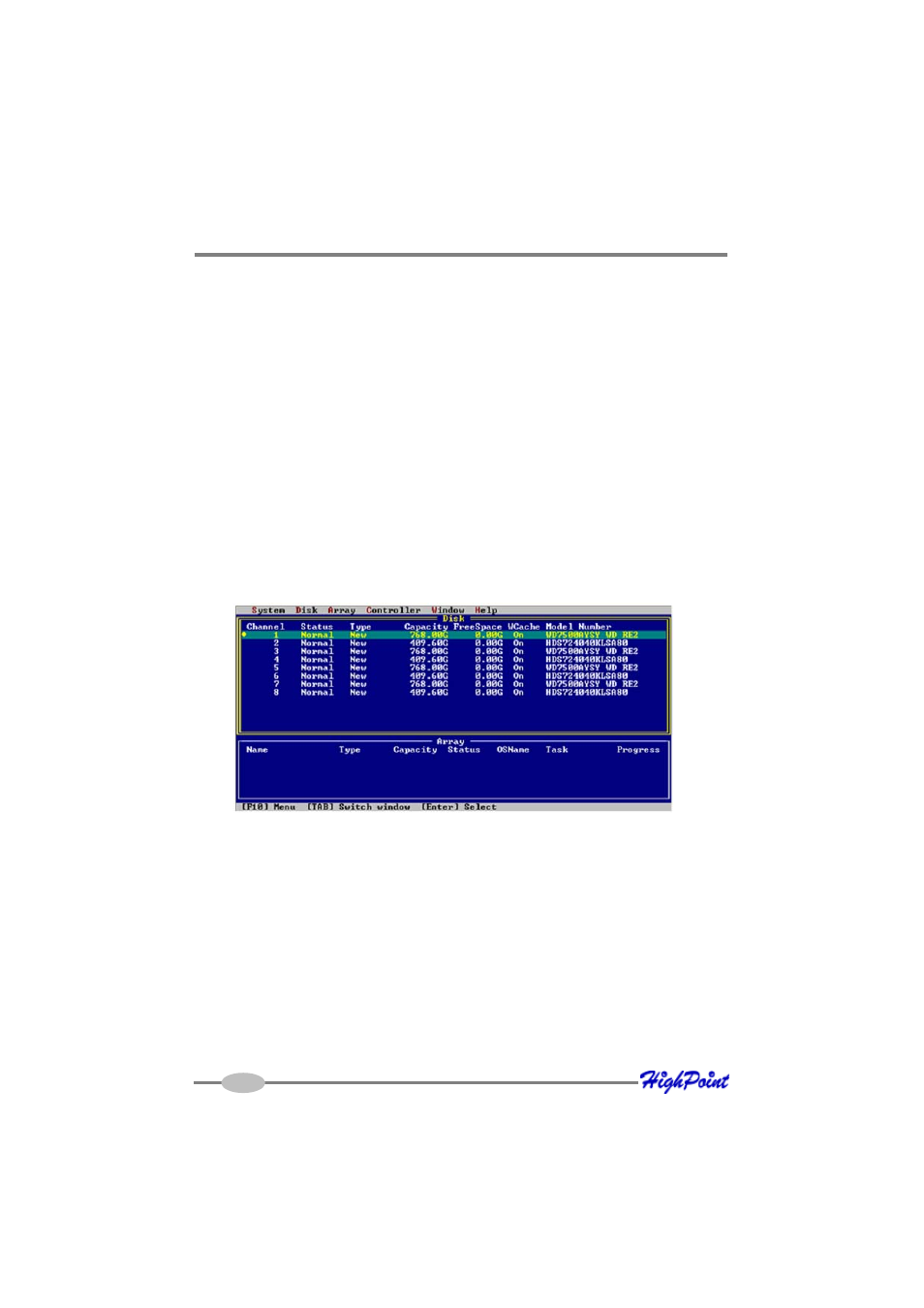

The RocketRAID 431x/432x card will display it’s BIOS screen during the system’s

boot process.

Using the BIOS Utility

The following keys utilized by the RocketRAID 432x BIOS utility:

F10 – press F10 to highlight the tool bar Menu.

Arrow keys – use these to move between different menu items

Enter – Open the selected toolbar command/execute the selected command.

Esc – move back to the previous menu, cancel the selected operation.

Tab – Switch between Disk and Array menus, move to next Menu item.

Space Bar – select an item (when selecting Block Size for a RAID configuration, for

example).

Press Control + H when prompted, to access the BIOS settings Menu.

1 - BIOS Settings Overview

The RocketRAID 432x BIOS utility is an interface that provides management com-

mands and controller related settings.

Now, RocketRAID 432x will be used for illustrating ,you will know how to do BIOS

Utility of RocketRAID controllers .RocketRAID 431x are similar to RocketRAID 432x,

except for channel number ,Ethernet port and Hardware Monitor function.
