Hardware – Description and Installation

11

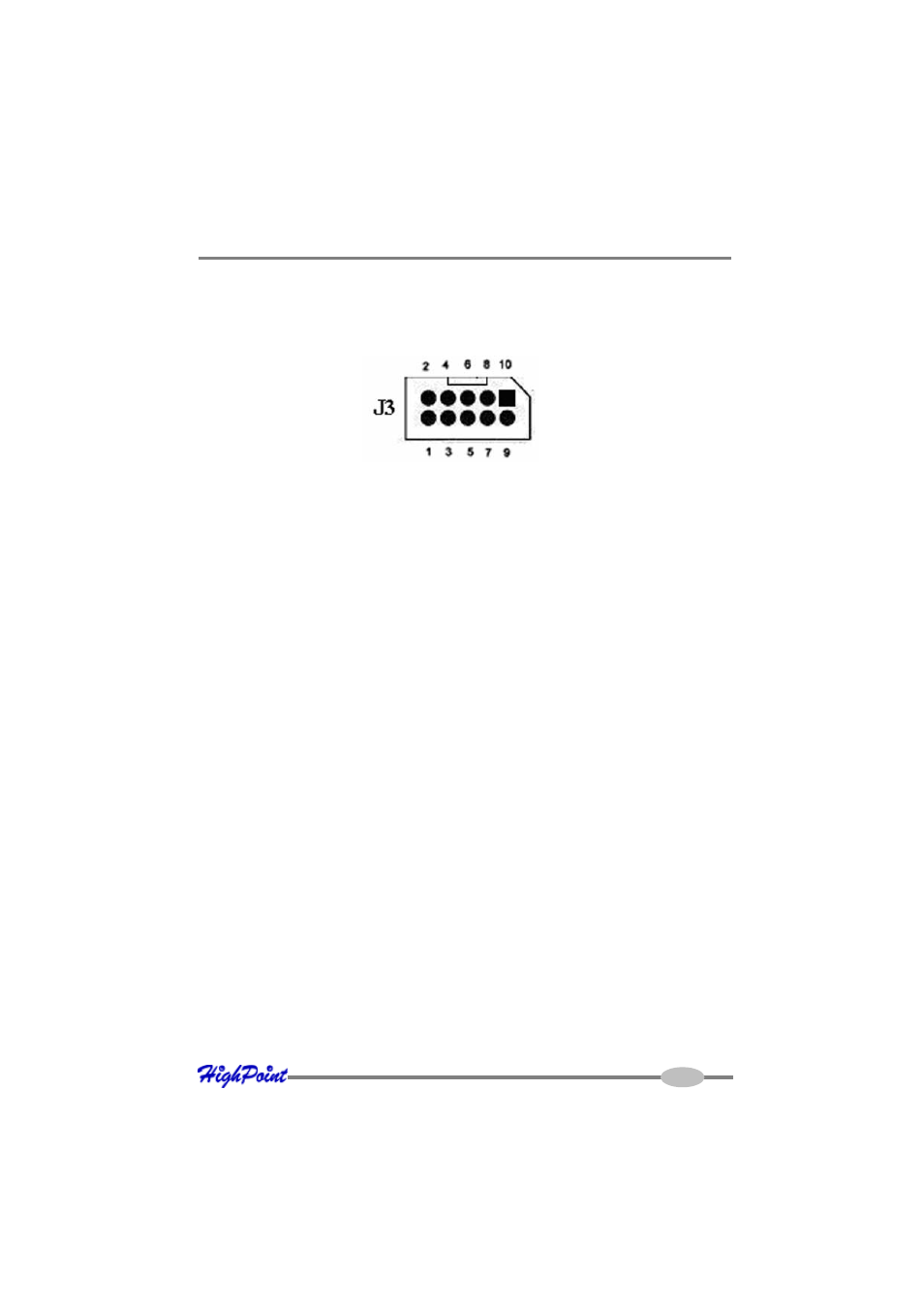

J3 (BBU connector)

Connector for HPTBBU-03 (HighPoint Battery Backup Unit 03,optional part,sold

separately—see “Battery Backup” for details).

BEEP1 – Speaker

Alarm (speaker): the speaker emits an audible alarm in the case of disk/array failure.

J4 - Ethernet Port (RocketRAID 4321)

Ethernet port for Out of Bound Management, support Net Time Protocol.

Cable – Internal Mini-SAS to Mini-SAS

The RocketRAID 4310/4321 includes 1 Internal Mini-SAS to Mini-SAS cables.
