Hardware – Description and Installation

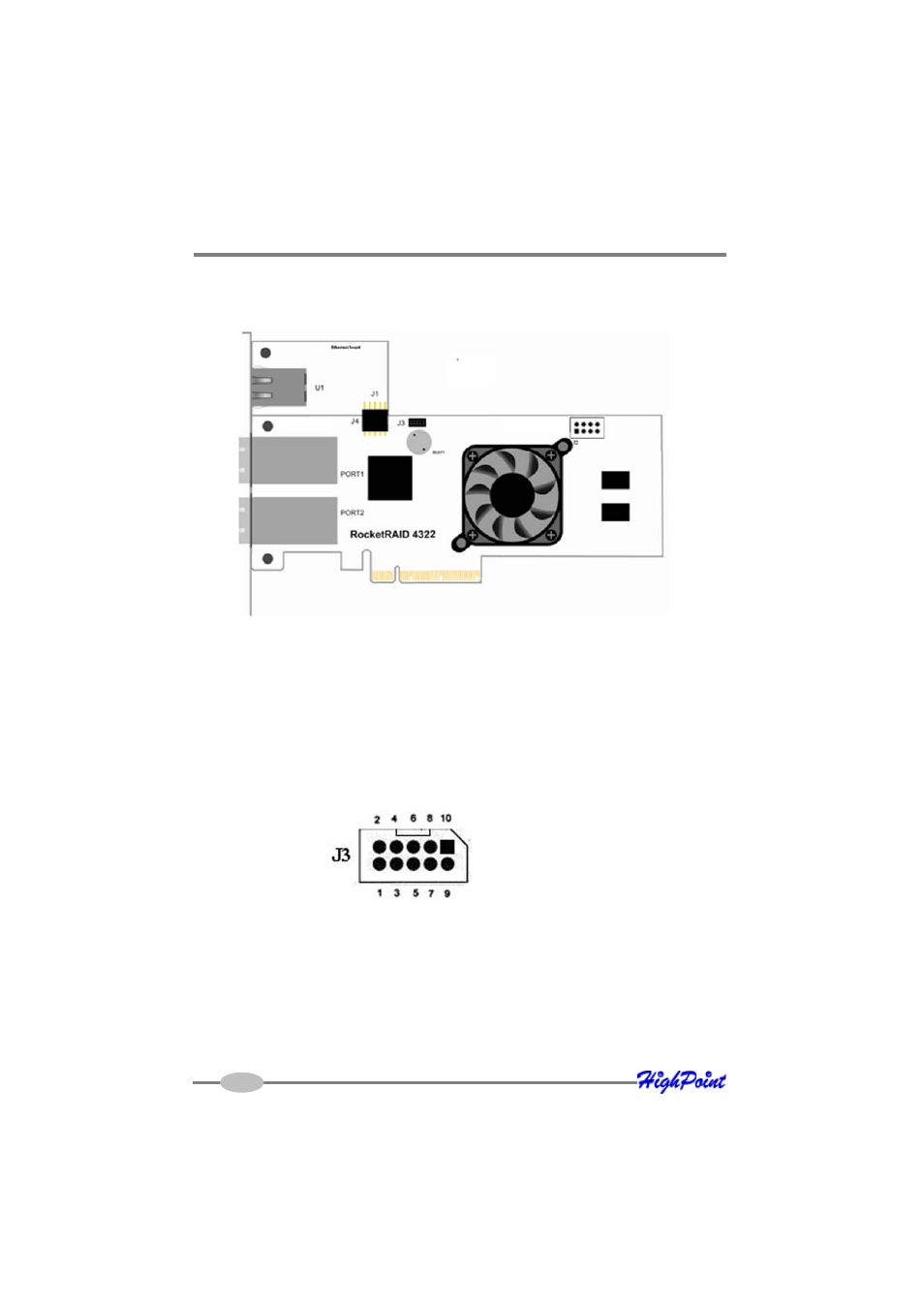

1.3 – RocketRAID 4322 Adapter layout

Port1, Port2

These represent the RocketRAID ’s 2 External Mini-SAS ports. Each port can directly

support up to 4 SAS/SATA hard drives.

J3 (Battery connector)

Connector for HPTBBU-03 (HighPoint Battery Backup Unit 03,optional part,sold

separately—see “Battery Backup” for details).

BEEP1 – Speaker

Alarm (speaker): the speaker emits an audible alarm in the case of disk/array failure.

J4 (HighPoint Ethernet Board connector)

Connector for HighPoint Ethernet Board ( see “Installing the HighPoint Ethernet

Board” for details)
