Hardware – Description and Installation

2.1 – Installing the RocketRAID 431x/4320/4321 Host Adapter

15

2 – Installing the RocketRAID Host Adapter

Note: Make sure the system is powered-off before installing the RocketRAID 431x/

4320 /4321host adapter.

1. Open the system chassis and locate an unused PCI-E x8 or x16 slot.

2.

Remove the PCI slot cover.

3.

Gently insert the RocketRAID 431x/4320/4321 into the PCI-E slot, and secure the

bracket to the system chassis.

4.

After installing the adapter, attach the Mini-SAS cables to the RocketRAID 4310/

4320/4321’s Mini-SAS port, and the chassis backplane. Each Mini-SAS cable

supports up to 4 hard disk drives. Consult the chassis’s manual for proper

installation procedures.

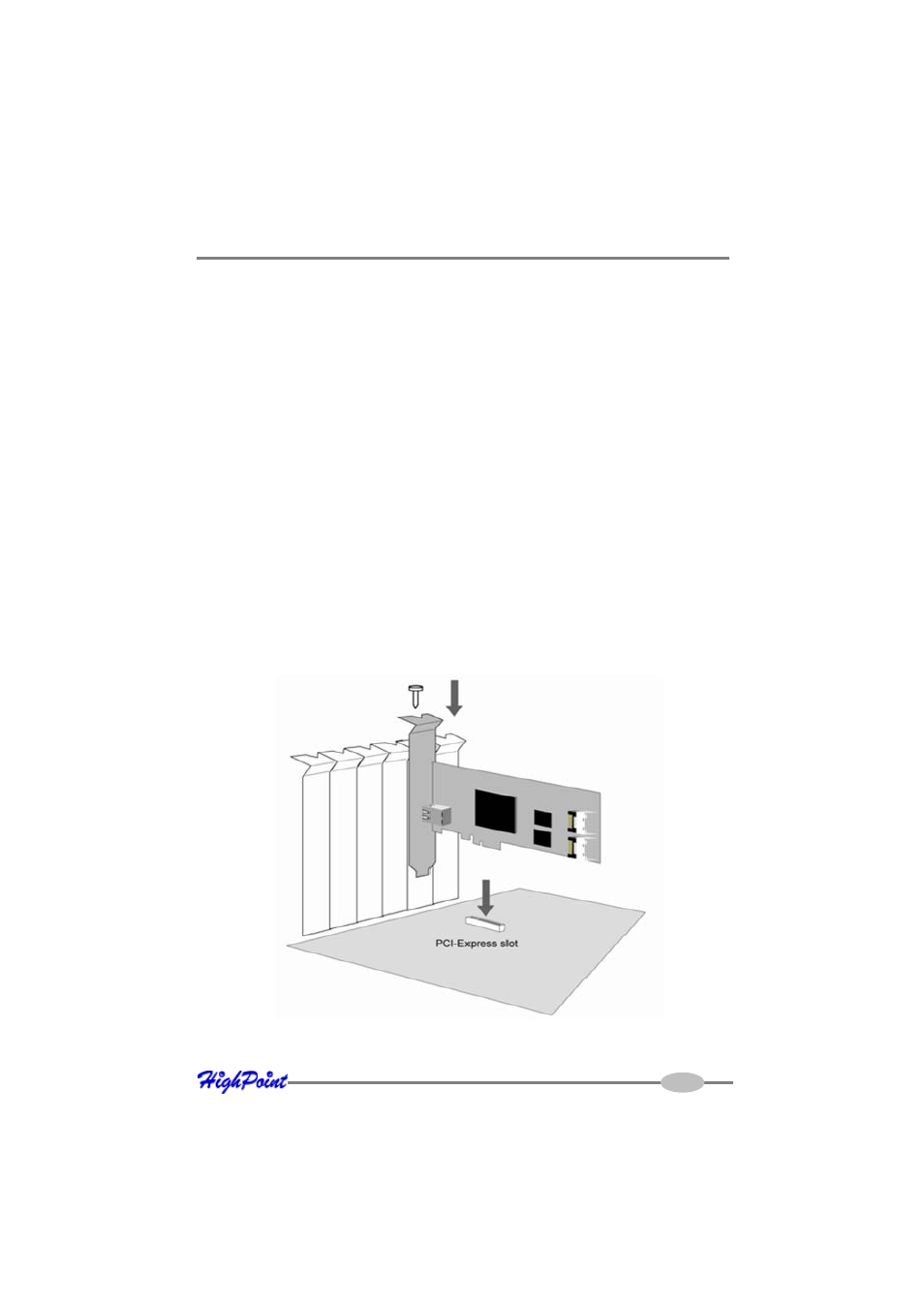

(illustration shows the RocketRAID 4320)

5.

Close and secure the system chassis.
