5. Setting up the NA762TB

5.1 HDD Installation

The NA762TB has 8

Disk modules. It can support both SATA and SAS hard disk drives.

Note: Use only enterprise RAID edition series hard disks for RAID applications.

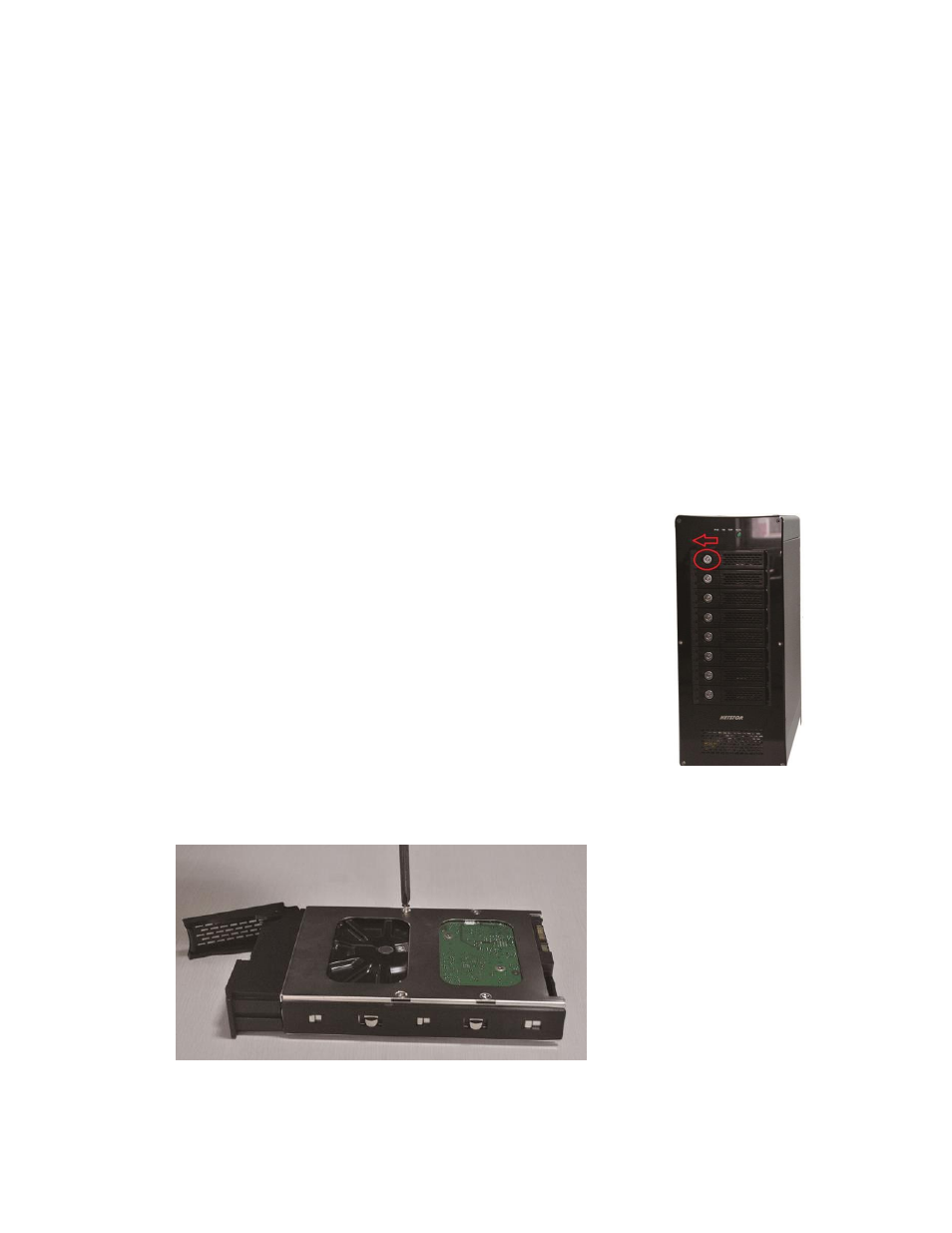

step 1. Place the NA762TB on a level surface and remove each disk

module.

step 2. Carefully insert the HDD into each disk module and secure them with the provided

mounting screws. Once complete, insert each disk module back into the front panel of the
NA762TB.
