HighPoint Technologies Inc. 19
APPENDIX A - Using the WebGUI (full guide)
HighPoint’s web-based RAID Management Software (also known as the WebGUI) is used to monitor
and configure hard disks and RAID arrays attached to HighPoint RocketRAID host adapter which is
intergraded to the NA762TB.
1. Running the HighPoint Web RAID Management software (WebGUI)

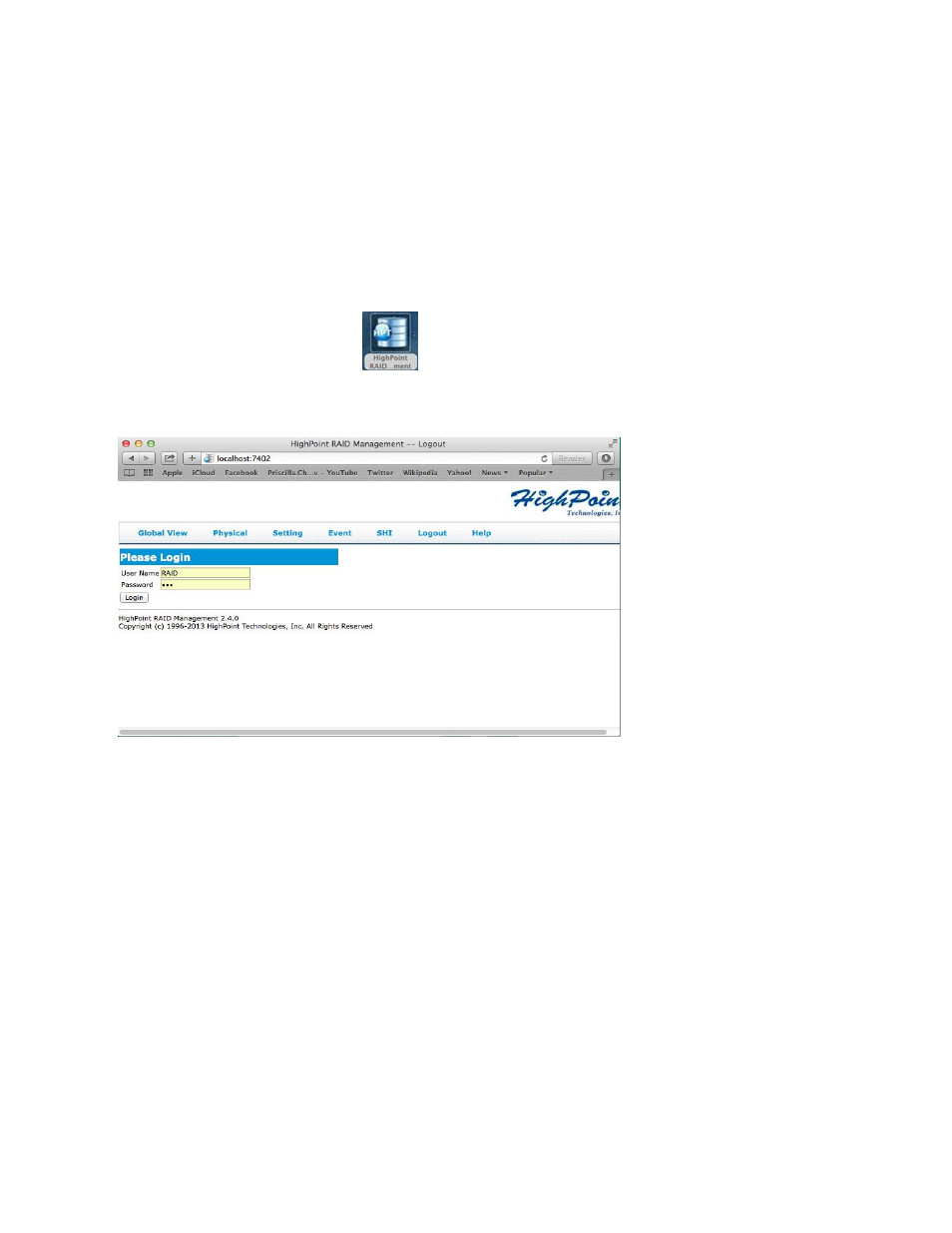

After downloading and installing the WebGUI, open the WebGUI by double-clicking the icon found
on the desktop:
Login to the WebGUI and configure the RAID arrays. Use the default user name: RAID and password:
hpt to login
Remote Login
Users connected to a local network can remotely access the WebGUI through the IP address the
machine is located on.
Open a terminal and type in the following command: ifconfig
Once the IP address is obtained users can remotely access the machine by typing in the following
address:
http://IP Address:7402
