CHAPTER 4
OPERATION
This chapter contains information that is needed to operate the GMW90
series transmitters.
Display
Startup Screens
When the transmitter is powered on, it displays a sequence of
information screens. The screens are shown for a few seconds each.
The first screen identifies the transmitter and the connected measurement
modules, and shows if the transmitter is operating normally (status OK)
or if there is an error (status ERROR).
The following screens show configuration information that is relevant to
the outputs of the transmitter. Transmitters with digital output show
information on the selected communication protocol (BACnet or
Modbus). Transmitters with analog output show the analog output mode
and scaling.
The last screen shows the currently configured pressure compensation
setting.
1310-049, 1310-047

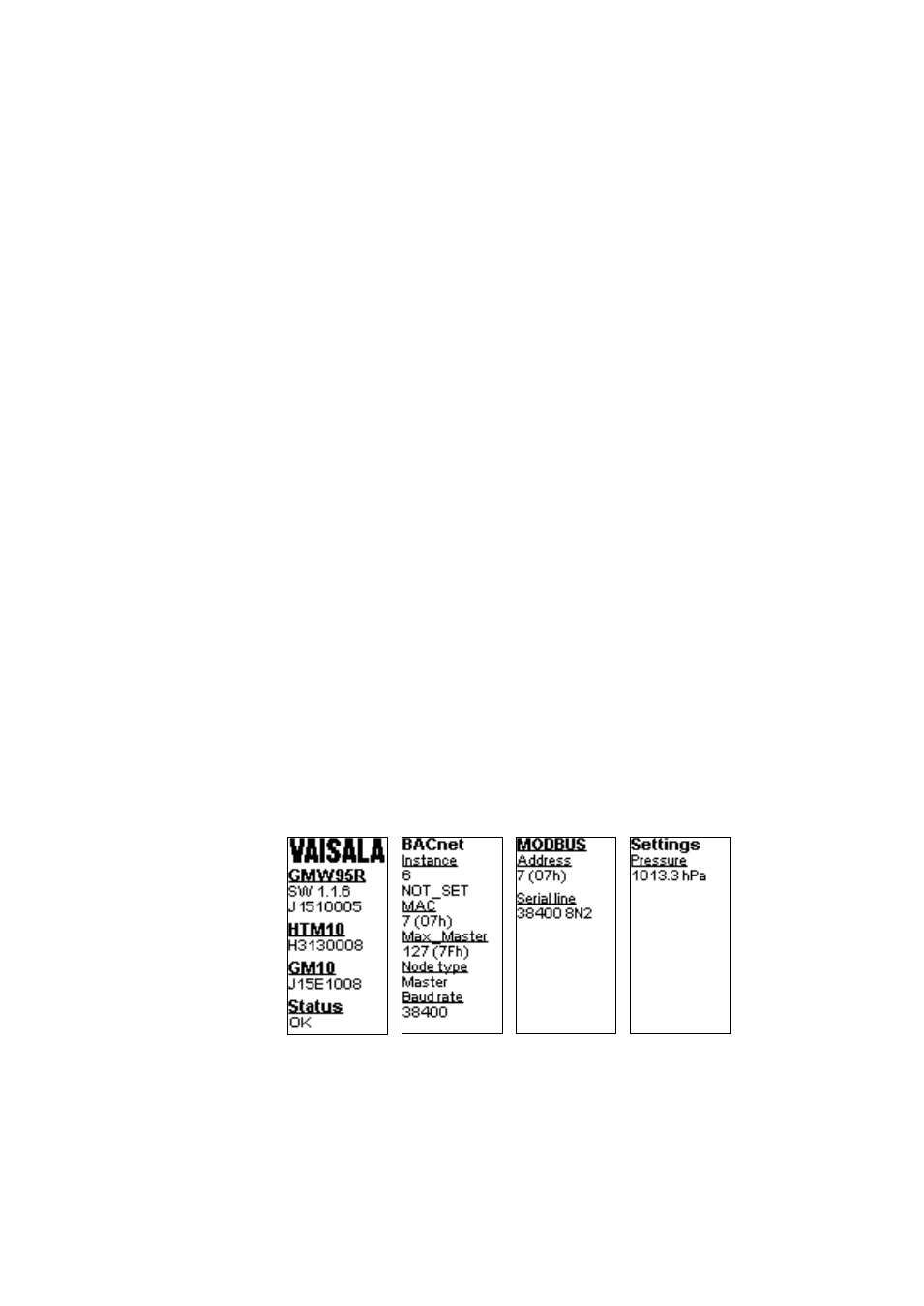

Figure 21 GMW95R Startup Screens
After the startup screens the transmitter shows the measurement screen. It
shows the measured parameters and currently active indicators.
