Connecting a Common AC Power Supply
to Several Transmitters
If you are connecting a common 24 VAC power supply to several
transmitters, make sure to connect the same terminal to +Vs and –Vs on
all transmitters. This will avoid a short-circuit through the shared
common line at the controller; see Figure 20 below.
1310-046

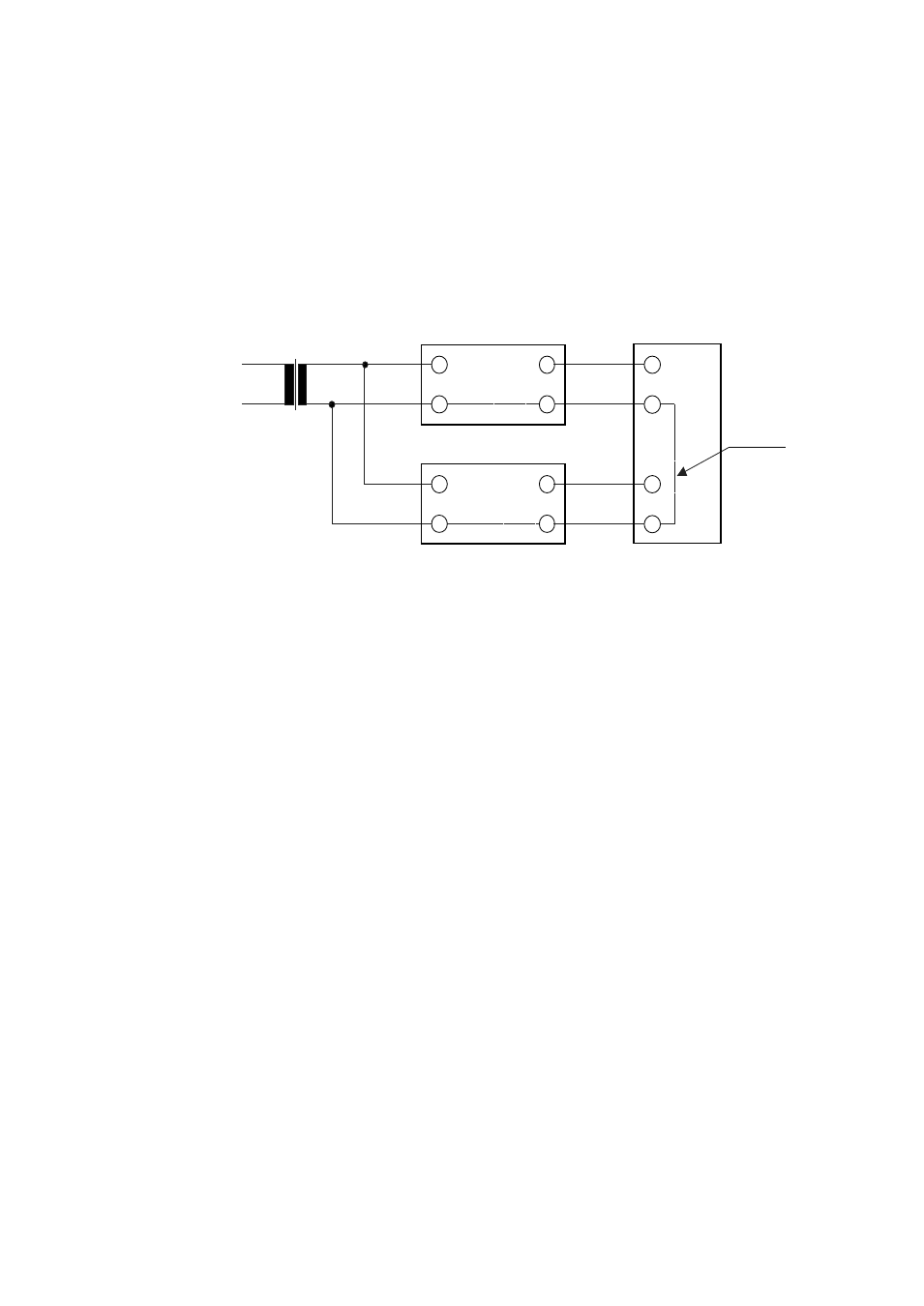

Figure 20 Connecting a Common AC Power Supply
+Vs OUT
-Vs
+Vs OUT
-Vs GND
Shared
common
line
GMW90
GMW90
CONTROLLER
24 VAC
Supply
voltage
Supply
voltage
Signal
output
Signal
output
GND
