USER'S GUIDE____________________________________________________________________
DMT242SC
DMT242SC is a sampling cell with threads 3/8"G and 1/4"G. See
Figure 24 on page 52.
DMT242SC2
DMT242SC2 is a sampling cell with 1/4" welded Swagelok
connectors. See Figure 24 below.
0405-013

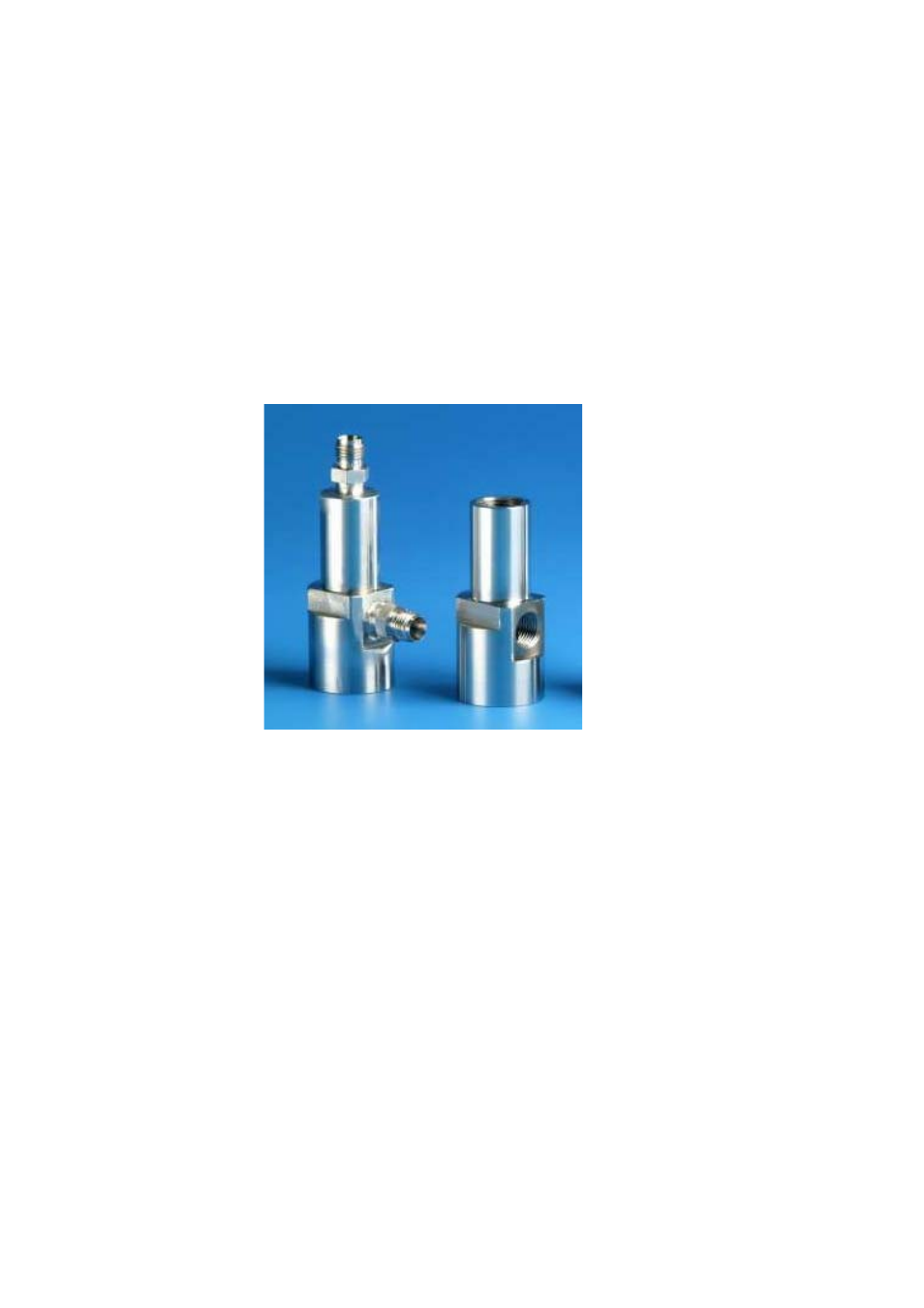

Figure 24 DMT242SC and DMT242SC2 Sampling Cells
Connection to Pressurized Processes Using
the DSC74 Sampling Cell
DSC74 is a Vaisala sampling cell for connecting DM70 to the
pressurized processes (See section Accessories on page 89). With
DSC74B and DSC74C measuring can be done in overpressure or
atmospheric pressure. This depends on whether the sample gas is let
into the sample cell before the needle valve or after that. See Figure 21
on page 49 and Figure 22 on page 50.
52 __________________________________________________________________ M010091EN-F
