USER'S GUIDE____________________________________________________________________
Analog Output
Selecting and Scaling the Analog Output
0403-052

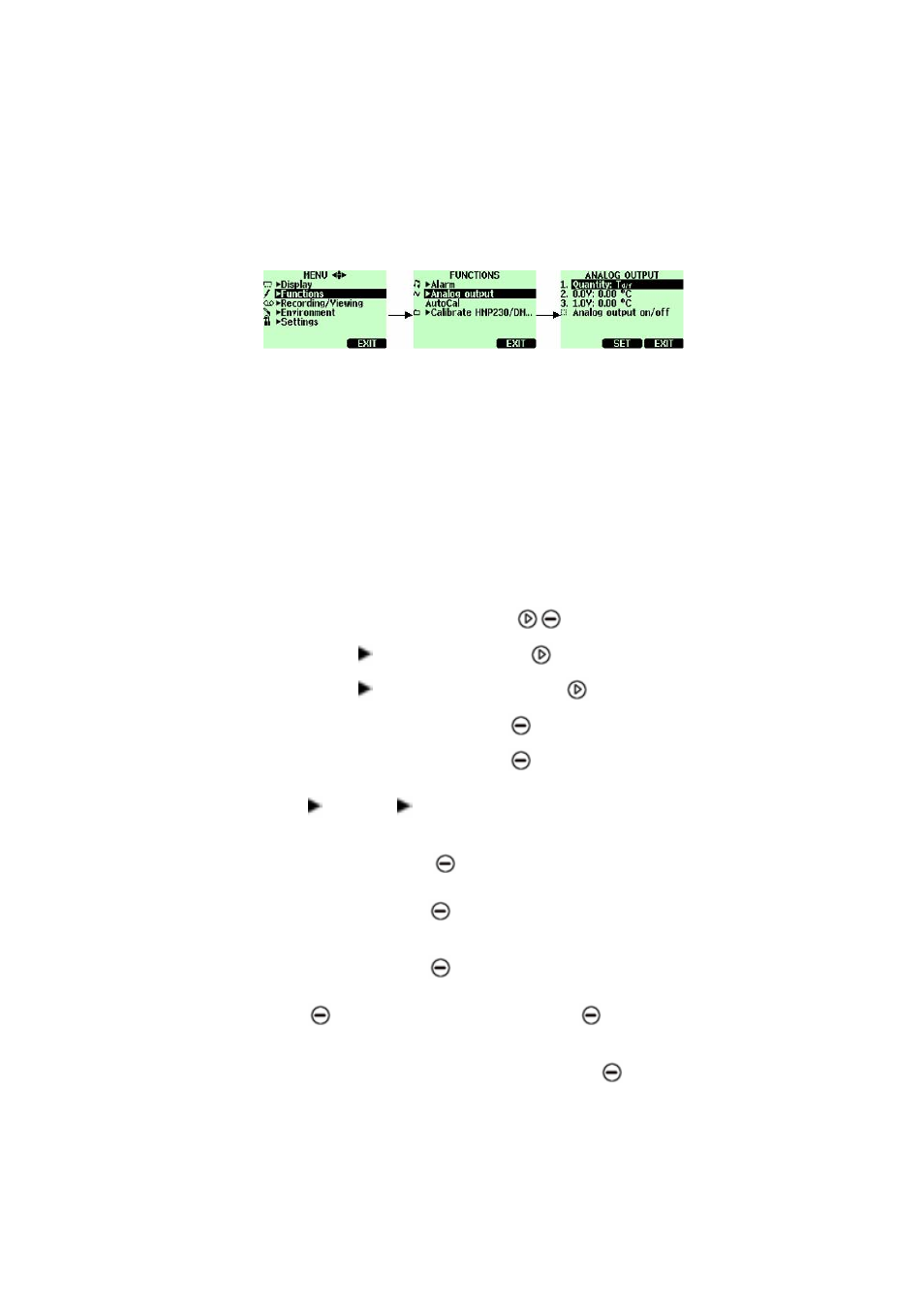

Figure 8 Analog Output
To get analog measurement data, an analog signal cable is needed (see
section Accessories on page 89).
1. Connect the signal cable connector of the analog output to the
base connector of the indicator. Connect the screw terminal
block as follows:
Brown wire: common wire (-)
Yellow-green wire: signal (+)
2. Open the menu by pressing Open.
3. Select Functions and press .
4. Select Analog output and press .
5. Select Quantity and press Set.
6. Select Quantity and press Select. Only one active quantity
can be selected at a time. To change the quantities, go to Menu -
Display - Quantities and units.
7. To set the value for the 0.0 V output signal, select
0.0 V and press Set. If the analog output is on, turn it off.
Set the low value using the arrow buttons. To select the sign for
the value, press +-.
8. To set the value for the 1.0 V output signal, select
1.0 V and press Set. Set the high value using the arrow
buttons. To select the sign for the value, press
+-. To confirm the setting, press OK.
9. To activate the analog output and to return to the basic display,
select Analog output on/off and press On. The following
symbol ~ appears in the upper left corner of the basic display.
26 __________________________________________________________________ M010091EN-F
