Manifold kits – State CSB 120 54 IFE User Manual
Page 48
48

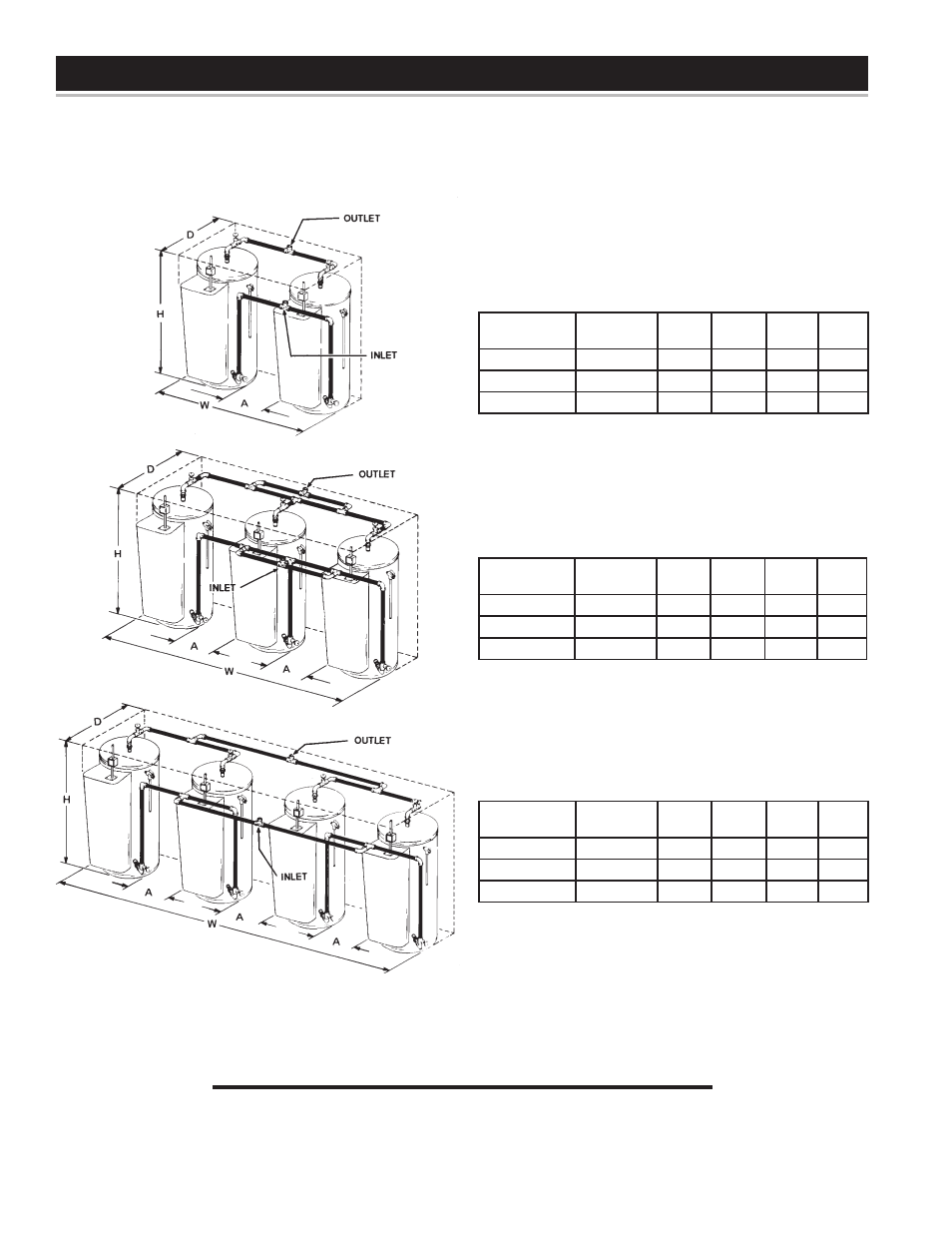

MAnIfoLd kIts
MAnIfoLd kIts
ALL DIMENSIONS IN INCHES
MAnIfoLd kIts
two hEAtErs
tank Capacity
(Gallons)
Part
number
h
w
d
A
52
9003429205 66 1/4
56 3/4
27 1/4 13 1/4
80
9003429205 70 1/2
60 1/4
31 1/4
9 3/4
120
9003429205 73 1/4
64 1/2
35 3/4
5 1/2
Inlet and outlet size - 1 1/2
thrEE hEAtErs
tank Capacity
(Gallons)
Part
number
h
w
d
A
52
9003430205 66 1/4
91 3/4
27 1/4 13 1/4
80
9003430205 70 1/2
95 1/4
31 1/4
9 3/4
120
9003430205 73 1/4
99 1/2
35 3/4
5 1/2
Inlet and outlet size - 2 1/2
four hEAtErs
tank Capacity
(Gallons)
Part
number
h
w
d
A
52
9003431205 66 1/4 126 3/4 27 1/4 13 1/4
80
9003431205 70 1/2 130 1/4 31 1/4
9 3/4
120
9003431205 73 1/4 134 1/2 35 3/4
5 1/2
Inlet and outlet size - 2 1/2
