5

receiving data. If the LED is green it indicates that

the device is operating with a link speed of

1000Mbps. If it is orange, the link speed is

10/100Mbps.

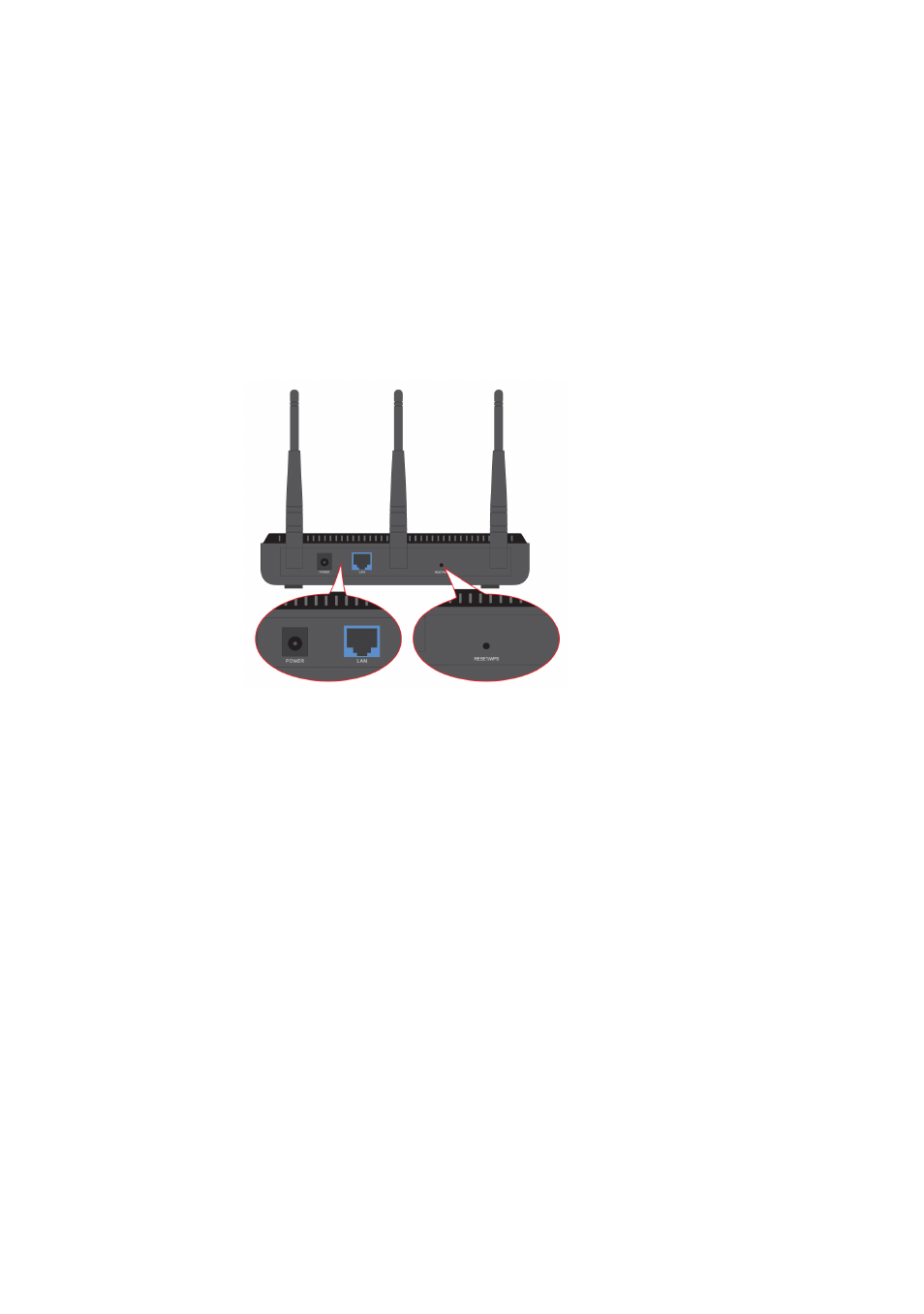

Rear Panel:(From L to R)

POWER

The power jack is for the power adapter

connection. Please use the included 12V DC

power adapter.

LAN

The Gigabit Ethernet port is for connection to a

computer’s NIC or an Ethernet switch. It can

also be used as a PoE interface. When both PoE
