33
4.1.2 P2P (Point to Point) Bridge Mode
The P2P Bridge Mode uses two MW300As to provide a
wireless "bridge" between two wired local networks,
allowing them to communicate with each other and
share network resources. In this mode the two
MW300As cannot be used to connect with wireless
clients, therefore all clients must be wired to the
network or connect wirelessly using another MW300A
configured as an Access Point.
4.1.2.1 Application Plan
The P2P bridge mode connects two wired networks
using the wireless signal as a bridge, replacing the

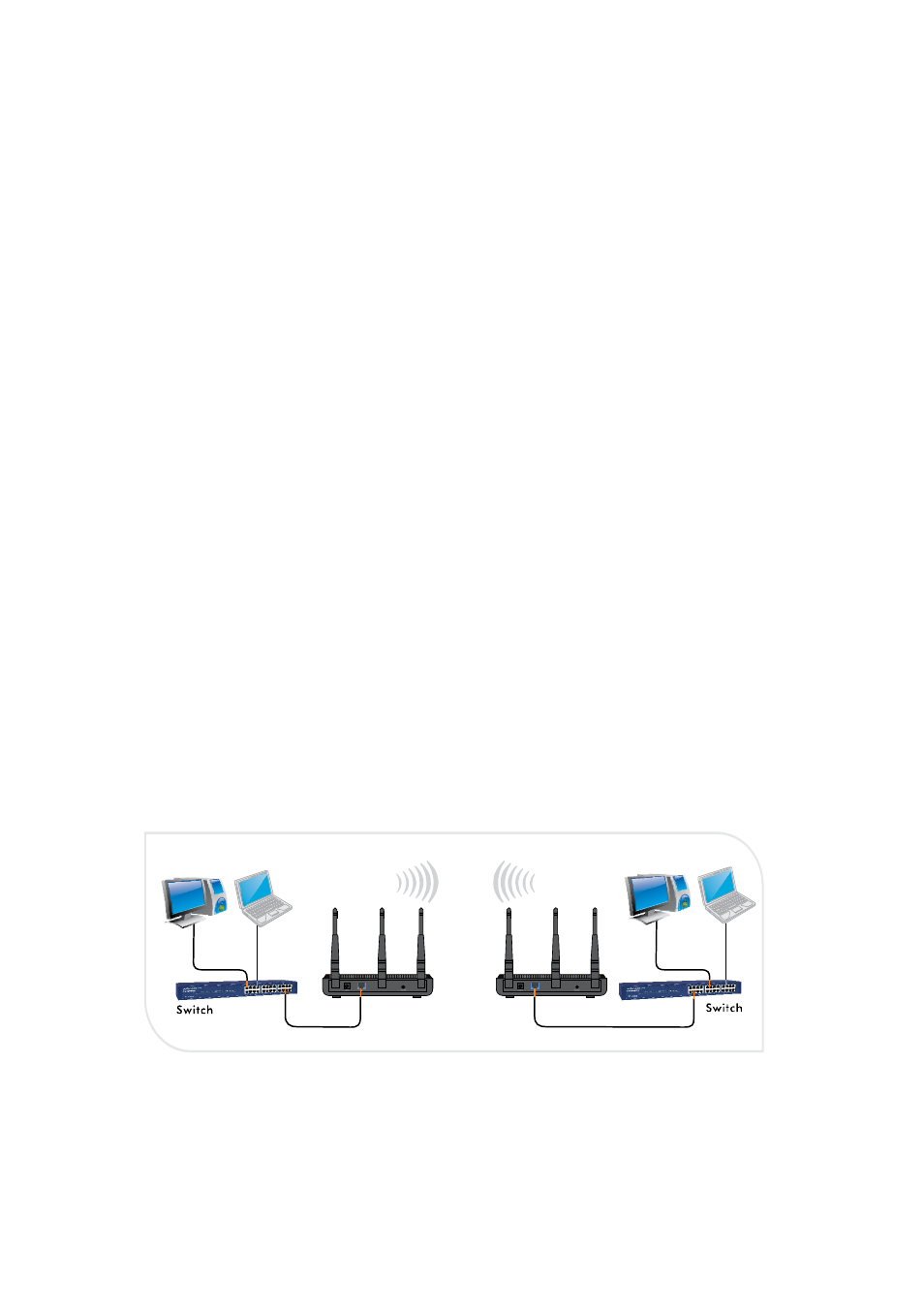

need for long or troublesome cable runs. The
connection diagram is shown below:
