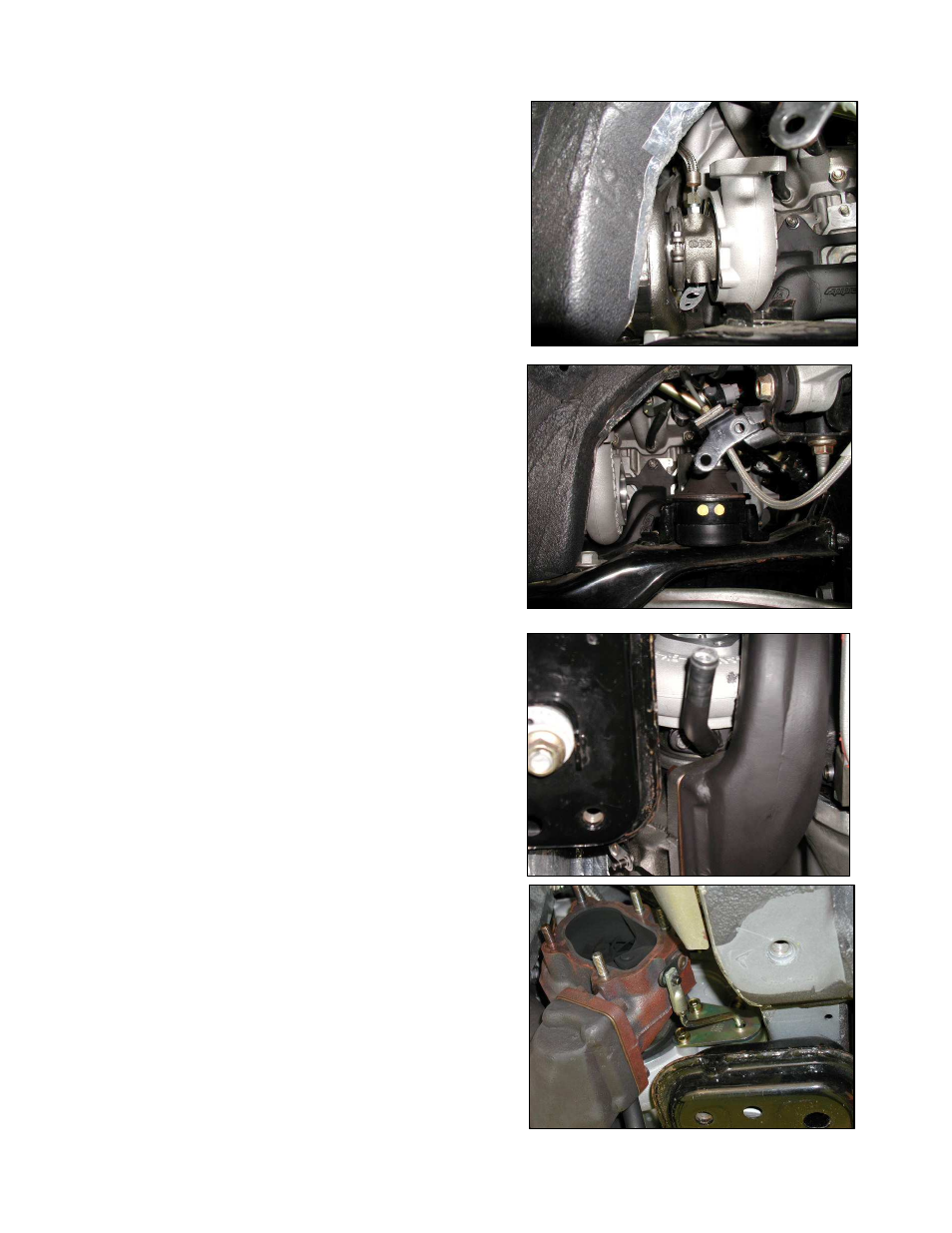

5. Connect the oil pressure line that was installed
in the step 3-2 to the turbocharger. Install the
turbocharger to the manifold using the provided
gasket and hardware.
(Parts Used #46, 66)
6. Reinstall the engine mount bracket and rubber,
then remove the SST tool.
7. Install the suction pipe S-3 to the turbo inlet
using the provided gasket and hardware.
(Parts Used #7, 44, 65)
8. Replace the oil drain plug with the provided oil
return fitting and copper washer.
(Parts Used #28, 29)
9. Install the oil return pipe to the turbo charger.
Wrap the thermo cloth to the 16
∅
hose and
connect the oil return pipe to the oil pan.
(Parts Used #27, 32, 39, 50, 63)
10. Install the compression pipe C-1 to the turbo
out let using the provided gasket and
hardware.
(Parts Used #8, 45, 65)
11. Re install the actuator back on to the
turbocharger. Reinstall the e-clip back to the
swing valve.
