GReddy TURBO KITS: Mazda RX-8 2003 / T618Z User Manual

Page 10

3-3 Oil Pressure Line Installation

1. Remove the factory oil pressure switch at the

left side of the rear rotor housing and install the

Oil pressure line using the provided 3 way

fitting, and straight fitting. Route the line to the

right side of the engine (over the transmission)

to connect to the turbo in the later step.

* Apply Teflon tape on the PT thread in and

to not over tighten the fitting.

* Wrap the oil pressure line with the

provided wire loom.

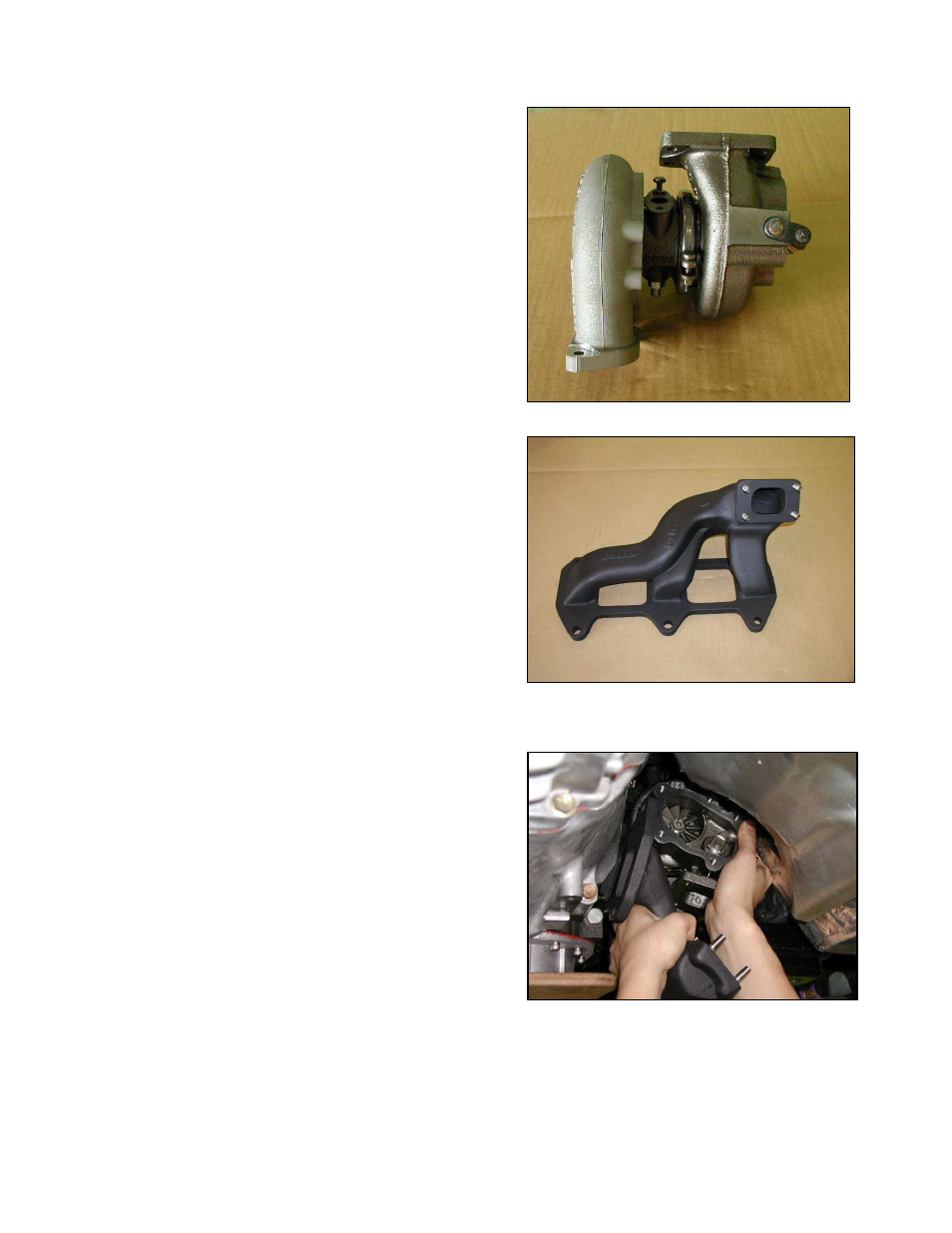

3-4 Turbocharger Install

1. Remove the e-clip and two bolts and remove

the actuator off from the turbocharger.

(Parts Used #1)

2. Install the provided oil pressure fitting with

copper washer and oil return gasket with one

mounting bolt as shown.

(Parts Used #22, 26, 48, 63)

3. Install the provided stud bolts to the manifold

and turbine as shown.

(Parts Used #2, 66)

4. Place the turbocharger up by the engine, and

while holding the turbo to the side, install the

exhaust manifold to the engine.

*Use factory gasket
