3-2 Thermo Cloth Installation

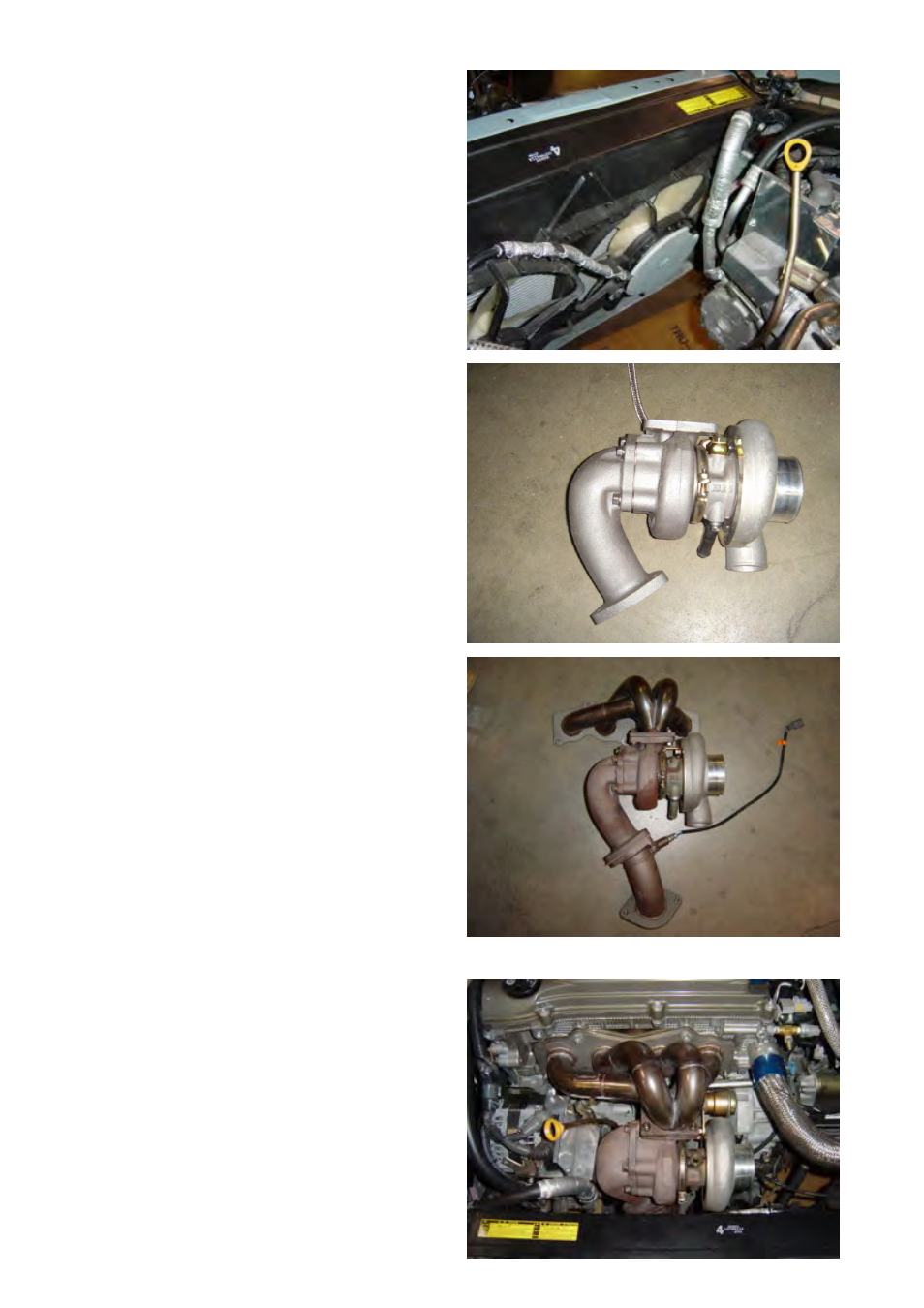

Wrap the AC line and surrounding
wire harnesses with the provided
thermo wrap.
(Parts used #44)
3-3 Turbocharger Assembly
1. Install the oil return flange tube to the
turbocharger using the provided
gasket.
(Parts used #1, 21, 39, 52)
2. Install stud bolts to the exhaust
housing and install the down pipe
adapter with provided gasket.
(Parts used #3,40,56)
3. Mount the turbocharger to the
manifold using the provided gasket
and bolts.
(Parts used #2, 3,39, 55,57)
4. Install the down pipe adapter1 to
the down pipe adapter2 with
provided gasket and hardware.
(Parts used #4,41,59)
3-4 Turbocharger Assembly Installation
Install the turbocharger assembly
with the provided gaskets.
※ Use stock bolts and exhaust manifold
gasket.
