2. Removal of Stock Parts
Please refer to the OE repair manual for removing stock parts.
2-1 Disconnect the negative terminal of the battery.
2-2 Drain the engine oil.
2-3 Disconnect the air flow meter.
2-4 Remove the Air cleaner assembly with airflow meter, intake tube.
2-5 Disconnect the primary O2 sensor and remove the exhaust manifold
2-6 Remove oil pan (Please refer to the factory service manual for detail instructions
for removing the oil pan.)
3. Kit Installation
3-1 Oil pan modification
1. Clean the oil pan.

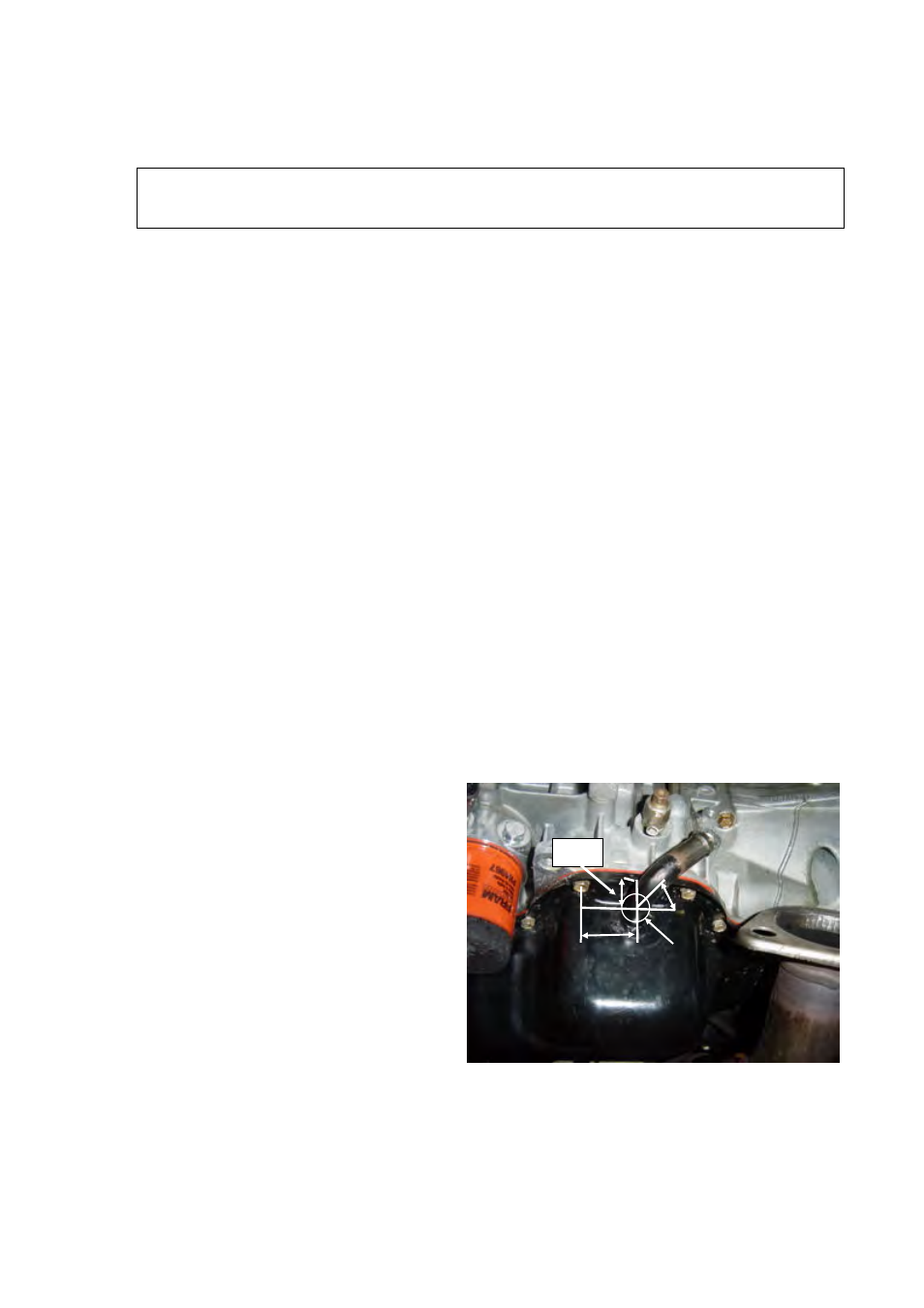

2. Use the diagram to the right for welding
the oil return pipe to the oil pan.
3. Mark the oil pan to drill out for the
16mm hole.
4. Install the oil return pipe and weld
the pipe to the oil pan as the diagram
shows.
5. Clean the welded area and paint to
prevent rusting.
6. Reinstall the oil pan on to the engine.
(Parts used #22.)
45 45 45 45 ° ° ° °
30mm 30mm 30mm 30mm
20mm 20mm 20mm 20mm
16 16 16 16 φ φ φ φ
