cuum line Installation

line Installation

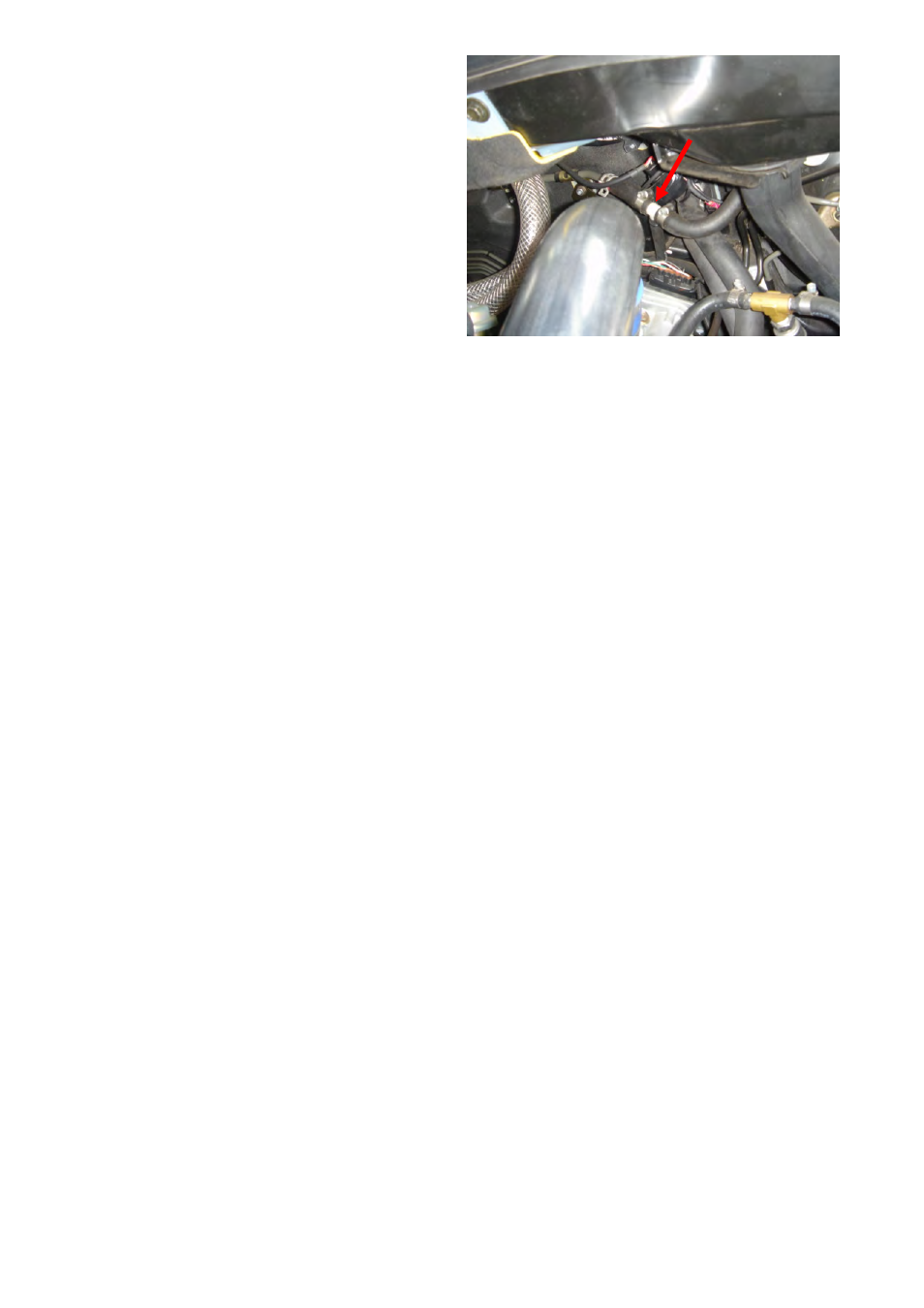

Cut the brake booster vacuum hose by

the intake manifold and install the

3-way fitting. Connect the 5φ side to

the actuator with the provided 5φ

hose.

*Secure all the vacuum hoses

with zip ties to prevent the hose

from disconnecting.

(Parts used #23,45,46)

3-13 Starting the Engine

1. Refill the engine oil to factory spec.

2. Check all the hoses and wires connection, then reconnect the negative side of the

battery.

3. Turn the ignition to “ON” position 2-3 times to get fuel pressure. Then, check the

injectors and the fuel rail for any fuel leaks.

* Repair any fuel leaks before starting the engine. Starting the engine with a

fuel leak can cause fire in the engine compartment and can be very

dangerous.

4. Remove the ECM fuse and crank the engine to get oil pressure to the turbo. (Until

the oil light on the dash turns off) Check for any oil leaks, then reinstall the fuse and

start the engine.

5. While idling, check for any oil, coolant, or air leaks.

6. After inspection, reinstall the under cover and other stock parts that was removed.

This completes the Turbo Kit installation.
