3-8 Intercooler Core Installation

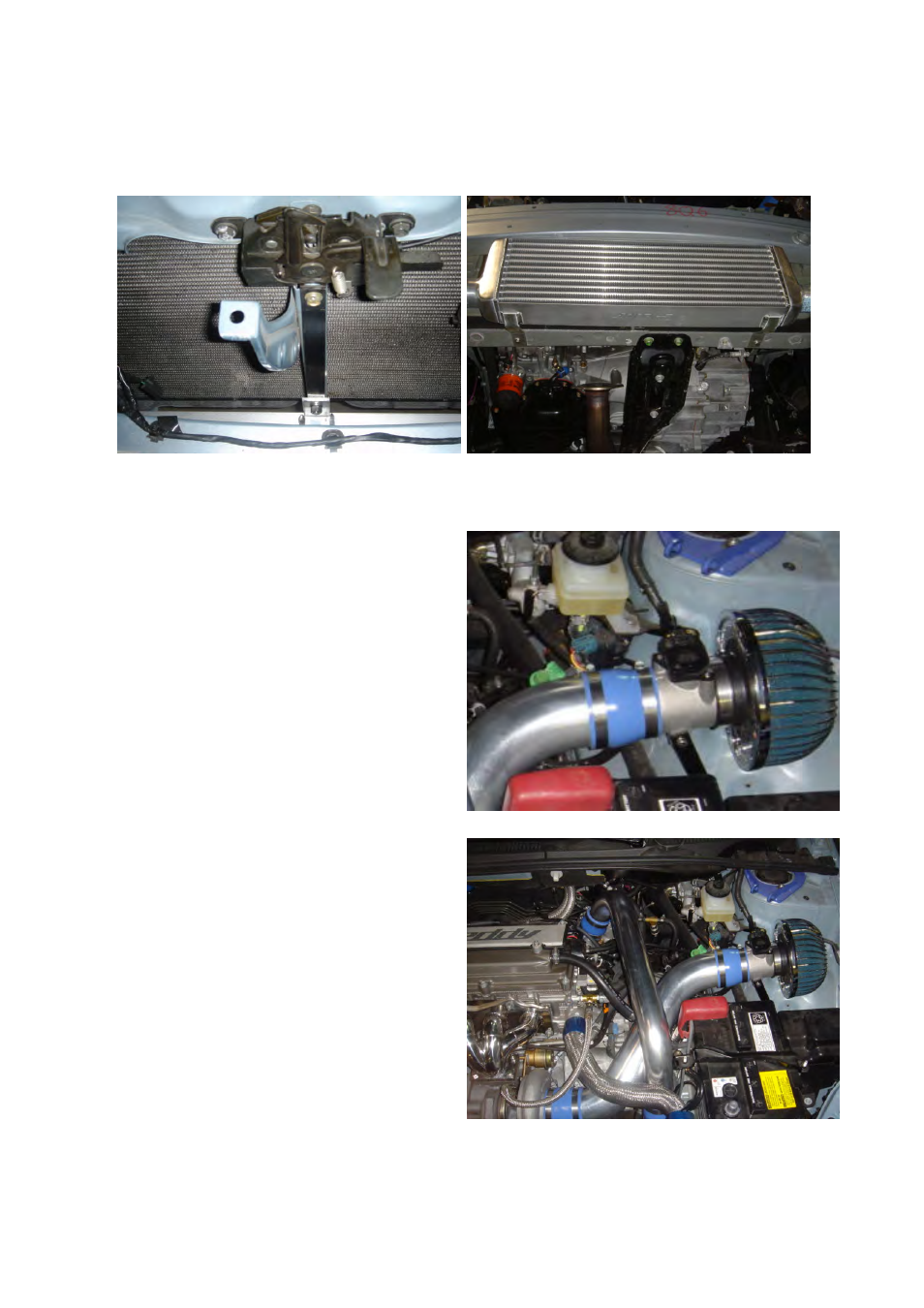

Mount the intercooler core as shown. Secure the top bracket to the hood latch

assembly and the bottom bracket to the sub-frame.

(Parts Used #5, 48, 54)

3-9 Suction Pipe Installation

1. Remove the Airflow Sensor from the

stock air box and install onto provided

Airinx adapter. Take caution to install in

the proper direction. Use stock bolts.

(Parts used #12)

2. Install the Airinx adapter on to the

Airinx Air filter.

(Parts used #12,13,14)

3. Install the S-1 pipe to the turbo inlet

and the Airinx assembly to the S-1 pipe

as shown.

(Parts used #6,28,31,37,38)

4. .Connect the blow by tube from the

valve cover to the S-1 pipe with the

provided 16φ hose and clamps

(Parts used #24, 33)
