GM Historic

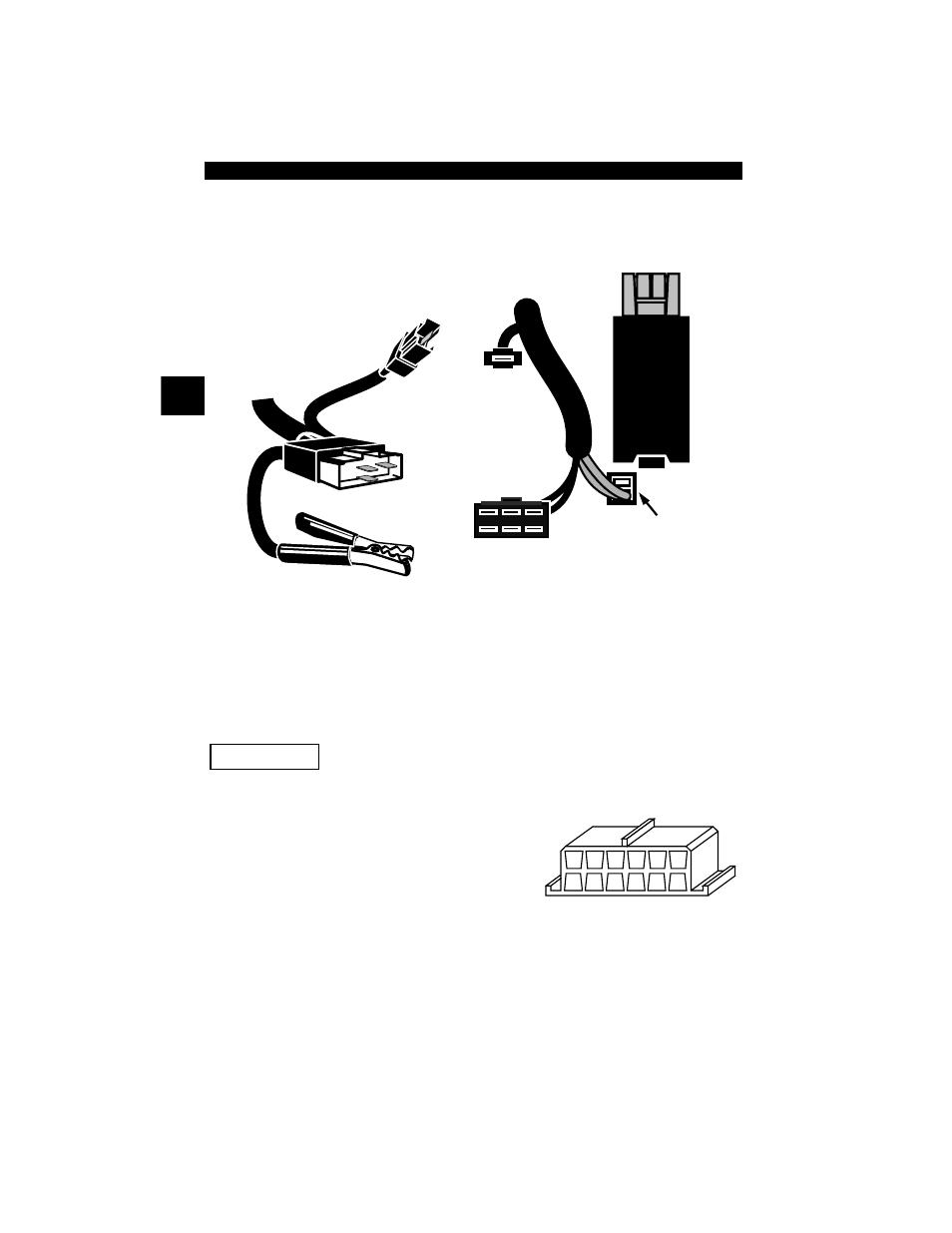

Prior to1996, most GM vehicles used the 12-pin Assembly Line Diagnostic Link
(ALDL) DLC. The GM ALDL cable kit includes the ALDL adapter and cigarette
lighter power cable. This adapter cable is included with the scan tool. In 1994
and 1995, certain GM vehicles use the J1962 (OBD II) DLC, but are not OBD
II compliant. Refer to “Appendix A - Data Link Connectors".
Use the Battery Power cable to provide 12V to the tool.
The ALDL DLCs are usually located under
the dashboard on the driver’s side.
On Corvettes & Fieros, the DLC may be
located in the center console behind the
ashtray. Refer to vehicle service manual for
exact location. It may be in full view, or it
may be recessed behind a panel. An
opening in the panel should allow access to the recessed connector.
Chrysler Historic
Prior to 1996, most Chrysler vehicles used either the SCI or LH DLC. Refer to
“Appendix A - Data Link Connectors" for DLC type and location. The SCI
adapter cable is included with the scan tool. The LH adapter cable (P/N 9605)
can be purchased from your dealer.
