Getting Started
2 – 6 • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
2
MECS
MECS vehicles (1988 –1995) use either a 6-pin (with pigtail) or a 17-pin DLC.
Use the MECS 6-pin adapter cable kit (P/N 9603) for both configurations. The
MECS adapter cable kit includes jumper wires to connect to the MECS 17-pin
DLC. The MECS adapter cable kit is not included with this tool. It is available

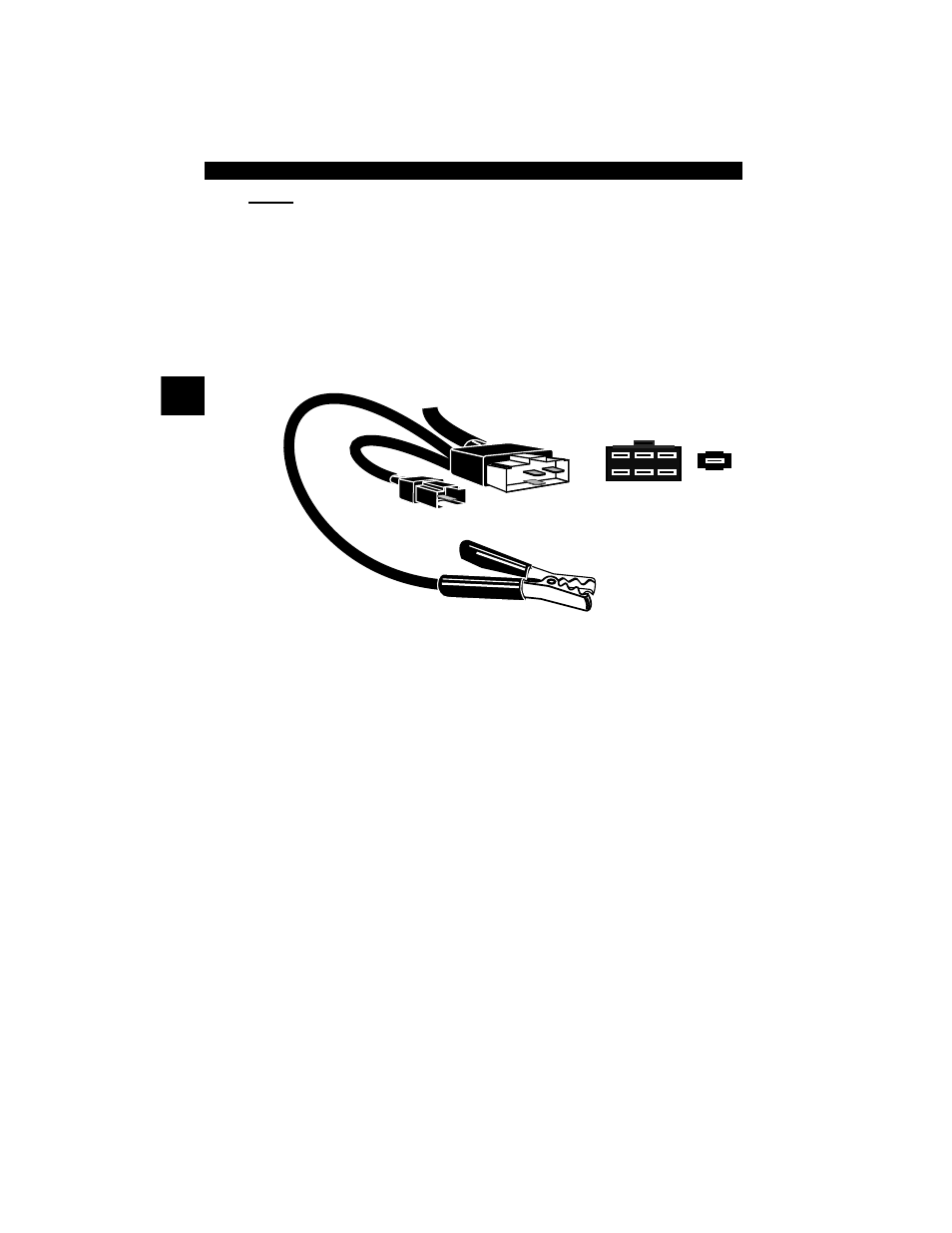

through your dealer. Use the following diagrams to connect the adapter cable.
6-Pin MECS
STI Pigtail
4 5 6
1 2 3
To Scan
Tool
6-Pin MECS
Clip to good
Vehicle ground
Cable Adapter Vehicle DLC
6-Pin MECS
P igtail
P/N 9603
