3.0— Setting the Nitrous Power Ramp
Please refer to the following three sections for detailed information about Setting the
Start percent and Build Time. These settings determine how aggressive the Nitrous Power is
applied. There is an example Nitrous Power Ramp chart that shows how the Settings are ap-
plied by the controller.
3.1—Setting the Start Percent
Use the Nitrous Start Percent switch (left one) to select the desired amount of Nitrous
Power. The range is 20% to 50 in 2% increments. Just set the Start Percent switch to the de-
sired amount. The switch position will be read when power is applied to the controller. If the
switch position is changed while the controller is on and/or activated the new setting will be ig-
nored until the next time the controller is turned on.
3.2—Setting the Build Time
Use the Build Time in Seconds switch (right one) to select the desired amount of Time it
takes for the controller to go from the Start Percent to Full Power. The range is 0.0(no build
time, instant full power) to 8.0 in 0.5 second increments. Just set the Build Time switch to the
desired time to full power. The switch position will be read when power is applied to the con-
troller. If the switch position is changed while the controller is on and/or activated the new set-
ting will be ignored until the next time the controller is turned on.

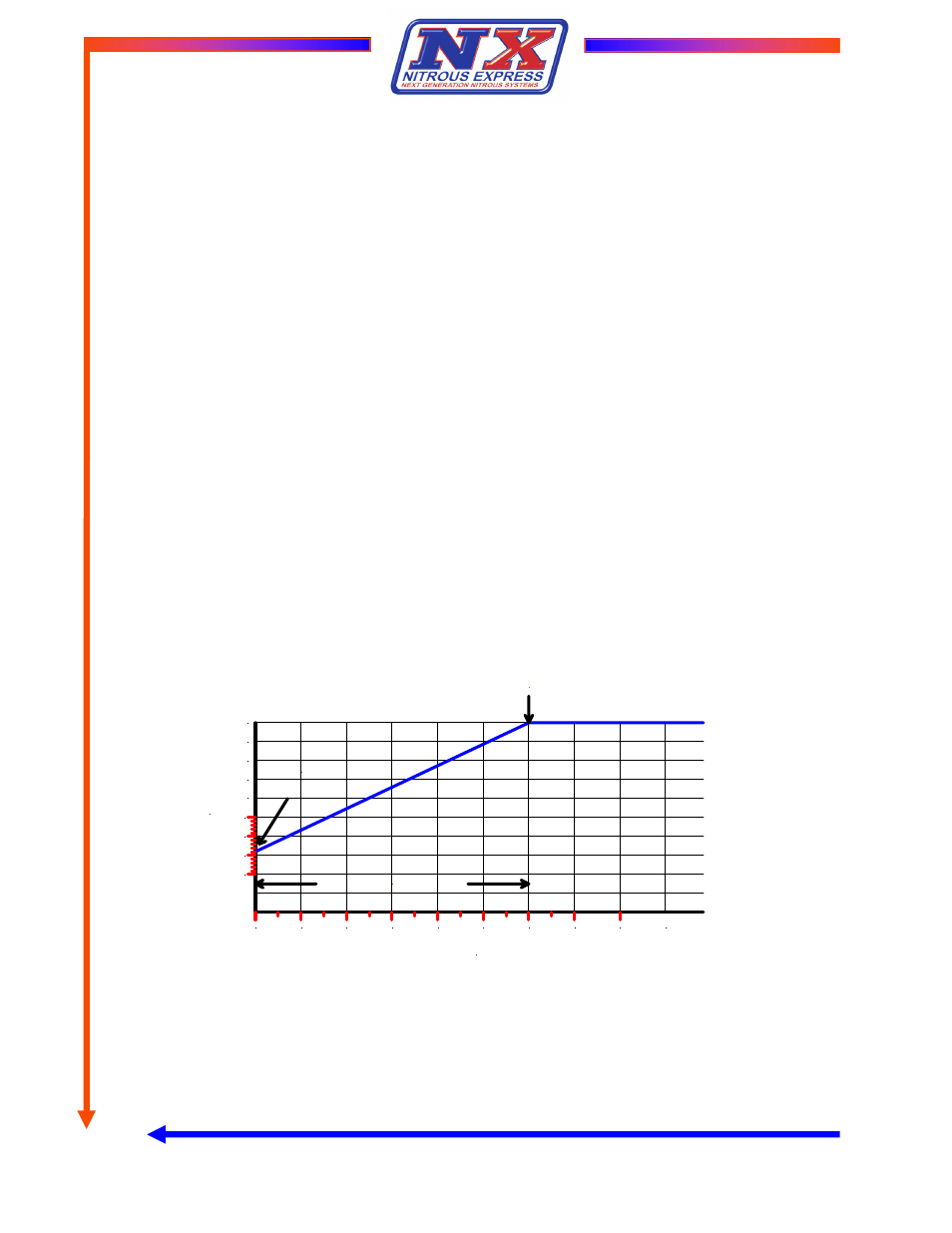

3.3—Example Nitrous Power Graph
20
30
40
50
60
70
PE
RCE
NT
O
F NI
T
R
O
U
S
0.000 1.000 2.000 3.000 4.000 5.000 6.000 7.000 8.000 9.000
80
TIME IN SECONDS
90
100
Build Time in Seconds
Full Power
Nitrous
Start
Percentage
Range of Settings for NX #15835 are displayed in Red.
Settings for example graph would be,
Start Percent set at 32 percent
Build Time set at 6.0 seconds
