Nitrous Express UNIVERSAL CONSOLE SWITCH PANEL (15896) User Manual
Nitrous Express For the car
UNIVERSAL CONSOLE SWITCH PANEL
PN 15896
The switch panel consists of:
1-arming switch module and bottle heater switch module
1-purge momentary “on” switch module
1-remote bottle opener “on-on” switch module
10 ft of Blue, Black, Red, and Yellow
12 female spade terminals, 1 Yellow Ring, 1 Blue Ring, 5 Red Butt terminals

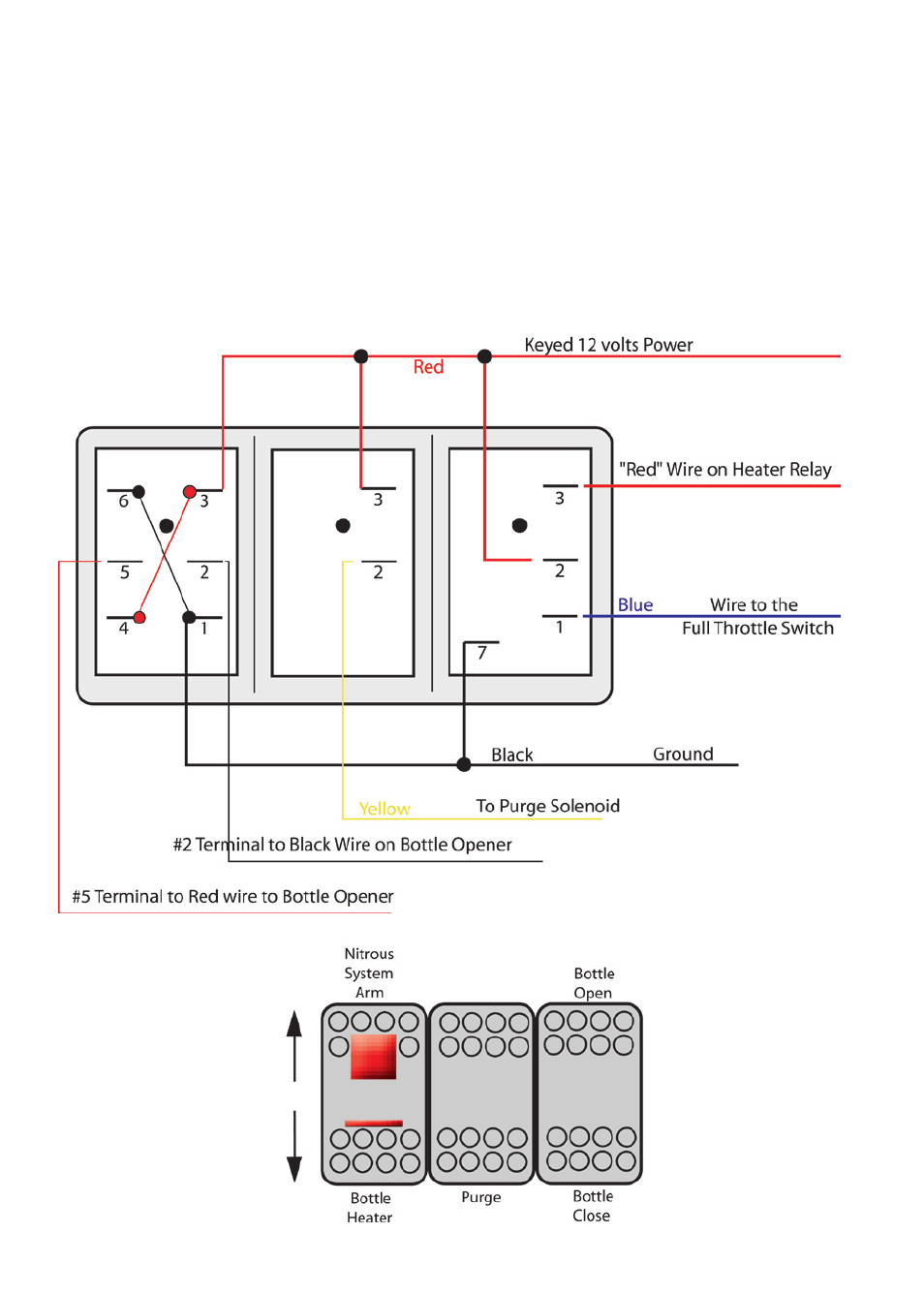

Following the diagram below, connect each switch as shown. Test each circuit to insure proper function before
the switch panel is permanently installed.
