WIRING INSTRUCTIONS

For cars with air conditioning: (Diagram B)
4.

Take one of the factory plugs and clip the wires at
the attachment point to the factory fan. Remove
the two to one bullet connectors from the FAL fan
unit. Isolate a black and red set of wires that go to
one motor on the FAL unit and clip off the bullet
connectors.

Strip about 1/2” of insulation from the four wires.
Using the supplied butt connectors, connect the
blue wire from the factory wires to the colored wire
from the FAL fans. Connect the black wire from the
factory plug to the black wire on the FAL fan.
Secure the wires so they won’t interfere with
rotation of fans or other engine components.
Repeat steps 4 and 5 for the other fan and factory
plug.

For cars without air conditioning: (Diagram C)
4.

Locate the factory plug for the electric fans. Clip
the black and blue wires that go to the electric fans.
Strip about 1/2” of insulation from the wire and
attach bullet connectors to these wires.

Insert the bullet connector that contains the blue
wire into the two to one connector on the FAL fan
unit that has both colored motor wires. Insert the
bullet connector with black wire into the two to one
bullet connector on the FAL fan unit that has both
black motor wires. Secure the wires so they won’t
interfere with rotation of fans or other engine
components.

The Flex-a-lite Limited Warranty
Flex-a-lite Consolidated, 7213-45th St. Ct. E., Fife, WA 98424, Telephone No. 253-922-2700, warrants to the original purchasing
user, that all Flex-a-lite products to be free of defects in material and workmanship for a period of 365 days (1 year) from date of
purchase. Flex-a-lite products failing within 365 days (1 year) from date of purchase may be returned to the factory through the
point of purchase, transportation charges prepaid. If, on inspection, cause of failure is determined to be defective material or
workmanship and not by misuse, accidental or improper installation, Flex-a-lite will replace the product free of charge, transpor-
tation prepaid. Flex-a-lite will not be liable for incidental, progressive or consequential damages. Some states do not allow the
exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This
warranty gives you specific legal rights and you may have other rights, which vary from state to state. The Flex-a-lite warranty is in
compliance with the Magnuson-Moss Warranty Act of 1975.

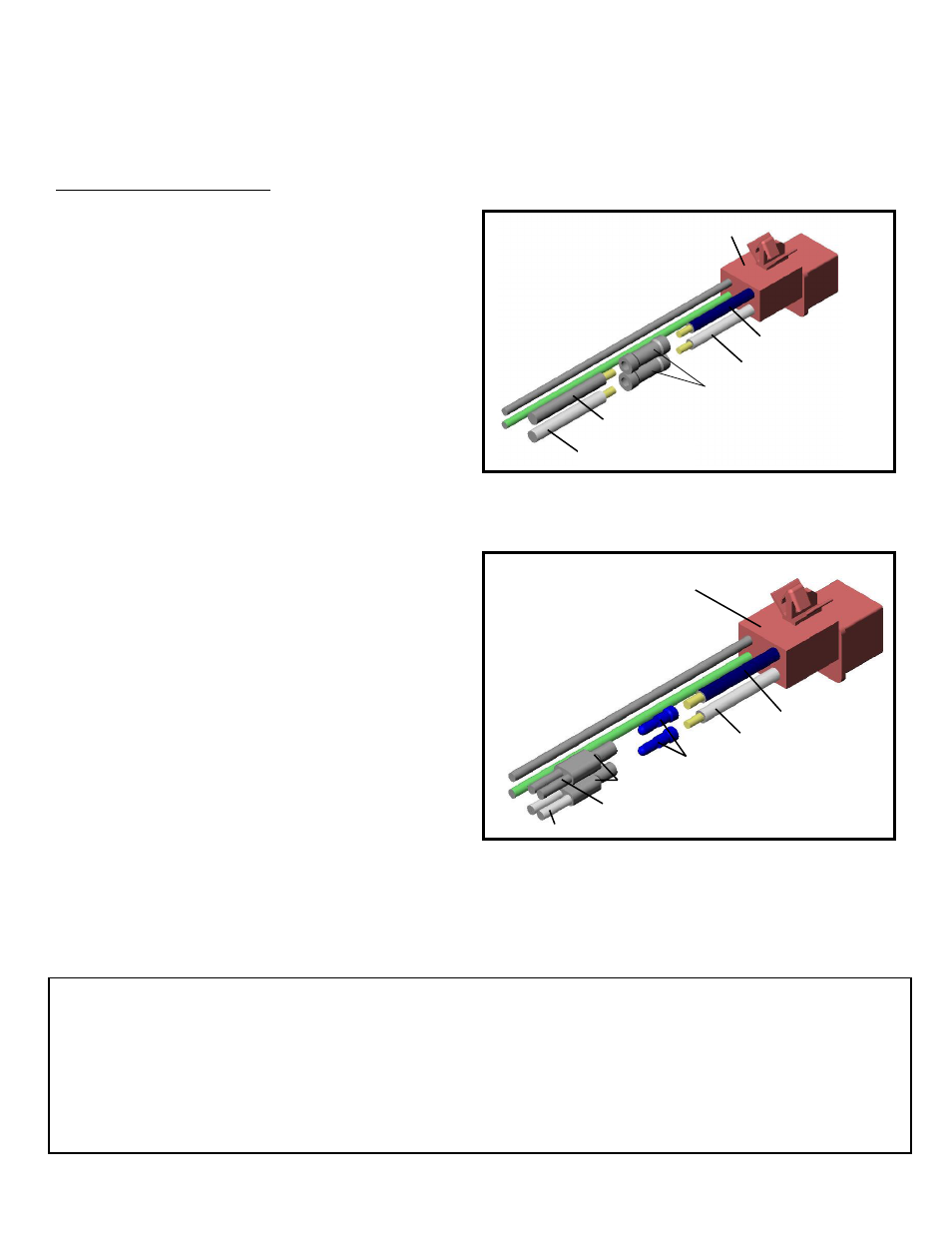

Diagram B

rev. 10-06-08 part no. 99749 Page 2 of 2

Diagram C

FactoryBlack Wire

Factory Blue Wire

Butt Connectors

Factory Plug

Repeat for both

plugs

Factory Plug

Two to One Connectors

Bullet Connectors

Blue Wire

Black Wire

Note: Wires shown in both diagrams are not to length

Black FAL Wires

Red FAL Wires

Black FAL Wire

Red FAL Wire

Colored Wires
