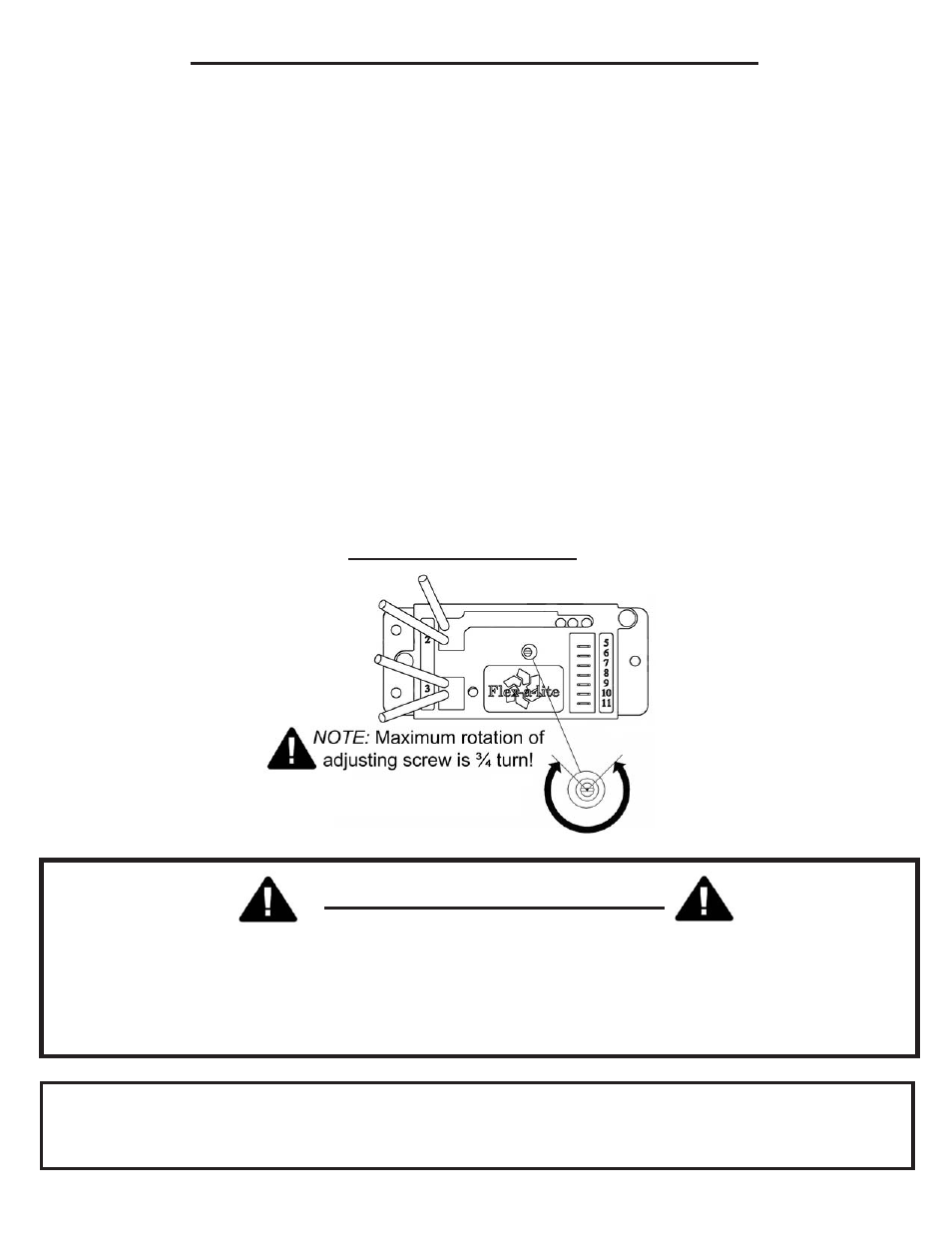

Adjustment Limit
Initial Start-up and Adjustment Procedures
Turn ignition on. After 6 seconds, LED #L4 should light up. If not, check to make sure that there is 12 volts at 1.
terminal #9 on the Fan Motor Control. The delay is to allow the starter to start the vehicle without the fans drawing
any power.
With the engine running, engage the A/C. The fans should come on and cycle with the A/C clutch. LED’s #L1, 2.
L3 and L4 should be lit when the fans are running. If they do not turn on, verify that the A/C clutch is engaged
and make sure you have a positive signal when the clutch is engaged at terminal #8 on the Fan Motor Control.
Shut off A/C and let engine continue to idle, or drive the vehicle a short distance to bring the engine to operating
temperature (monitor the vehicle’s temperature gauge).
Verify that operating temperature has been reached by feeling the upper radiator hose. Hot water should be 3.
flowing through the hose into the radiator. If the fans have not cycled on yet, slowly adjust the screw on the Fan
Motor Control until the fans cycle on. Turning the screw further in this direction will keep the engine at a lower
temperature, and turning in the opposite direction will keep the engine at a higher temperature.
NOTE: THE TOTAL MOVEMENT OF THE ADJUSTMENT SCREW IS ABOUT 3/4 OF A TURN. TURNING THE
SCREW BEYOND THE LIMITS WILL DAMAGE THE UNIT!
Once the desired temperature is set, let the engine continue to idle and make sure the fans will cycle to maintain
desired temperature. When the fans are running, LED’s #L1 and L4 should be lit.
Disconnect the VSC when charging your vehicle’s battery, or batteries, from an exterior source.
If the vehicle requires a jump start or remote battery charger to start the vehicle, the VSC may be
damaged by a power surge not normally experienced by the vehicle’s electrical system.
We recommend disconnecting both positive and negative leads to the controller prior to jump starting or
charging the vehicles electrical system.
Electrical Surge Warning:
The Flex-a-lite Limited Warranty
Flex-a-lite consolidated, 7213-45th St. Ct. E., Fife, WA 98242, Telephone No. 253-922-2700, warrants to the original purchasing user, that all Flex-a-lite products to be free of defects in material and work-
manship for a period of 365 days (1 year) from date of purchase. Flex-a-lite products failing within 365 days (1 year) from date of purchased may be returned to the factory throught the point of purchase,
transportation charges prepaid. If, on inspection, cause of failure is determined to be defective material or workmanship and not by misuse, accidental or improper installation, Flex-a-lite will replace the product
free of charge, transportation prepaid. Flex-a-lite will not be liable for incidental, progressive or consequential damages. Some states do not allow the exlusion or limitation of incedental or consequential
damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights and you may have other rights, which vary from state to state. The Flex-a-lite warranty is in
compliance with the Magnuson-Moss Warranty Act of 1975.
Rev. 05-22-13 Pt. #99814 Page 1of 2
Turning screw counterclockwise = cooler temp.
Turning screw clockwise = warmer temp.
