Assemble the cooler / bracket assembly utilizing hex bolts ¼-20 x 2” (4ea), gator clips (8ea), plastic spacer 6.
(4ea), ¼” flat washer (8ea), cooler mounting bracket (2ea) and nylock nut ¼-20 (4ea). Attach brackets to
cooler as shown below.
Rev. 09-20-13 98291 Page 2 of 3
Installation instructions continued from previous page

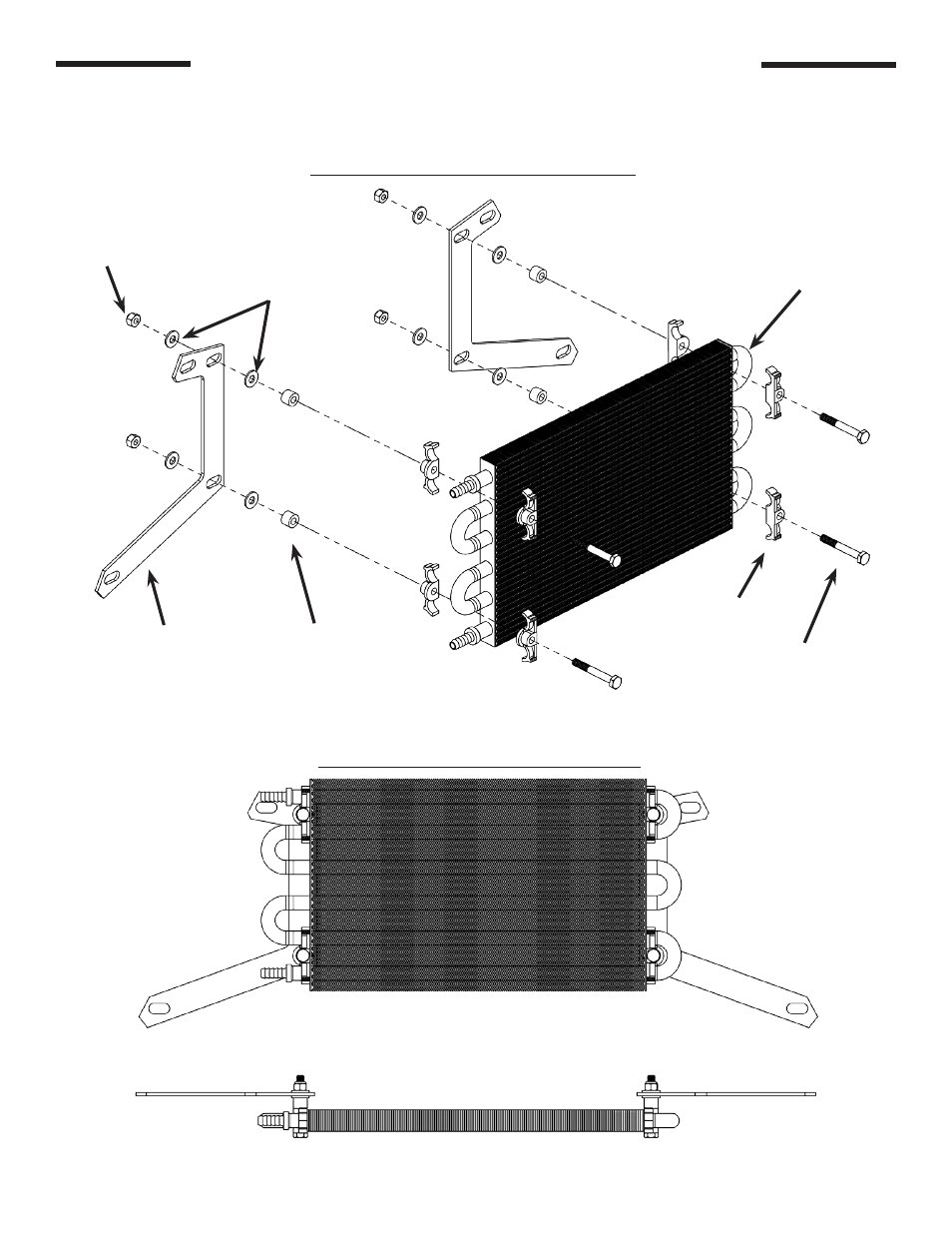

Top view of assembly
“Complete Cooler / Bracket assembly”
“Cooler / Bracket Exploded Assembly”
Bolt - hex HD
1/4-20 x 2” (4ea)
Gator Clip
(8ea)
Nut - nylock
1/4-20 (4ea)
Extruded channel
(2ea)
Transmission
cooler
(1ea)
Plastic Spacer
(4ea)
1/4” Flat Washer
(8ea)
Front view of assembly
(4118GMT Cooler Shown)
