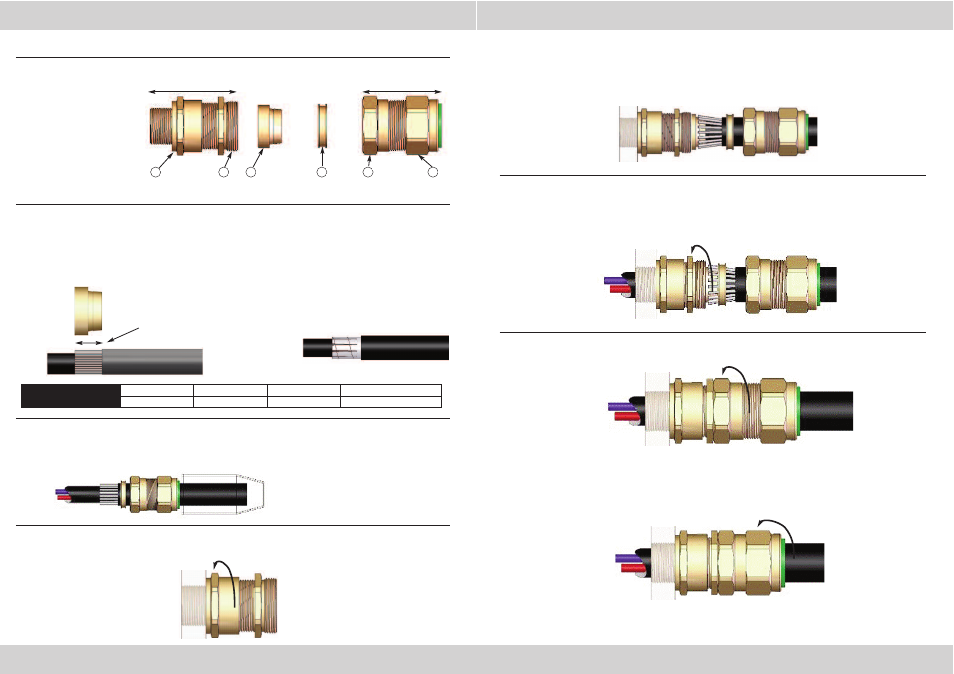

INSTALLATION INSTRUCTIONS FOR CMP CABLE GLAND TYPES “E”
DUBAI • HOUSTON • NEWCASTLE • SINGAPORE • SHANGHAI • PUSAN • PERTH www.cmp-products.com
www.cmp-products.com
PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE BEGINNING THE INSTALLATION
1. If required fit shroud over the cable outer sheath;
Prepare the cable by stripping back the cable outer sheath and armour to suit the equipment geometry.
Expose the armour by stripping back the outer sheath further using the table below as a guide.
If applicable remove any tapes or wrappings to expose cable inner sheath.
2. Separate the gland into two sub-assemblies “A & B”. Ensuring that the Outer Seal Nut (6) is relaxed,
pass sub-assembly “B” over the cable outer sheath and armour followed by the “AnyWay” clamping ring
(4).
Note: On maximum size cables the clamping
ring may only pass over the armour.
3. Ensure that the inner seal is relaxed by slackening the Main Item (2). Secure sub-assembly “A” into
the equipment either by screwing the Entry Item (1) into a threaded hole or by securing it in a clearance
hole using a locknut as applicable.
4. Locate the Armour Cone (3) into its recess in the Main Item (2). (N.B. For E1FU and E2FU
variants, make sure the correct side of the cone is outermost - grooved for braid/tape armour and
stepped for SWA). Pass the cable through sub-assembly “A” until the armour engaged with the
cone. Spread the armour evenly around the cone.
5. While continuing to push the cable forward to maintain contact between the armour and the
cone, tighten the Main Item (2) by hand until heavy resistance is felt. (This is when the inner seal
makes contact with the cable inner sheath). Tighten a further full turn using a spanner.
NOTE: The earthing device on E2* type glands will automatically engage the lead sheath.
6. Hold the Main Item (2) with a spanner and tighten sub-assembly “B” onto sub-assembly “A”
using a spanner until all available threads are used.
7. Tighten the Outer Seal Nut (6) until it comes to an effective stop. This will occur when:-
A) The Outer Seal Nut (6) has clearly engaged the cable and cannot be further tightened
without the use of excessive force by the installer.
B) The Outer Seal Nut (6) is metal to metal with the body of the gland (5).
3 2 1
1. Entry Component
2. Main Item
3. Detachable Armour Cone
4. AnyWay Clamping Ring
5. Body
6. Outer Seal Nut
4 6
Sub Assembly A Sub Assembly B
5
CABLE GLAND COMPONENTS - It is not necessary to dismantled the cable gland any further than illustrated below
CABLE GLAND SIZE 20S/16, 20S, 20 25S, 25, 32, 40 50S, 50, 63S, 63 75S, 75, 90, 100, 115, 130
CABLE STRIP LENGTH “L” 12mm 15mm 18mm 20mm
Tape armour should be further
prepared by cutting the tape
into strips as shown below: Cable Strip
Length “L”
