UPPER CONTROL ARM AND MOUNT (CONT.)

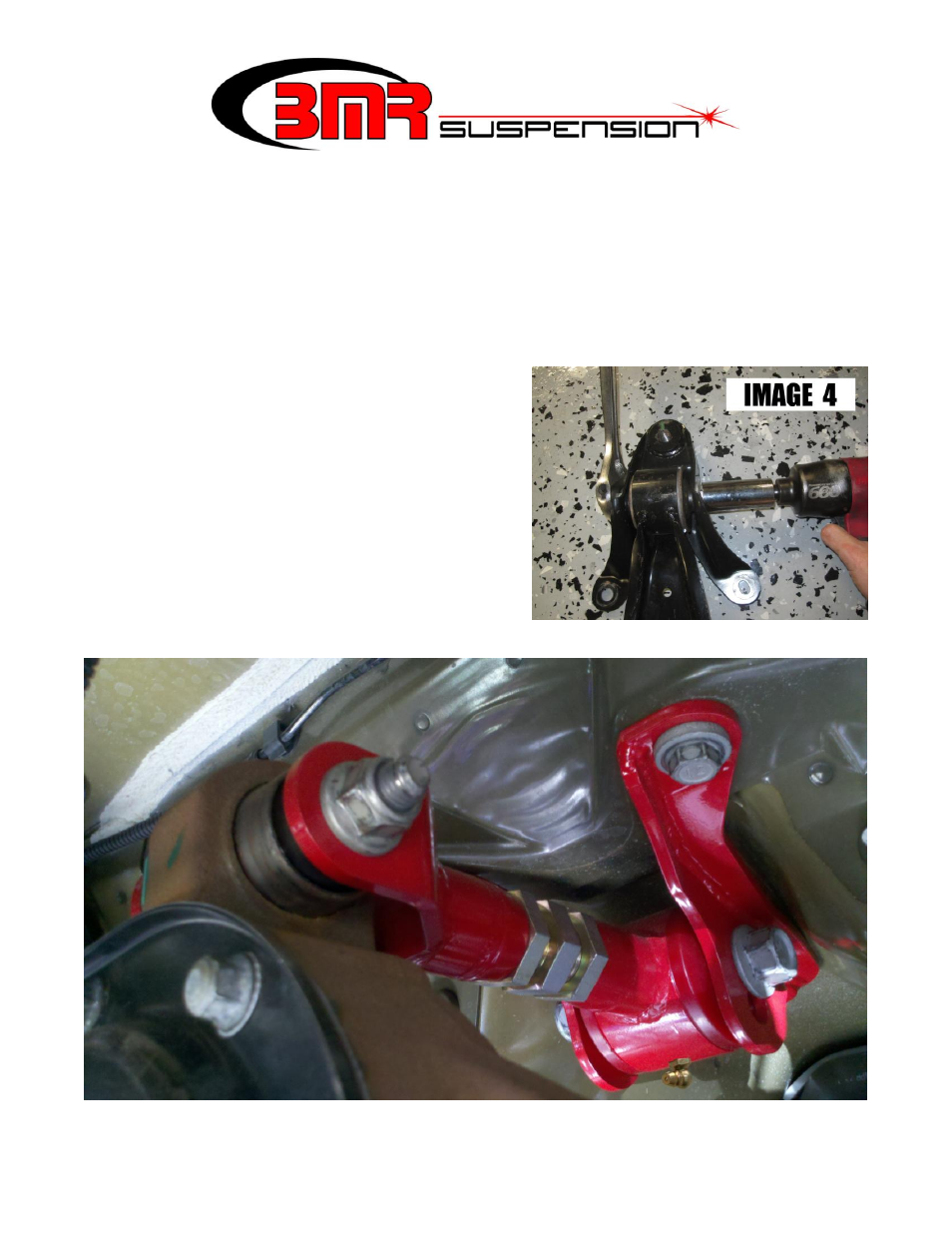

7. Using a 25mm wrench or socket for the bolt head and a 27mm socket for the nut, remove the front control

arm bolt as shown in IMAGE 4.

8. If installing an adjustable control arm, adjust the control arm to the approximate length of the OE arm

before proceeding.

9. Lube the outside surfaces of the front bushing on the BMR control arm bushing. Mount the BMR upper

control arm into the factory mount or the BMR UCM002 mount and re-assemble with the provided new
bolt. Tighten to 200 ft/lbs.

10. Re-install the assembly into the car and insert the rear

upper mounting bolts. Tighten to 85 ft/lbs.

11. Connect the rear of the BMR control arm to the upper

control arm bushing on the rear end. It may require
the axle to be rotated to allow the bolt to slide through.
Tighten bolt to 129 ft/lbs.

12. Using a grease gun, insert 4-5 pumps of grease into the

grease fitting.

13. Lower vehicle and insert the large bolt into the upper

mount inside the car. Tighten this bolt to 240 ft/lbs.

14. Re-install lower seat cushion.
