Chapter 3: Terminal Menu Operation and Structure
42 Express L768/L1.5 User Manual 61202192L1-1
Configuration/Security
The Security menu is used to set up the authentication parameters needed to
authenticate PPP connection. Also, the filter defines are placed under this
menu. Figure 3-7 shows the Security menu.

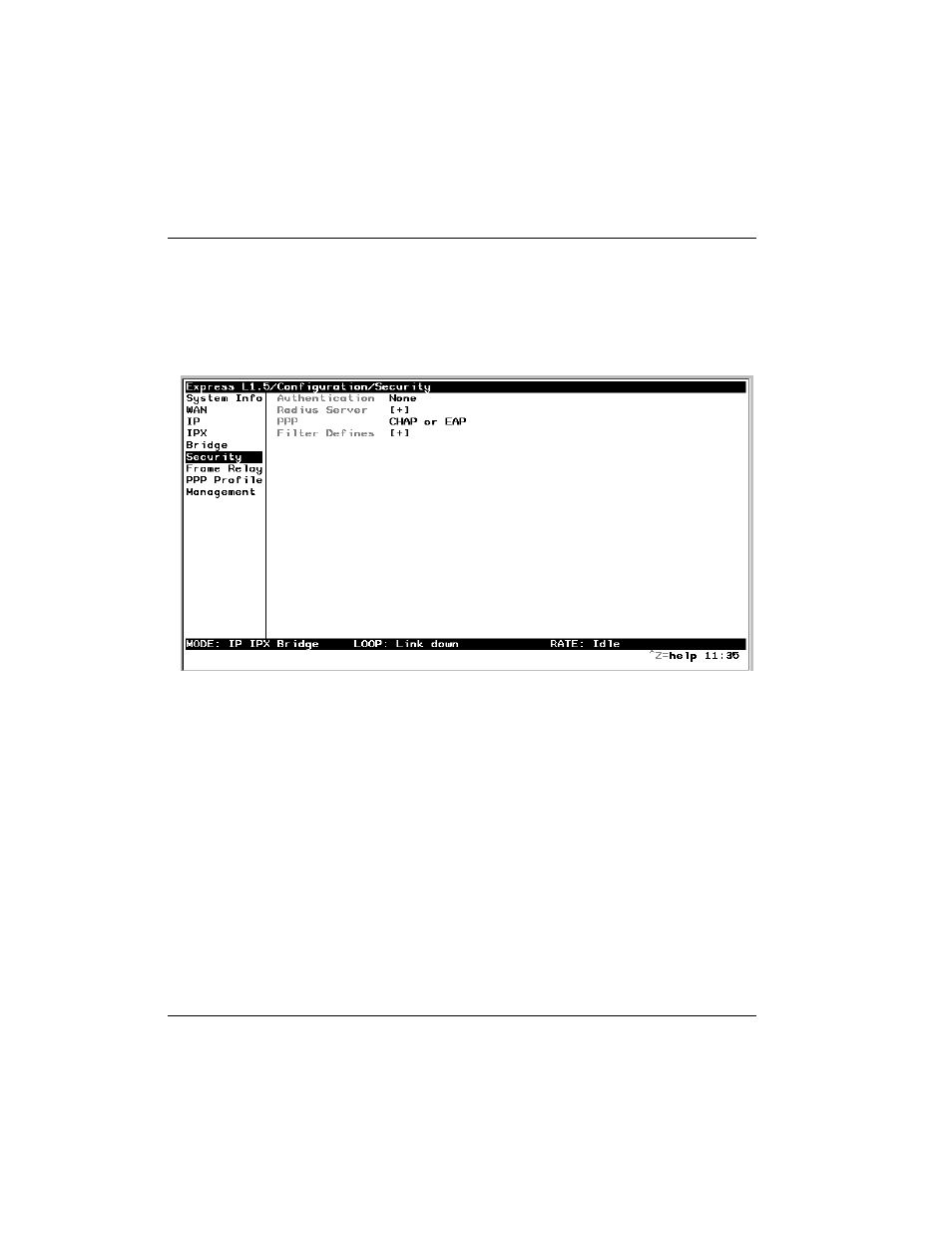

Figure 3-7
Configuration/Security Screen
Security/Authentication
Write security: 1; Read security: 2
The method used for authenticating the PPP peer is selected here. The possi-
ble values are:
None (def) - No attempt is made to authenticate the PPP peer.
Radius - The Express L768/L1.5 will act as a RADIUS client and
authenticate the PPP peer using the RADIUS server. The Radius
server parameters must be set up properly for this to work.
PPP Profile - The PPP profile is used to authenticate
the PPP peer.
See Configuration/PPP Profile on page 56 for more information
on authenticating.
