- 15 -
You will need the following tools and equipment (not included) to install the switch into an equipment rack:
• Flat head screwdriver
• Phillips head screwdriver
• Antistatic mat or foam
2.1.3 Power Requirements
The electrical outlet should be located near the switch and be easily accessible. It must also be properly grounded.
Make sure the power source adheres to the following guidelines:
• Power: Auto Switching 90-260 VAC
• Frequency range: 50/60 Hz
2.1.4 Environmental Requirements
The switch must be installed in a clean, dry, dust-free area with adequate air circulation to maintain the following
environmental limits:
• Operating Temperature: 0° to 40°C (32° to 104°F)
• Relative Humidity: 10% to 90% non-condensing
Avoid direct sunlight, heat sources, or areas with high levels of electromagnetic interference. Failure to observe these
limits may cause damage to the switch and void the warranty.
2.1.5 Cooling and Airflow
The IC35516 switches use internal fans for air-cooling. Do not restrict airflow by covering or obstructing air vents on
the sides of the switch.
2.2 Installation into an Equipment Rack
Important! Before continuing, disconnect all cables from the switch.

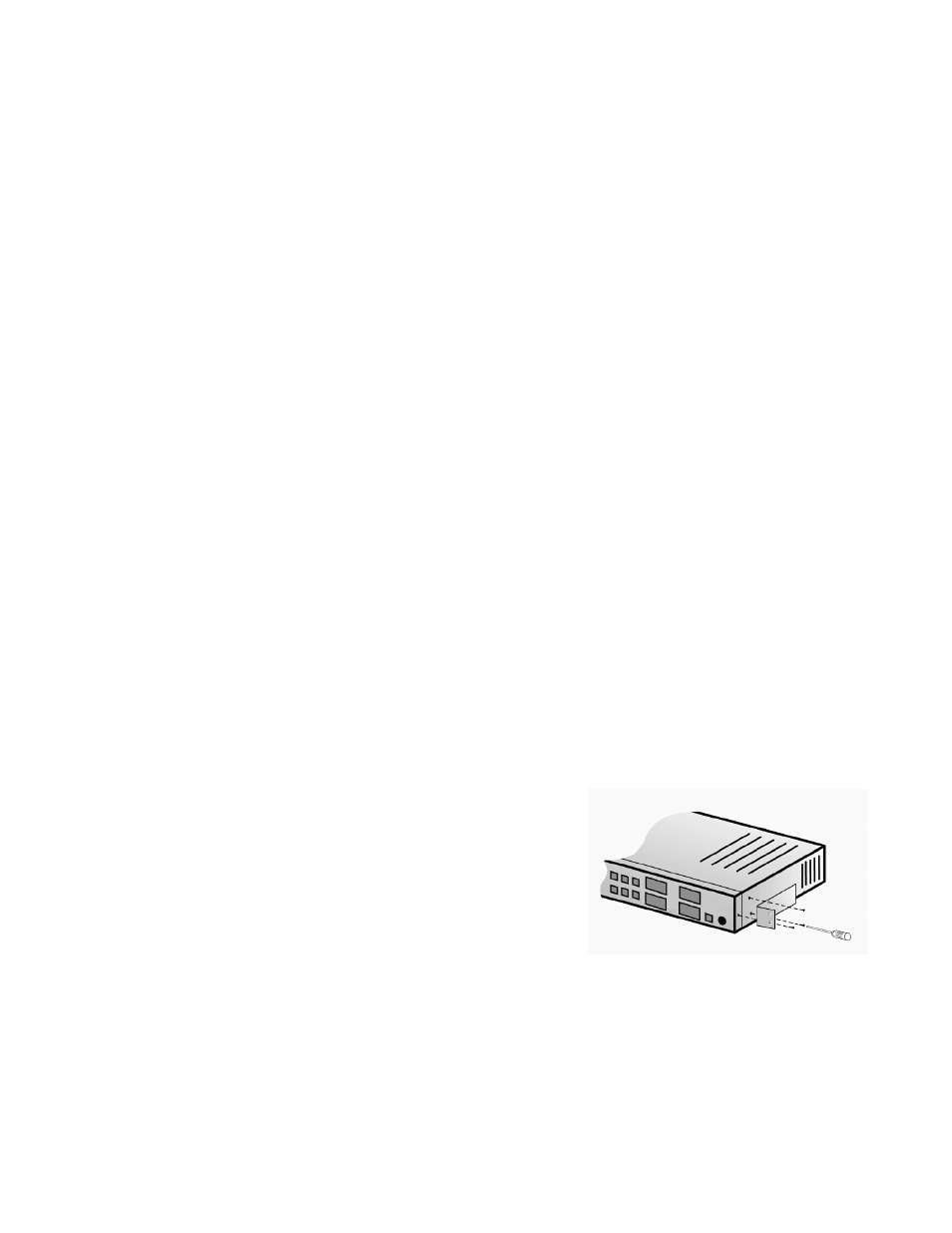

To mount the switch onto an equipment rack:
1. Place the switch on a flat, stable surface.
2. Locate a rack-mounting bracket (supplied) and place it over the
mounting holes on one side of the switch.
3. Use the screws (supplied) to secure the bracket (with a Phillips screwdriver).
4. Repeat the two previous steps on the other side of the switch.
5. Place the switch in the equipment rack.
