Installation Instructions
8 CONNECT ELECTRICAL
WARNING:
If house wiring is not 2-wire
with a ground wire, a ground must be provided by
the installer. When house wiring is aluminum, be
sure to use U.L. approved anti-oxidant compound
and aluminum-to-copper connectors.
ADVERTISSEMENT :
Si la maison n’est pas câblee avec deux fils et un
fil de terre, l’installateur doit installer un fil de terre.
Quand les fils sont en aluminium, il faut prendre soin
d’utiliser des connecteurs aluminium à cuivre avec
une pâte antioxydante approuvée par U.L.
‡ Remove junction box cover and knockout.
‡ Use a conduit connector to secure the conduit to
the junction box.
‡ Connect white leads to branch circuit white lead.
‡ Connect black leads to branch circuit black lead.
‡ Connect green/yellow leads to branch circuit
green lead or bare ground lead.
‡ Secure all connections with wire nuts on each
electrical connector.
‡ Push wires into junction box and replace cover.
Be sure wires are not pinched.
‡ Secure electrical panel cover with screws provided.

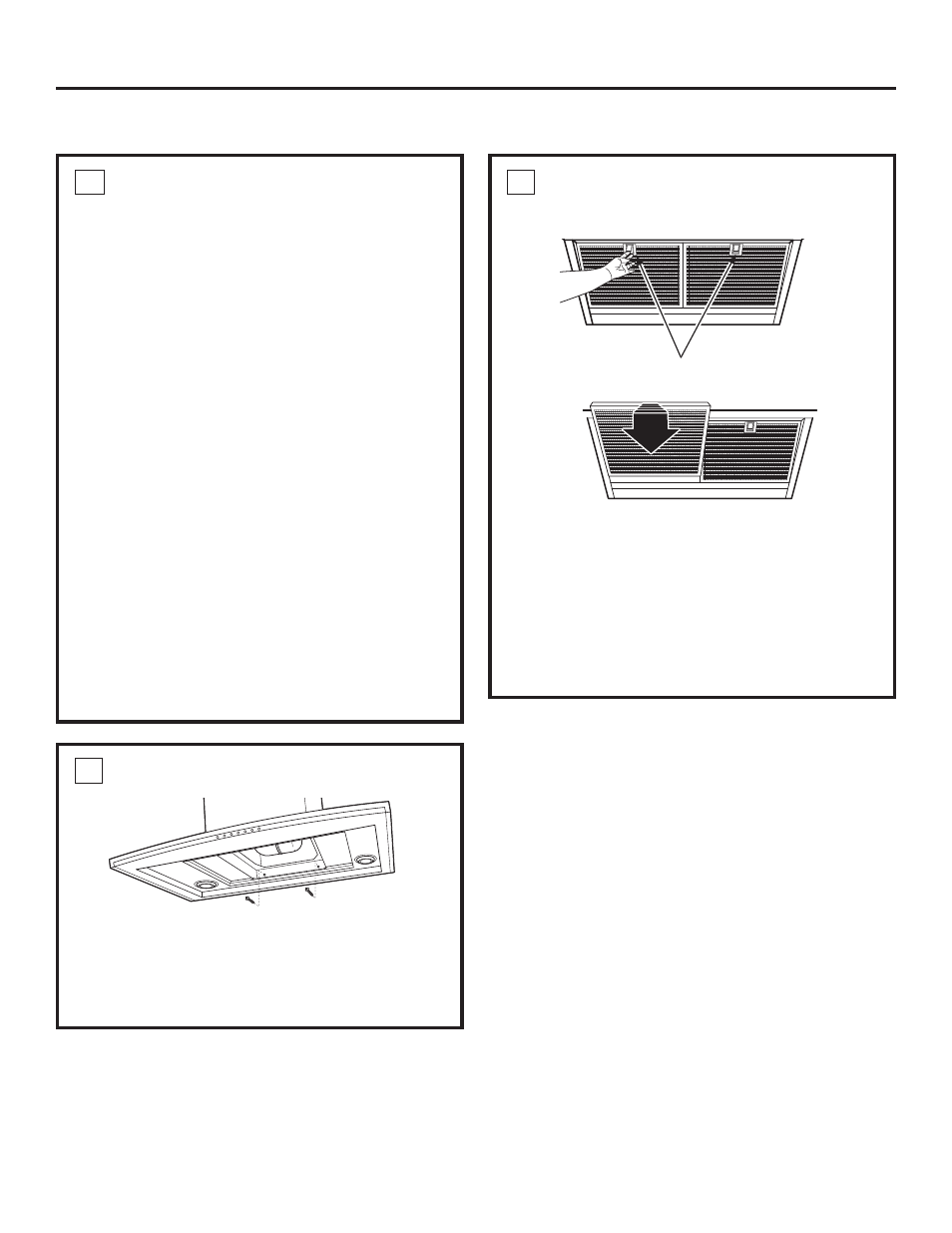

10 INSTALL FILTERS
‡ Remove protective film on the filters.
NOTE: It is not necessary to install the charcoal
filter in a vented installation.
‡ Tip the filter into the slots at the rear of the
opening. Lift the filter lock and pull forward until
the filter rests in the slots.
‡,QVWDOOERWKPHWDOJUHDVHILOWHUV
‡7RUHPRYHWKHILOWHUVSUHVVLQZDUGVRQWKHKDQGOH
and pull the filter downwards.
Filter Locks
9 INSTALL REAR MOUNTING SCREWS
‡3XOOWKHJODVVFDQRS\IRUZDUGWRDFFHVVDQG
install 2 wood screws or fasteners through the
bottom of the hood and into the wall.
Install 2 Wood Screws
UNDER-CABINET INSTALLATION
