19
Installation Instructions

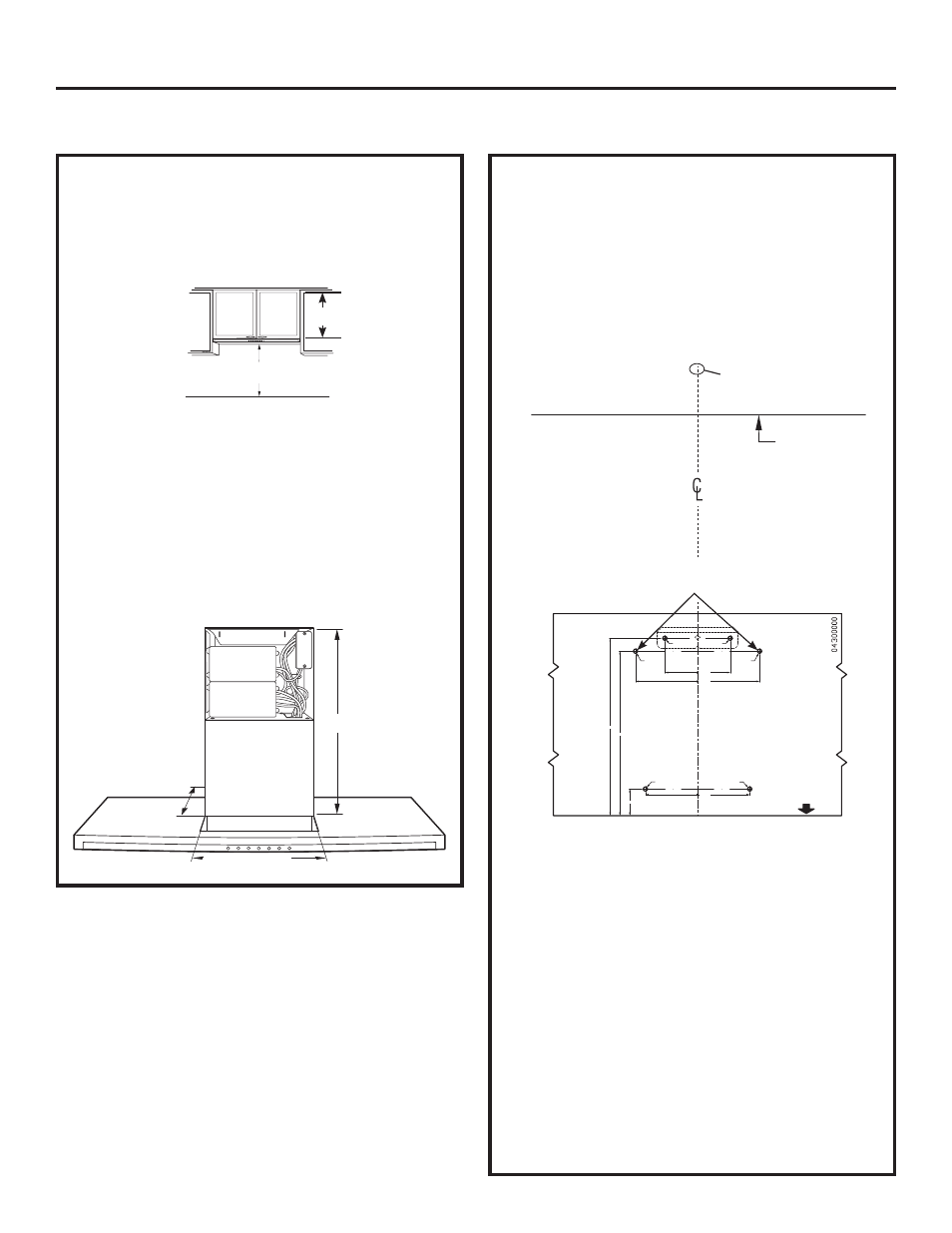

CABINET REQUIREMENTS
This hood may be installed beneath a wall-mounted
cabinet.
‡ If the cabinet has been installed, it must be removed
so that wall framing supports can be added.
The cabinet must be at least 20” high between the
bottom frame and the inside top. If the cabinet is not
20” from bottom to inside top, a custom cabinet or
modifications to a different size cabinet and/or soffit
may be required to accommodate the hood housing.
‡ The cabinet must be 36” wide and at least 12” deep.
‡ The cabinet must be firmly secured to wall studs or
the added framing support and capable of
supporting 100 pounds.
UNDER-CABINET INSTALLATION
DUCTWORK, WIRING
‡ Determine the exact location of the vent hood.
‡ Locate the Rear Wall Template packed with the
literature.
‡ Measure 36” from the floor to the top of the cooking
surface. Add the pre-determined hood installation
height. Mark that location.
‡ Use a level to draw a straight pencil line on the wall.
‡ Tape the template in position along the penciled line.
Check to be sure the template is level.
‡ Use the level to draw a line straight up, from the
centerline on the template to the ceiling.
‡ Measure 3-3/4” from the back wall to the centerline
of a 6-1/2” hole on the ceiling.
NOTE: If drywall is not present, add drywall thickness
to the 3-3/4” dimension.
HOUSE WIRING LOCATION:
‡ The junction box is located on the top right side of the
hood.
‡ Wiring should enter the back wall 20” to 26” above the
bottom of the hood, and within 4” of the right side of
the centerline. Wiring should enter at least 4” above
the right side of the frame.
19-1/2"
11-3/4"
11"
19-1/2”
11-3/4”
10-3/4”
24” Min.
20” Min.
REAR WALL TEMPLATE
CL
49-80271 JR 07-04
Drill 1/8" Pilot Holes Drill 1/8" Pilot Holes
Drill 1/8" Pilot Holes
Drill 1/8" Pilot Holes Drill 1/8" Pilot Holes
Drill 1/8" Pilot Holes
ALIGN BOTTOM EDGE WITH
PENCIL LINE INDICATING
BOTTOM OF THE HOOD.
5-1/16"
9-5/8"
8-1/8"
2-1/16"
13-3/4"
12-3/4"
Ceiling
3-3/4” centerline
to wall
Top frame mounting
screw locations
