JV347H – GE ® Deluxe Range Hood
Specification Revised 5/04
321450

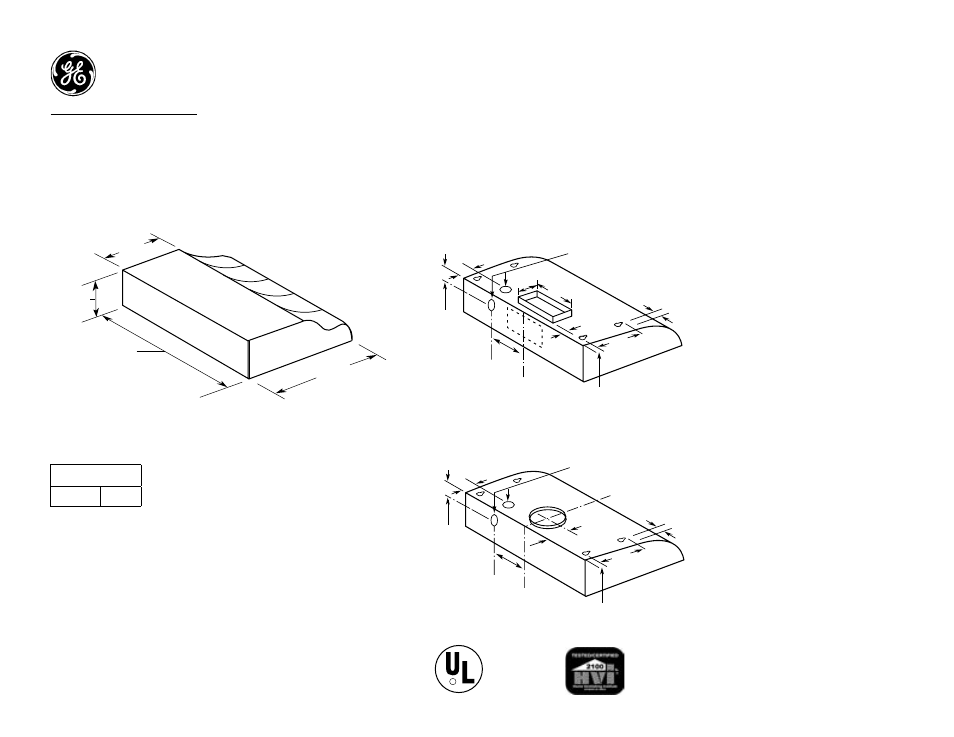

Dimensions (in inches)
5-1/2
29-7/8
17-1/2
12
1-3/8" Typ.
8-5/16" Typ.
Center line
of hood
1-1/4
1-1/4
Optional top power
supply connection
1-1/8" Typ.
7-3/4
10
3-1/4
1/2
Rear power
supply connection
1-3/8" Typ.
8-5/16" Typ.
Center line
of hood
1-1/4
1-1/4
Optional power
supply connection
1-1/8" Typ.
7-3/4
5-3/4
WB02X9381 replacement grease filter and WB02X10700 replacement
charcoal filter are available for additional cost. Call toll-free 800.626.2002.
JXHC1 Cord Kit: Allows a receptacle in the cabinet over the range to
accommodate either an over-the-range microwave oven or a standard hood.
Installation Information: Before installing, consult installation instructions,
packed with product, for current dimensional data.
Light bulb(s) not included.
Dimensions (in inches)
For answers to your Monogram, ® GE Profile ™ or
GE ® appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center ® service, 800.626.2000.
R
Listed by
Underwriters
Laboratories
Refer to this drawing for rectangular
exhaust option.
Exhaust outlet connects to 3-1/4" x 10"
rectangular duct. Vent top or rear.
Includes rectangular damper.
Refer to this drawing for round
exhaust option.
Exhaust outlet connects to 7" diameter
duct. Vent top only. Round damper
accessory. JXDA22, available at
additional cost.
Model JV347
1/2
10
3-1/4
5-3/4
Center
line of hood
1-1/4
1-1/4
Optional power
supply connection
1-1/8" Typ.
7-3/4
1-3/8" Typ.
8-1/4" Typ.
Center
line of hood
1-1/4
1-1/4
Optional power
supply connection
1-1/8" Typ.
7-3/4
1-3/8" Typ.
8-1/4" Typ.
Model JV347
1/2
10
3-1/4
5-3/4
Center
line of hood
1-1/4
1-1/4
Optional power
supply connection
1-1/8" Typ.
7-3/4
1-3/8" Typ.
8-1/4" Typ.
Center
line of hood
1-1/4
1-1/4
Optional power
supply connection
1-1/8" Typ.
7-3/4
1-3/8" Typ.
8-1/4" Typ.
Amp Rating
120V 2.5
