7 CONNECT ELECTRICAL
Verify that power is turned off at the source.
WARNING:
If house wiring is not 2-wire
with a ground wire, a ground must be provided by
the installer. When house wiring is aluminum, be sure
to
use U.L. approved anti-oxidant compound and
aluminum-to-copper connectors.
ADVERTISSEMENT :
Si la maison n’est pas câblee avec deux fils et un fil
de terre, l’installateur doit installer un fil de terre.
Quand les fils sont en aluminium, il faut prendre soin
d’utiliser des connecteurs aluminium à cuivre avec
une pâte antioxydante approuvée par U.L.
‡ Remove junction box cover and knockout.
‡ Use a conduit connector to secure the conduit to
the junction box.
‡ Connect white leads to branch circuit white lead.
‡ Connect black leads to branch circuit black lead.
‡ Connect green/yellow leads to branch circuit green
lead or bare ground lead.
‡ Secure all connections with wire nuts on each
electrical connector.
‡ Push wires into junction box and replace cover.
Be sure wires are not pinched.
‡ Secure electrical panel cover with original screws.

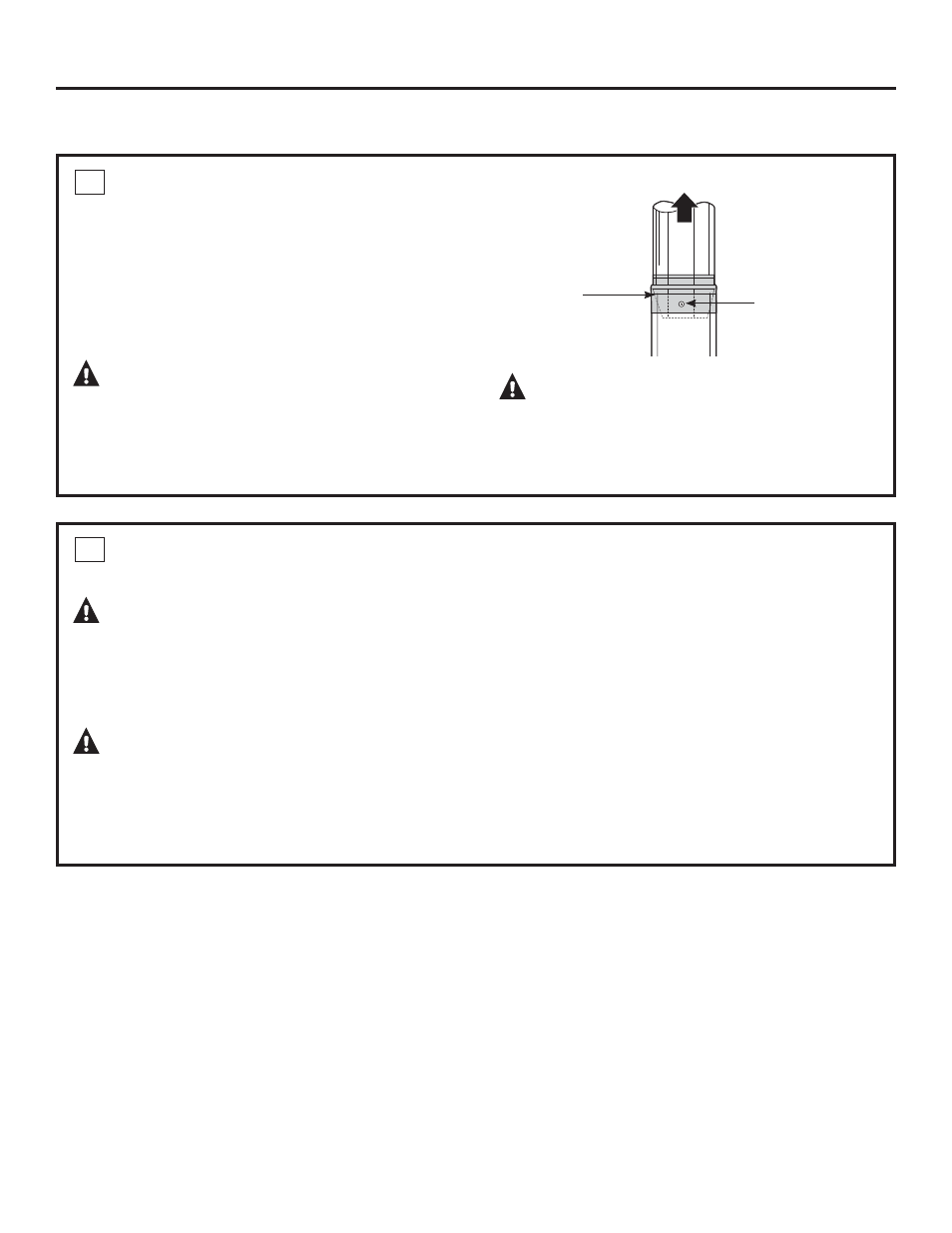

6 CONNECT DUCTWORK
‡ Install ductwork, making connections in direction of
airflow as illustrated.
‡ Push duct over the exhaust outlet and damper.
‡ Secure joints in ductwork with sheetmetal screws.
‡ Wrap all duct joints with duct tape for an airtight
seal.
‡ Use duct tape to seal the flange connections.
CAUTION:
Do not use sheet metal
screws at the hood flange connection. Doing so
will prevent proper damper operations. Seal
connection with tape only.
PRUDENCE :
Il ne faut pas utiliser de vis autoraurdeuses à la
connexion du collet de la hotte. Ceci empêcherait
le bon fonctionnement du registre. N’utiliser que du
ruban adhésif pour assurer l’étanchéité du raccord.
Duct tape
over seam
and screw
Screw
Air flow
12
Installation Instructions
