zv48Tsfss – GE Monogram 48" stainless steel Professional Hood

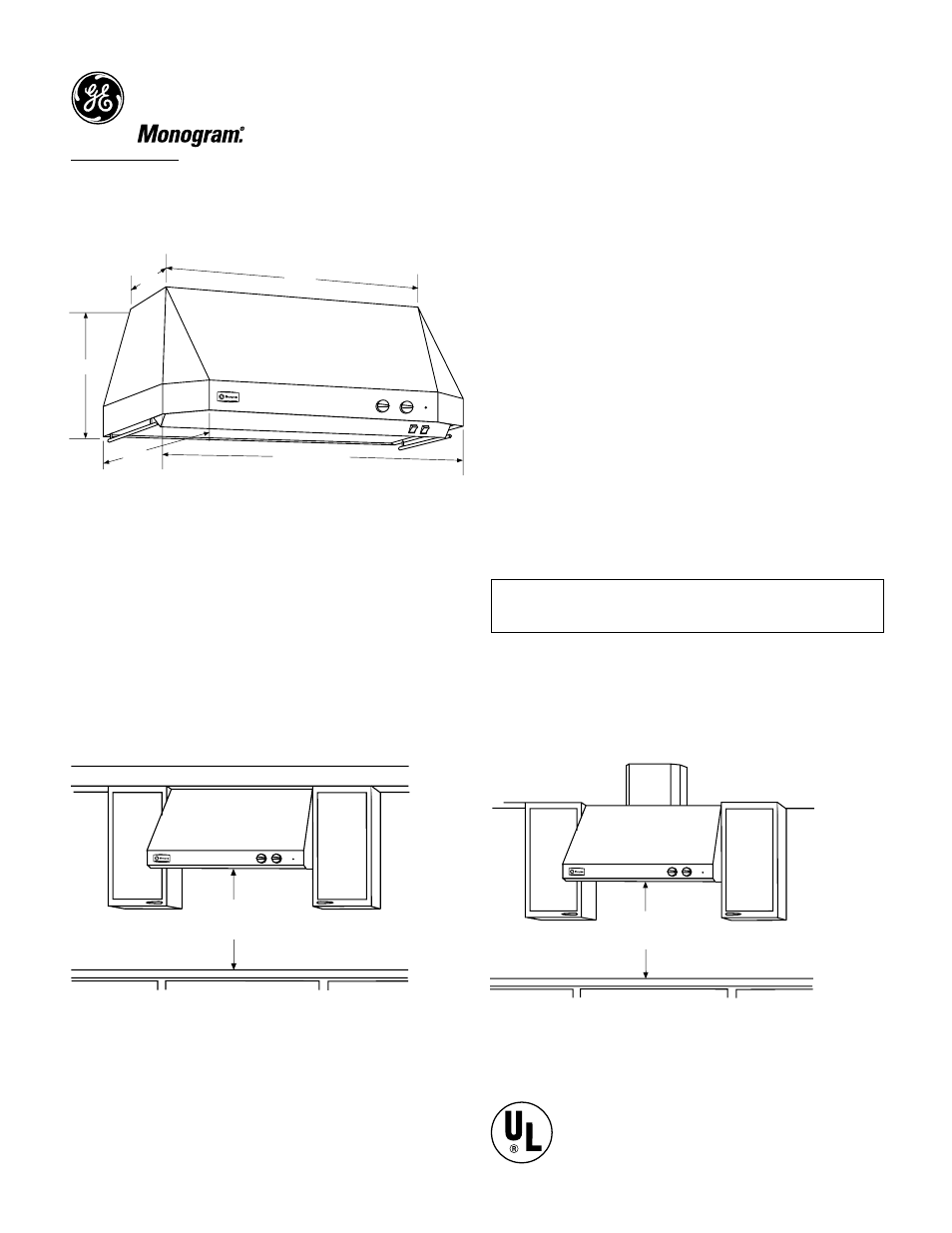

Dimensions and specifications (in inches)
For answers to your Monogram,
®
GE Profile
™
or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center
®
service, 800.626.2000.
Listed by
Underwriters
Laboratories
Model ZV48T With Tapered Sides
18"
40"
25" 47-15/16"
12"
Installation Clearances
These vent hoods are designed to be installed onto a wall or beneath a
soffit or cabinet.
• Install these hoods* 30" Min. to 36" Max. above the cooking surface.
*These hoods may be installed 24" min. above a gas or electric drop-in
style cooktop. Always observe the 30" to 36" clearance when installed
over any professional style cooktop or range.
Note: Clearances may vary due to type of cooking product and local
codes. Check with local inspectors to be sure standard is applicable.
soffit Installation
SOFFIT
Soffit Installation
30" MIN.
36" MAX.
In this installation the ductwork running from the top of the hood will
be concealed in the soffit or upper cabinetry.
Wall Mount Installation
Wall Mount Installation
30" MIN.
36" MAX.
For this installation, a decorative duct cover is available to conceal the
ductwork running from the top of the hood. Use of the duct cover requires
special consideration to the installation height above the countertop.
specification Revised 6/11
130652
