Component identification 6
Component identification
In this section
Front panel LEDs and buttons..................................................................................................................... 6
SAS and SATA drive numbers.................................................................................................................... 8
SAS and SATA hard drive LEDs ................................................................................................................. 8
SAS and SATA hard drive LED combinations............................................................................................... 9
Rear panel components........................................................................................................................... 10
Rear panel LEDs and buttons ................................................................................................................... 11
System board components....................................................................................................................... 11
System board LEDs ................................................................................................................................. 13
Internal USB connectors .......................................................................................................................... 15
System LEDs and internal health LED combinations ..................................................................................... 15
Battery-backed write cache LEDs .............................................................................................................. 16
Fan assembly location ............................................................................................................................ 18

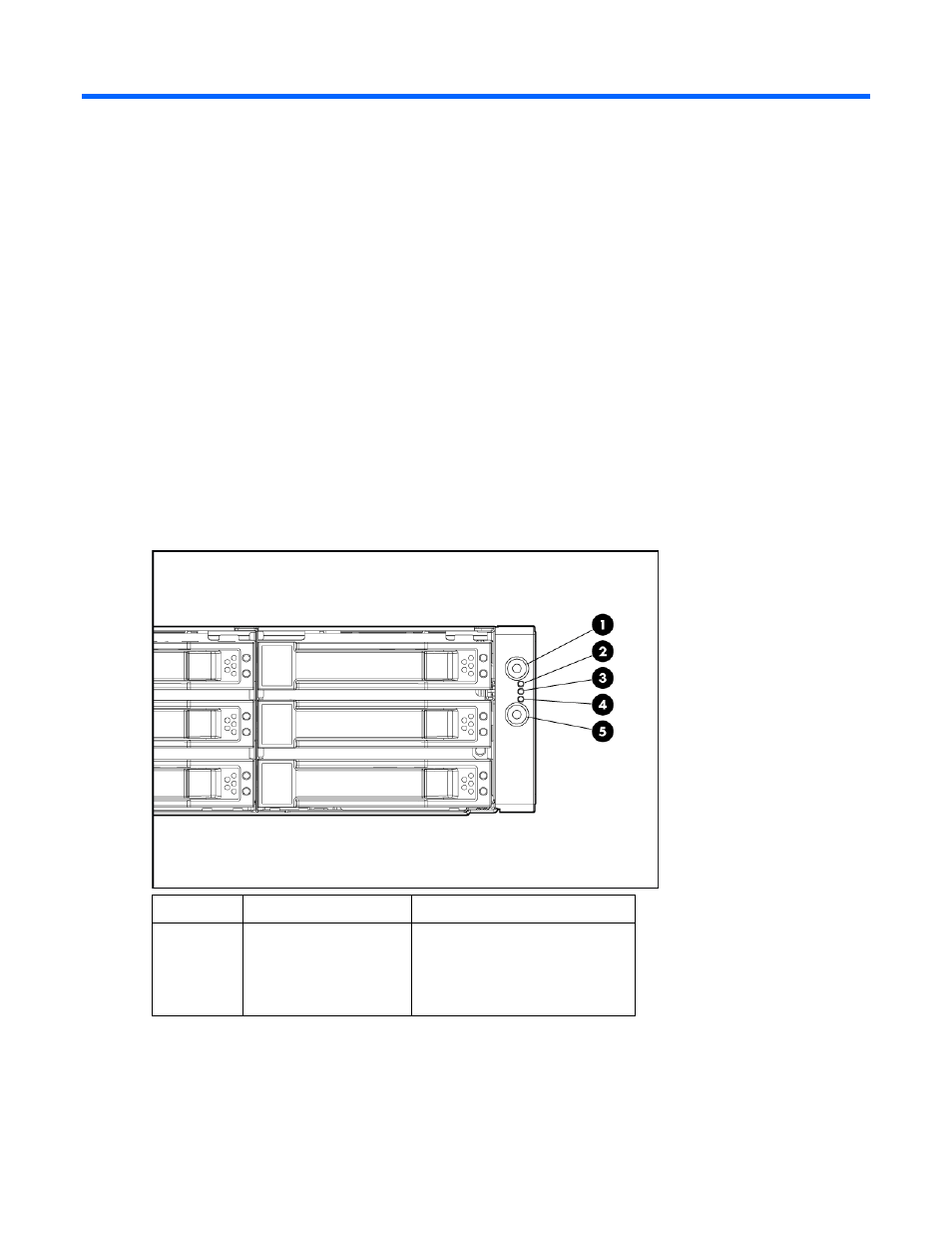

Front panel LEDs and buttons
Item Description
Status
1
UID button/LED
Blue = Identification is activated.
Flashing blue = System is being
remotely managed.
Off = Identification is deactivated.
