Component identification 15

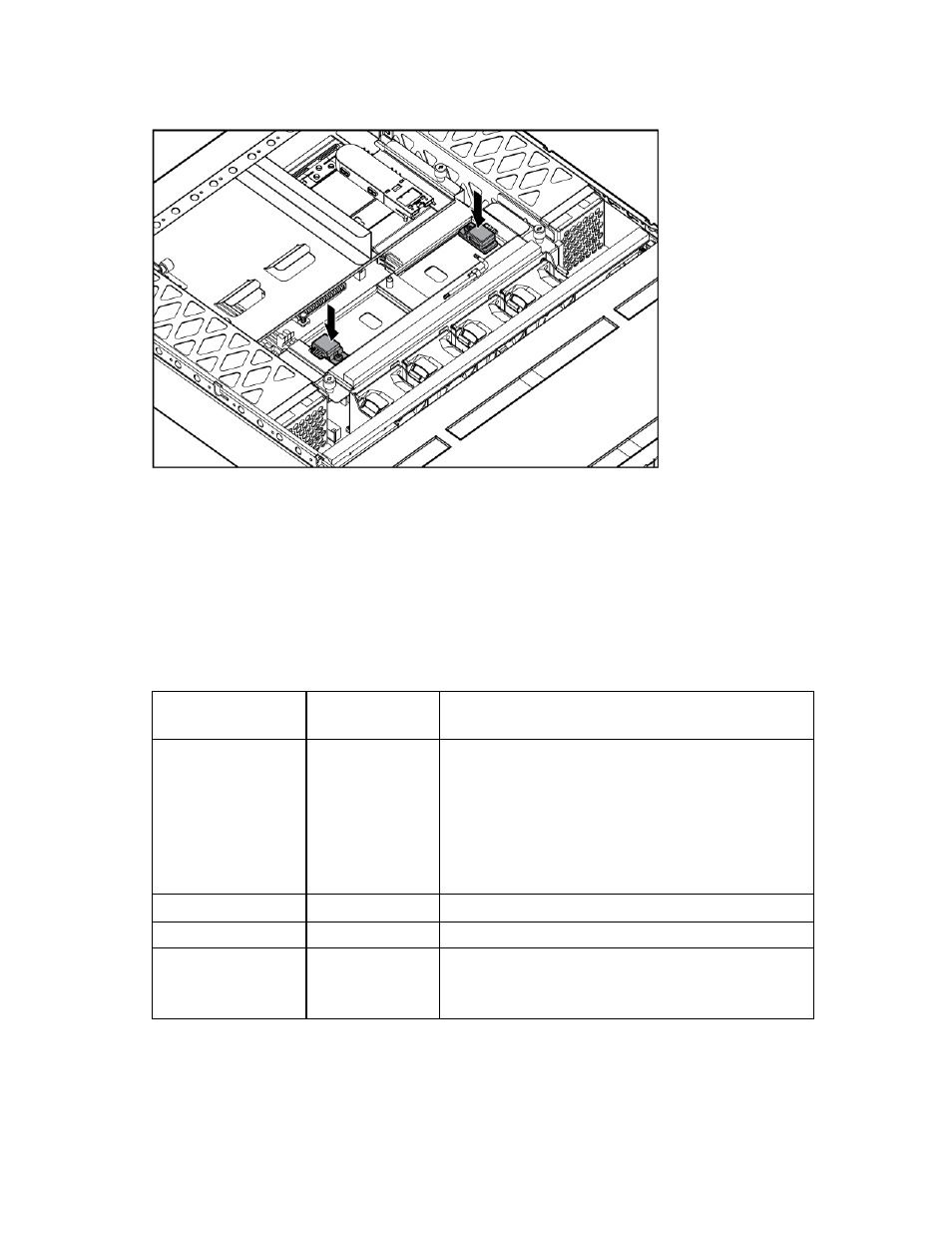

Internal USB connectors
See "Internal USB functionality (on page 54 )" for more information.
System LEDs and internal health LED combinations
When the internal health LED on the front panel illuminates either amber or red, the server is experiencing
a health event. Combinations of illuminated system LEDs and the internal health LED indicate system
status.
The front panel health LEDs indicate only the current hardware status. In some situations, HP SIM may
report server status differently than the health LEDs because the software tracks more system attributes.
System LED and
Color Internal Health
LED Color Status
Processor failure
(amber)
Red One or more of the following conditions may exist:
• Processor has failed.
• Processor failed over to the offline spare.
• Processor is not installed in the socket.
• Processor is unsupported.
• ROM detects a failed processor during POST.
Amber Processor is in a pre-failure condition.
PPM failure (amber) Red PPM has failed.
DIMM failure, slot X
(amber) Red • DIMM in slot X has failed.
• DIMM in slot X is an unsupported type, and no valid
memory exists in another bank.
