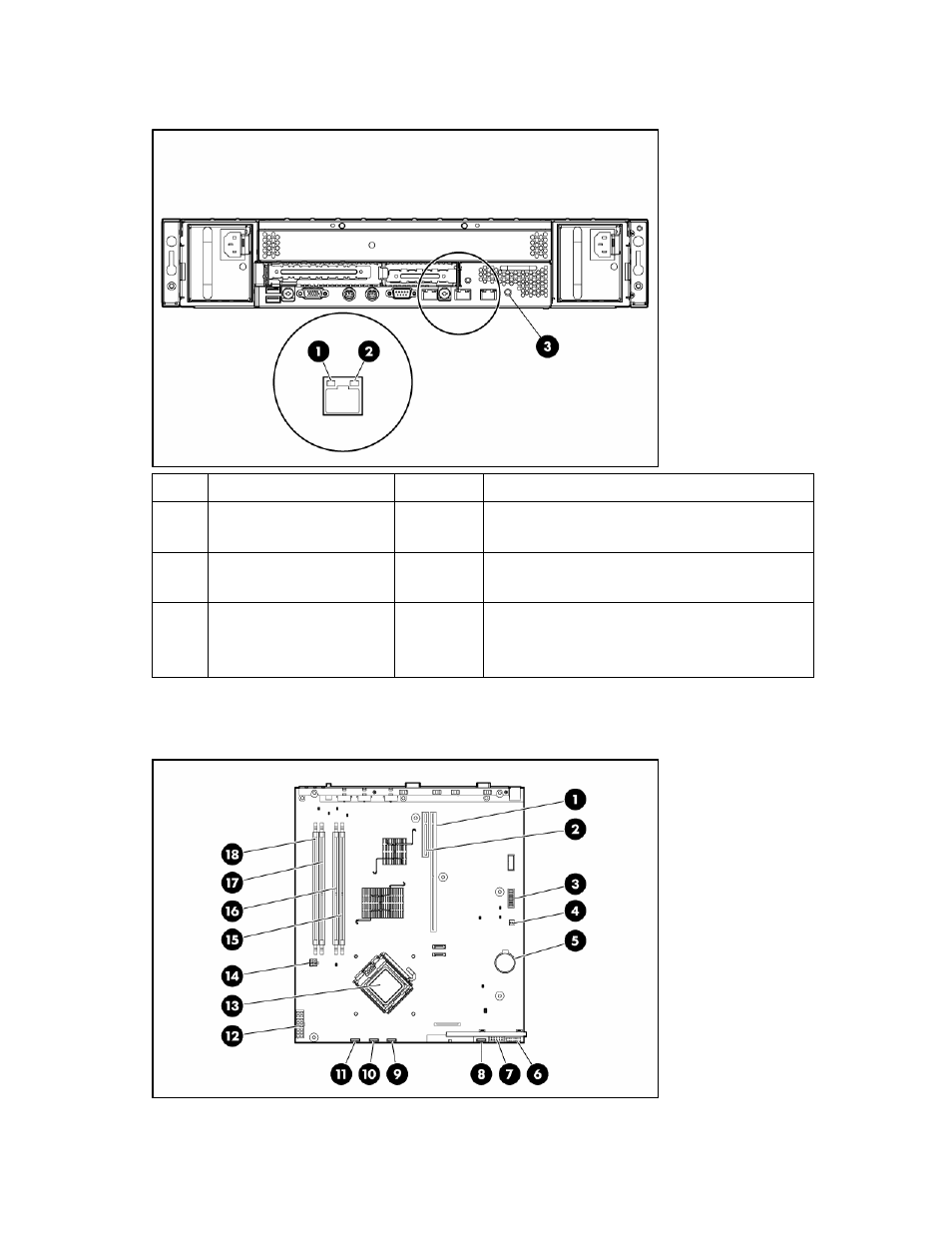

Rear panel LEDs and buttons

Item Description

LED

color Status

1

Activity LED

Green

On or flashing = Network activity
Off = No network activity

2

Link LED

Green

On = Linked to network
Off = Not linked to network

3

UID LED

Blue

On = Activated
Flashing = Server remotely managed
Off = Deactivated

System board components
