HP StoreEver LTO Ultrium Tape Blades - Manual (Page 68)

. 4. Remove the tape drive and then remove the clip-on mounting rails, one from each side of the
faulty tape drive, and retain the rails for use with the replacement tape drive.

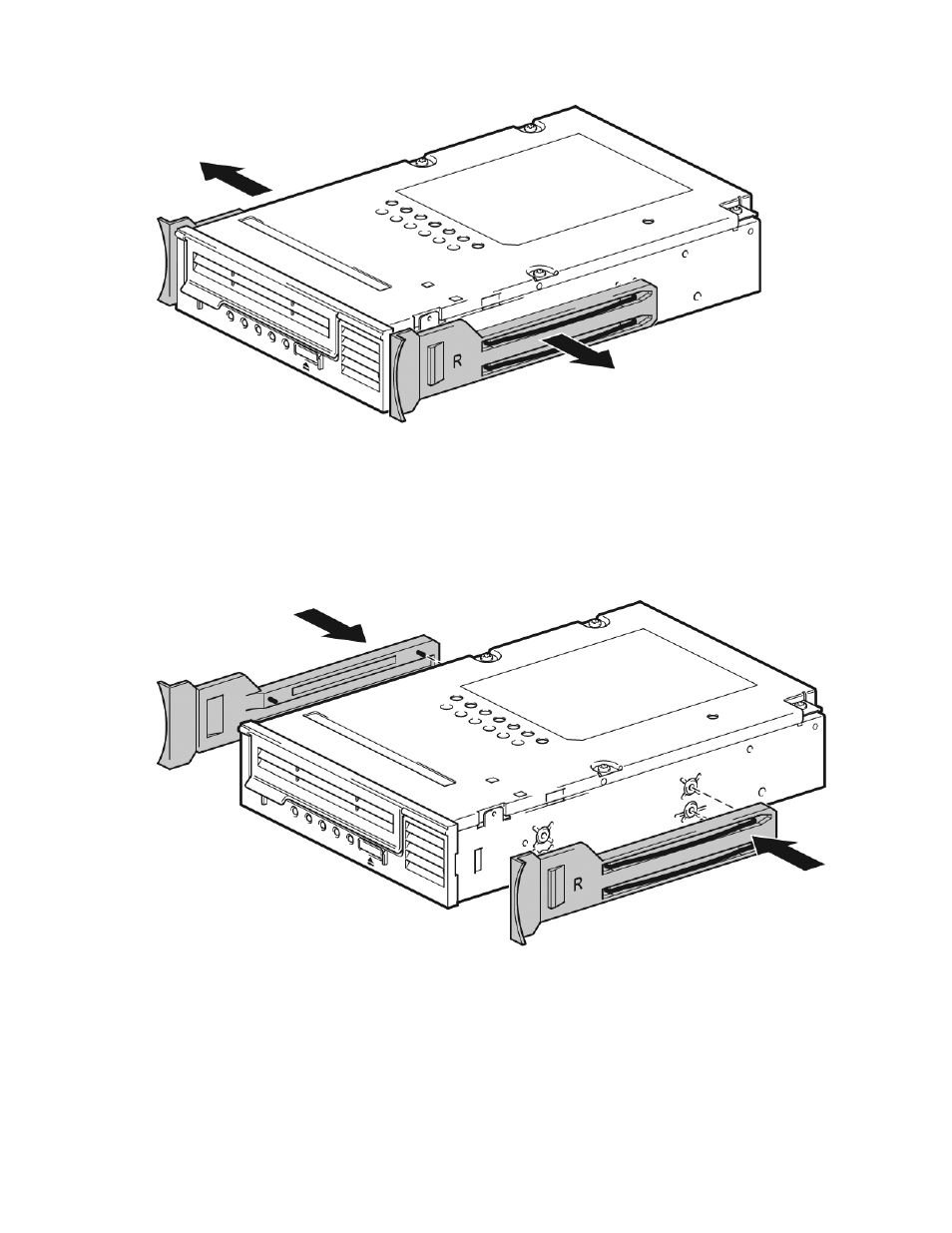

Figure 29 Removing the clip-on mounting rails on a faulty tape drive
. 5. Put the faulty tape drive into the packaging that contained the replacement item.
Install the new tape drive
1. Attach the clip-on mounting rails to the new tape drive. They are marked right and left. (It is easier
to clip in the rear end of the rails first.)
Figure 30 Replacing the clip-on mounting rails on a new tape drive
.
Replacing a Tape Blade chassis or tape drive 68
