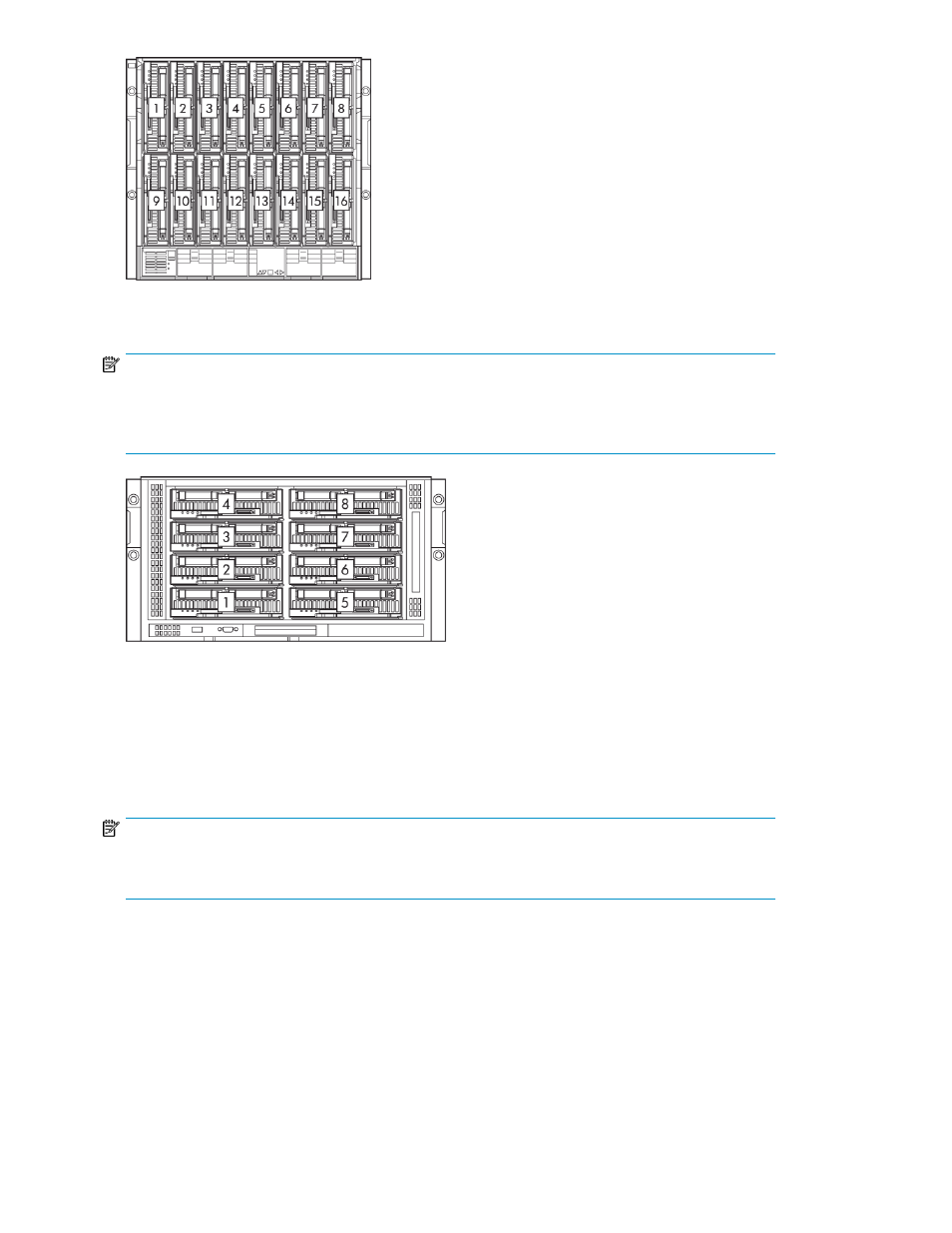

Figure 3 Half-height device bay numbering in a c7000 enclosure
.
NOTE:
In c3000 enclosures devices are seated horizontally but the same installation rules apply. The Tape
Blade resides in the adjacent device bay below or above the partner server blade. Slot combinations
are 1&2, 3&4, 5&6, 7&8.
Figure 4 Half-height device bay numbering in a c3000 enclosure
.
Installation with a half-height partner server blade
If you are installing with a full-height partner server blade, refer to “ Installation with a full-height partner
server blade ” on page 27.
NOTE:
The partner server blade and any device bay dividers must be installed and powered down before
you install the Tape Blade. See the documentation that ships with the server blade.
Installing an HP StorageWorks Tape Blade 22
