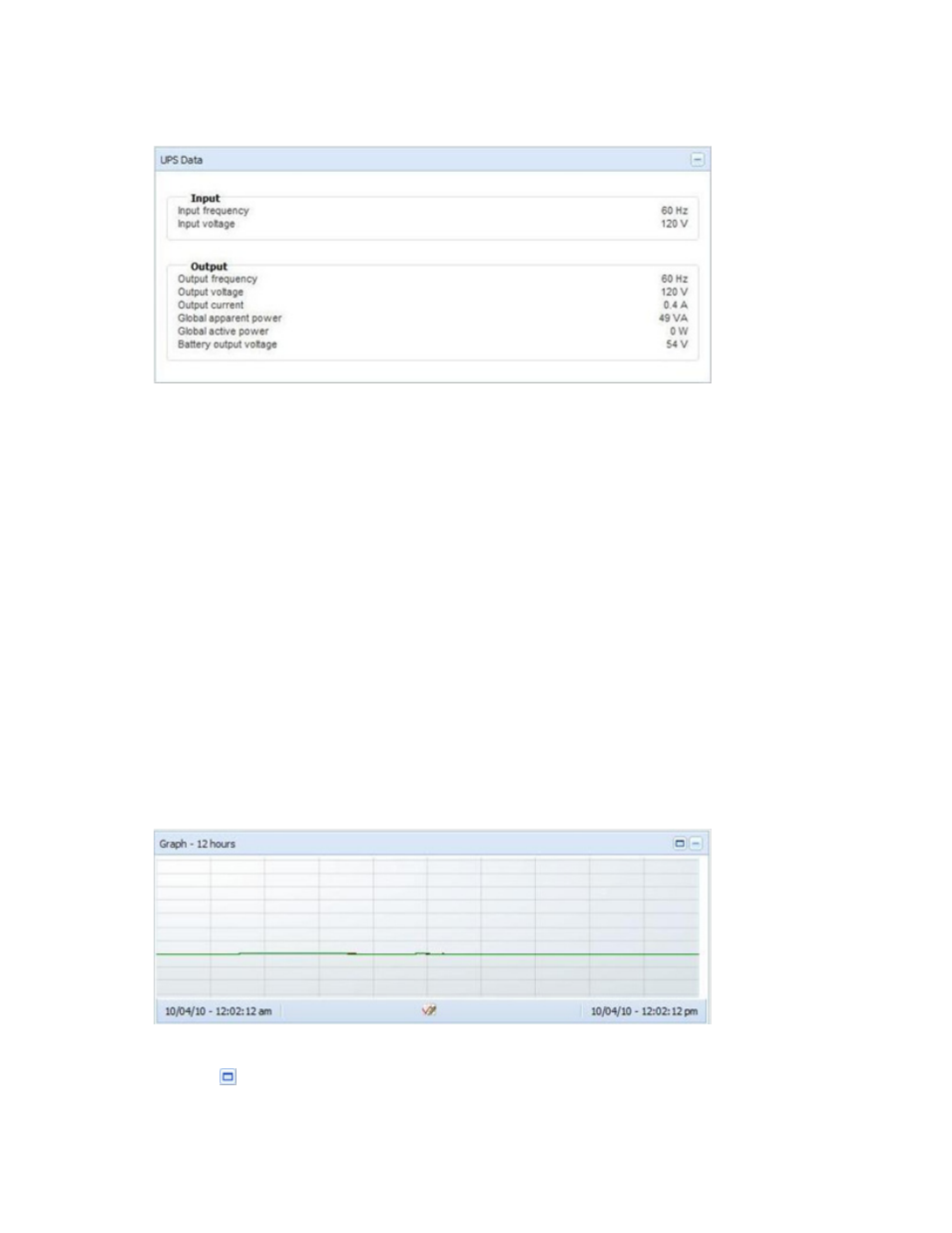

UPS Data panel
This panel displays input and output power information for the UPS. The data refreshes every 10 seconds.
The UPS information displayed in this panel varies depending on the UPS model. UPS data includes:
• Input
o Input frequency—The UPS input frequency
o Input voltage—The UPS input voltage
• Output
o Output frequency—The UPS output frequency
o Output voltage—The UPS output voltage
o Output current—The UPS output current
o Apparent power—The total UPS apparent power
o Active power—The total UPS active power
o Battery output voltage—The UPS battery output voltage
For a 3 phase UPS, data is displayed by phase. Hover your mouse over a 3 phase UPS data point for more
information about the value.
Graph panel
This panel displays a graphical representation of UPS data.
Hover your mouse over a data point to view the values of the graphed data.
Click the icon to zoom in to graph.
