• Hot-swap capability
• Compatibility with redundant and dual redundant switch configurations in c-Class BladeSystem
• Hot code activation
• Real-time clock
• SFP port monitoring
Component identification
Figure 1 and Table 2 identify the physical components of the 8Gb SAN Switch.

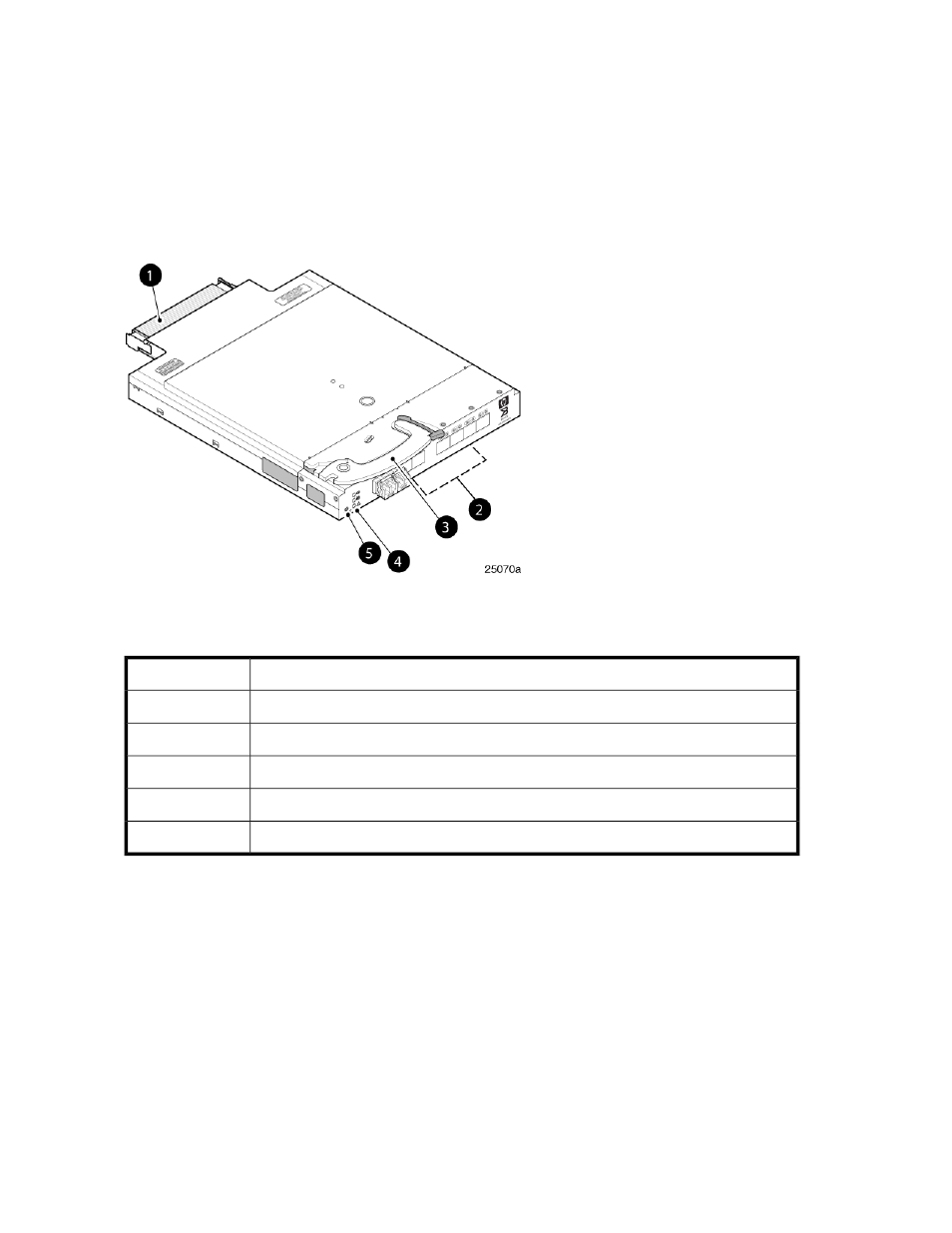

Figure 1 Brocade 8Gb SAN Switch components
.
Table 2 Brocade 8Gb SAN Switch components
Description Item
Midplane connector 1
Eight external SFP ports 2
Installation handle 3
Unit ID (UID), Health, and Status LEDs 4
Reset button 5
Port side of the 8Gb SAN Switch
Figure 2 and Table 3 identify 8Gb SAN Switch external ports (ports 17 through 20, and ports 21
through 0).
