Make sure the terminator is firmly attached to the SCSI-OUT connector on the rear of the device
when you install it. With the HP StorageWorks DAT 72 drive always use the supplied LVD terminator
for proper operation.

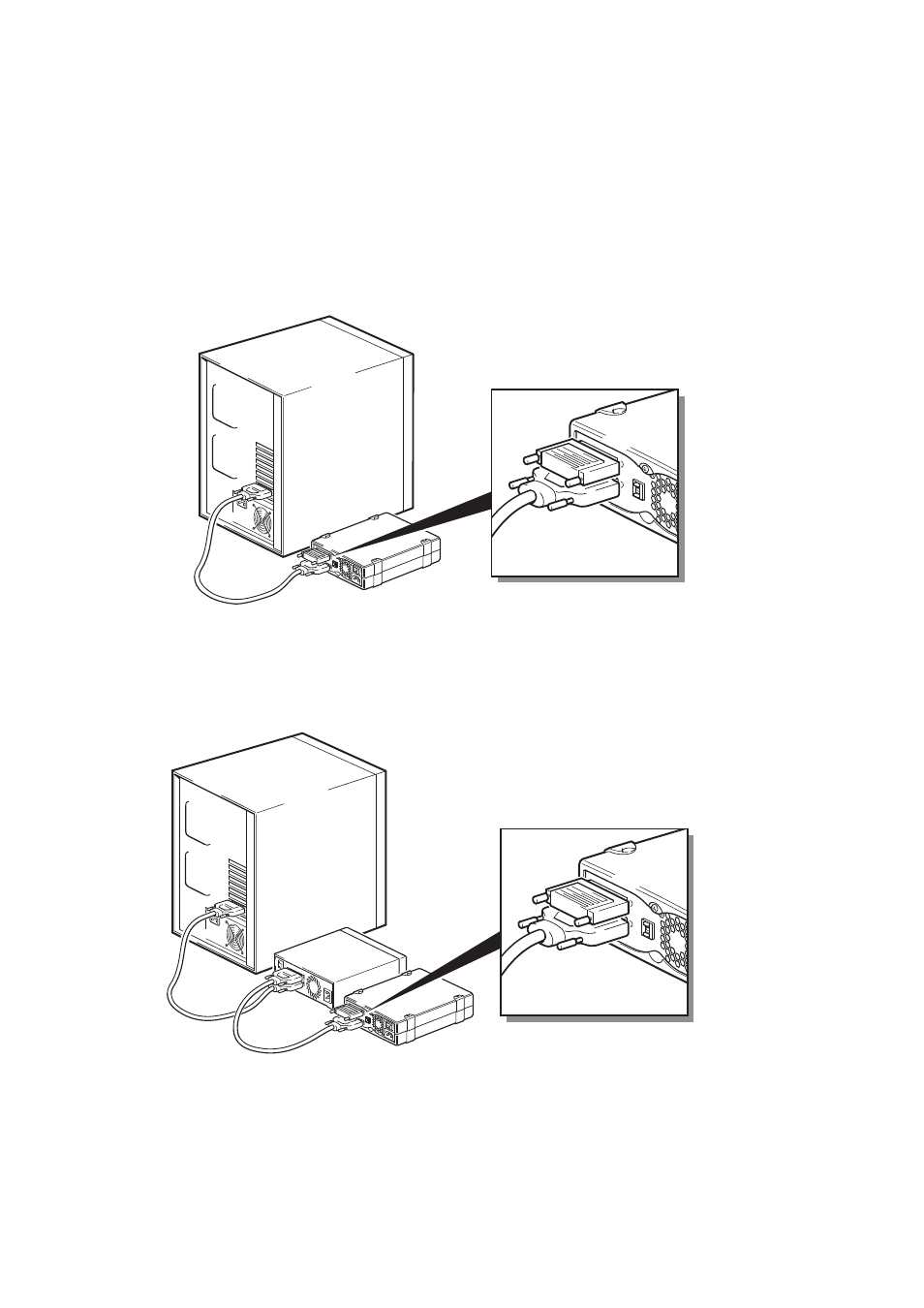

Figure 26
SCSI termination in external drives
If you have more than one device on the SCSI bus, daisy-chain them by connecting a cable from the
SCSI-OUT connector on the first device to the SCSI-IN connector on the second device and make
sure that the second device is terminated. (Always use an LVD-rated cable and an LVD-rated or
multimode terminator.)
Figure 27
SCSI termination in dasy-chained external drives
