3.

Connect the SAS cable to the tape drive. Attach the supplied power cord to the tape drive and
the mains power outlet.

3. Power on/off button

1. SAS connector

2. Power cord

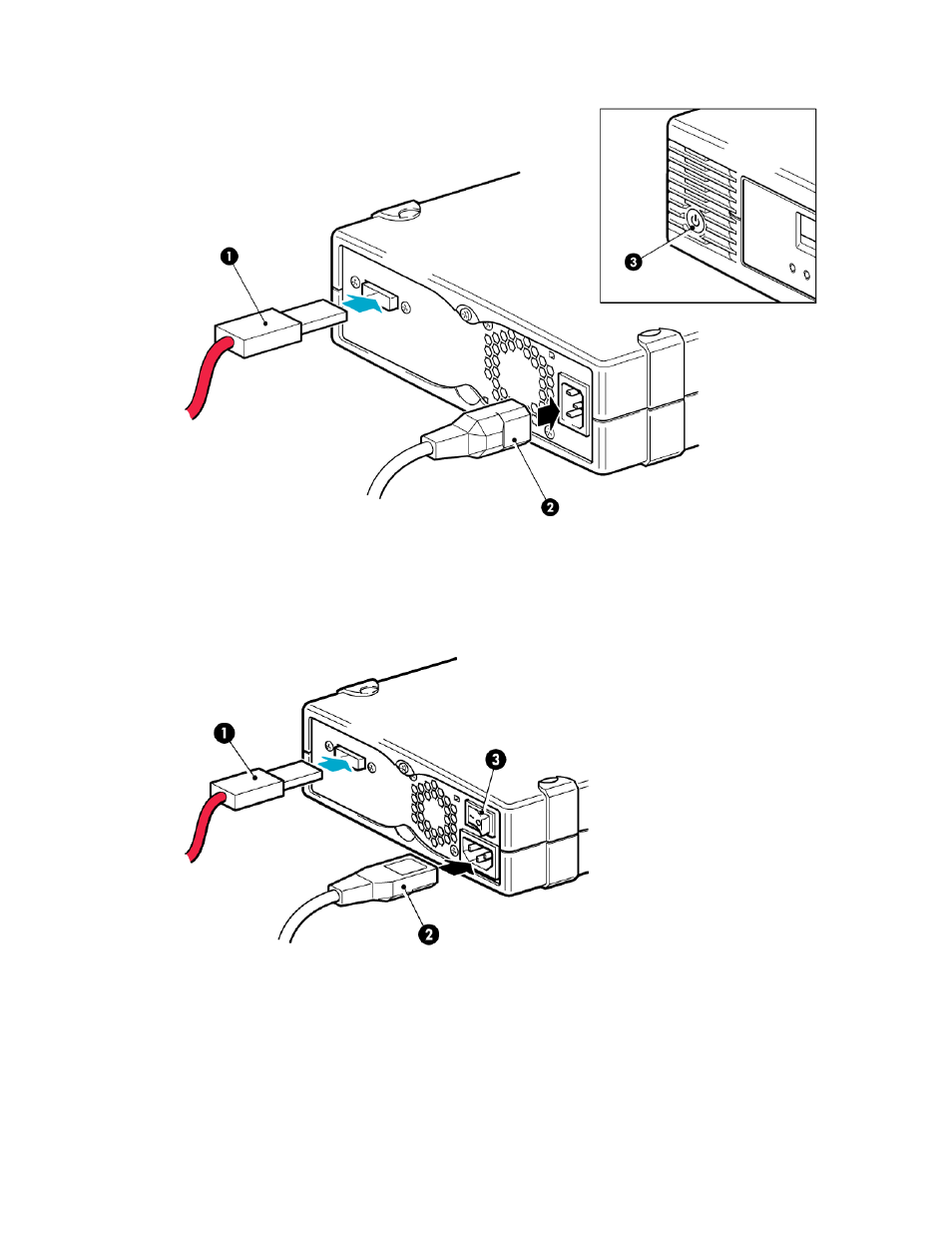

Figure 21 Connecting the cables to the DAT 320 tape drive

.

3. Power on/off switch

1. SAS connector

2. Power cord

Figure 22 Connecting the cables to the DAT 160 tape drive

.

DAT SAS Tape Drives

39
