Secure the drive

1.

Secure the drive, as described in your server documentation. The following diagrams are examples
only.

2. server latch, push down to lock the tape drive
into position

1. plastic rail

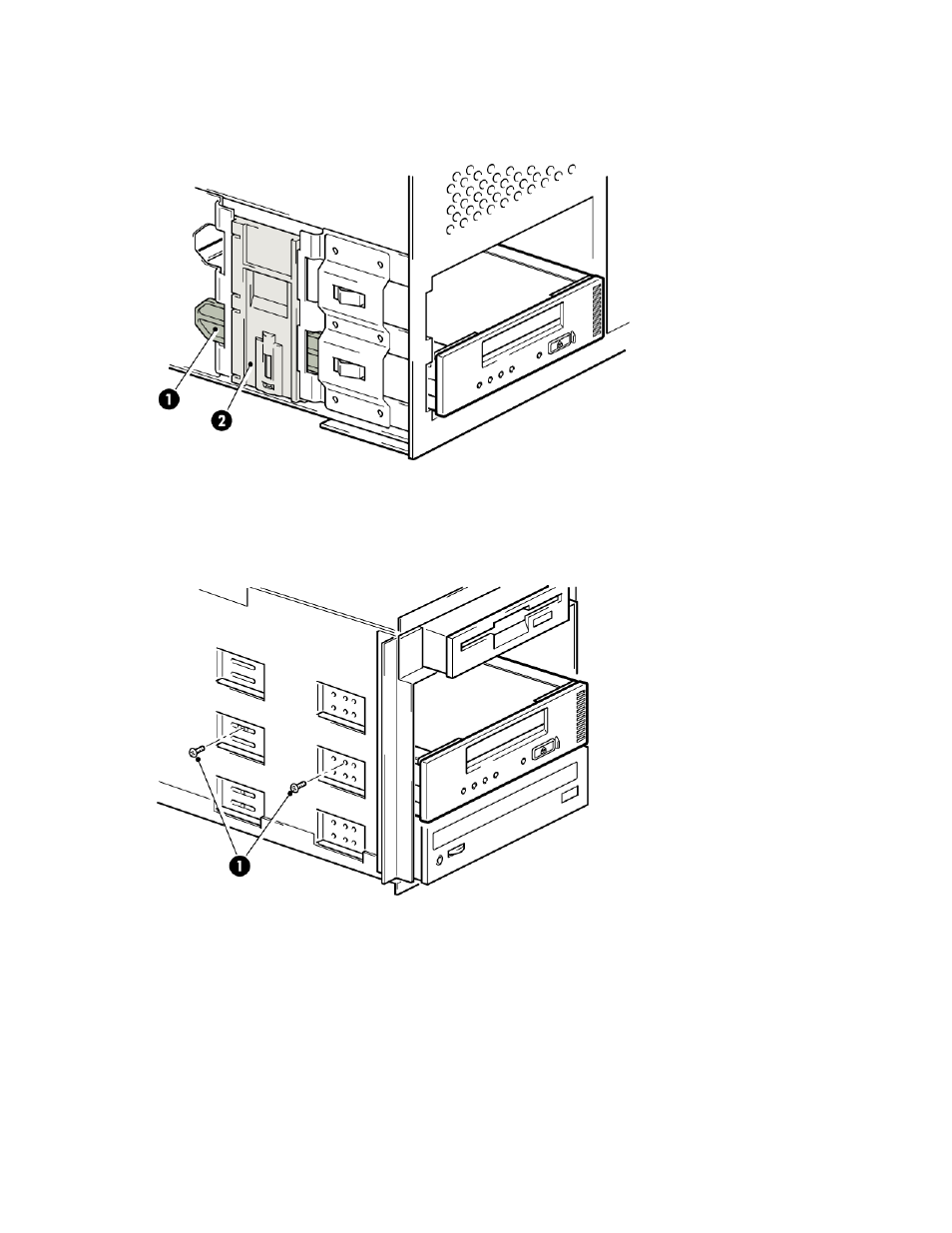

Figure 17 Securing drive example 1, mounting hardware used

.

1. M3 screws, supplied with tape drive

Figure 18 Securing drive example 2, no mounting hardware used

.

2.

Ensure blanking plates are in place over empty bays and replace the cover on the server.

3.

You are now ready to reboot the server.

Installing an internal DAT tape drive

36
