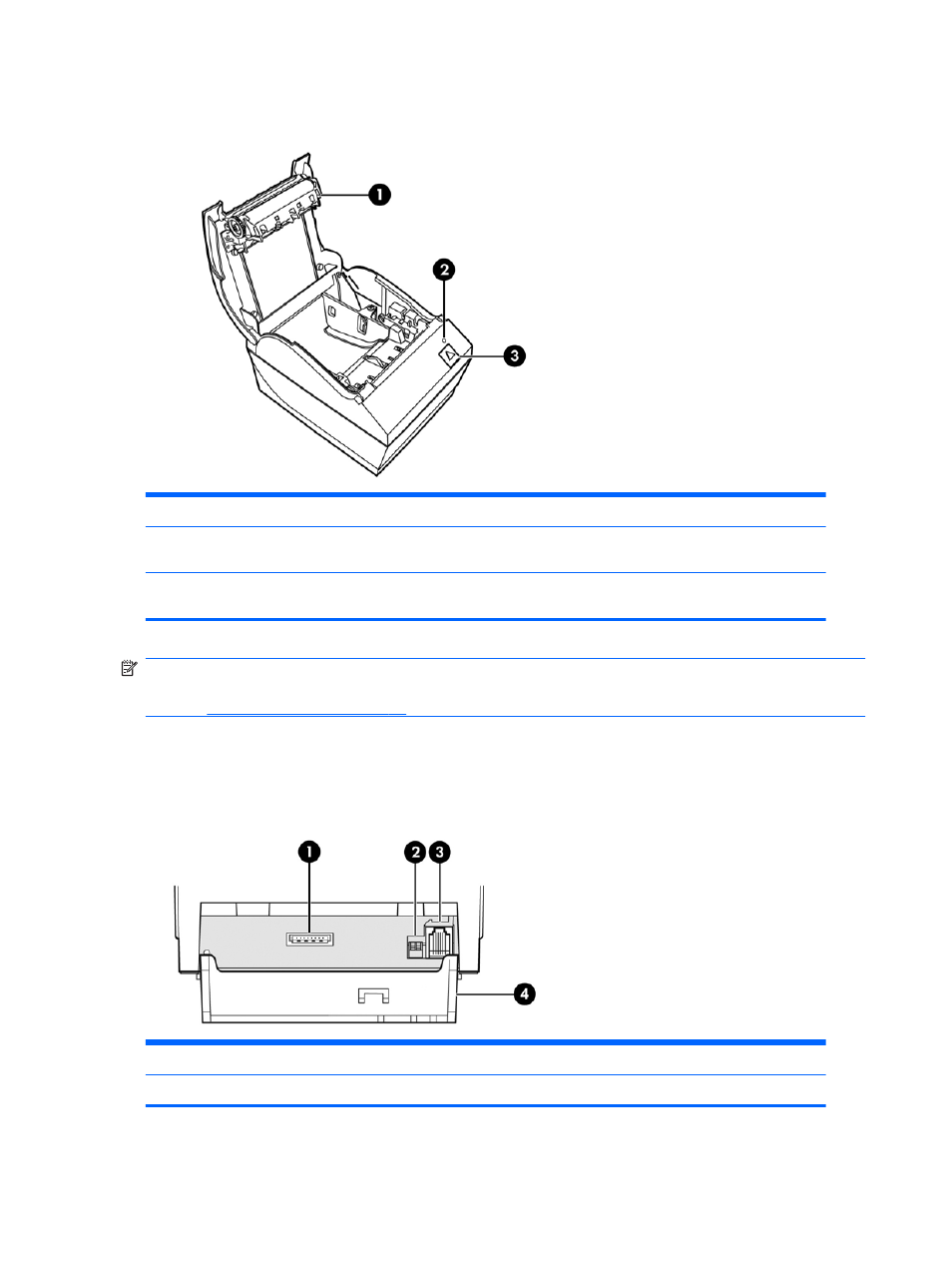

Identifying User Controls
1
Receipt cover - Snap opens to easily drop the paper roll in place.
2
Status LED - the green LED indicates basic information about the printer status. A steady green light indicates
the printer is on and operating normally. A flashing LED indicates the printer needs operator assistance.
3
Paper feed button - during normal use the paper feed button advances the paper. It is also used to access the
configuration menu.
NOTE:
A single beep indicates the printer has successfully completed its startup routine. It should
beep after being powered up or reset. If the printer beeps twice, it may be experiencing a problem.
Refer to
in this guide for more information.
Identifying Rear Connectors
Powered USB Model
1
USB power connector - connects the printer to the POS computer and provides power to the printer.
2
Configuration switch (DIP switch 1) - allows you to change the configuration settings of the printer.
2
