maintenance guide
49
Tools Time 15 min
1

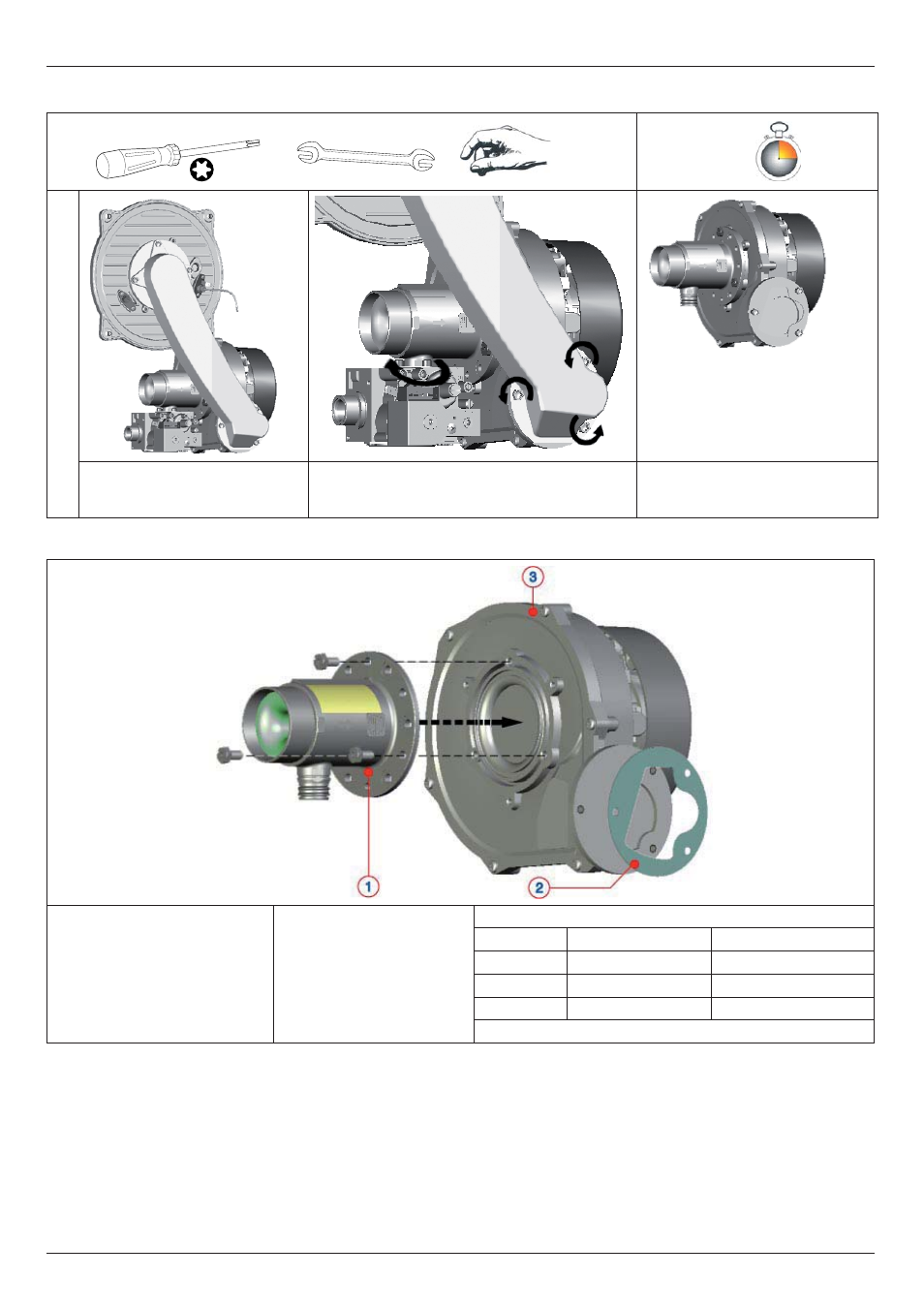

Remove the combustion assembly
(see 4.3)
Remove the three screws to free the fan.
Twist the gas valve anti-clockwise to disengage it from
the fan
Legend:
1. Venturi
2. Gasket
3. Fan Fan & Mixer venturi according to the model
Power Fan Venturi diameter
Model 24 EBM RG 128 45 W Ø 17 mm
Model 30 EBM RG 128 45 W Ø 21 mm
Model 38 EBM RG 128 45 W Ø 25 mm
Fan
