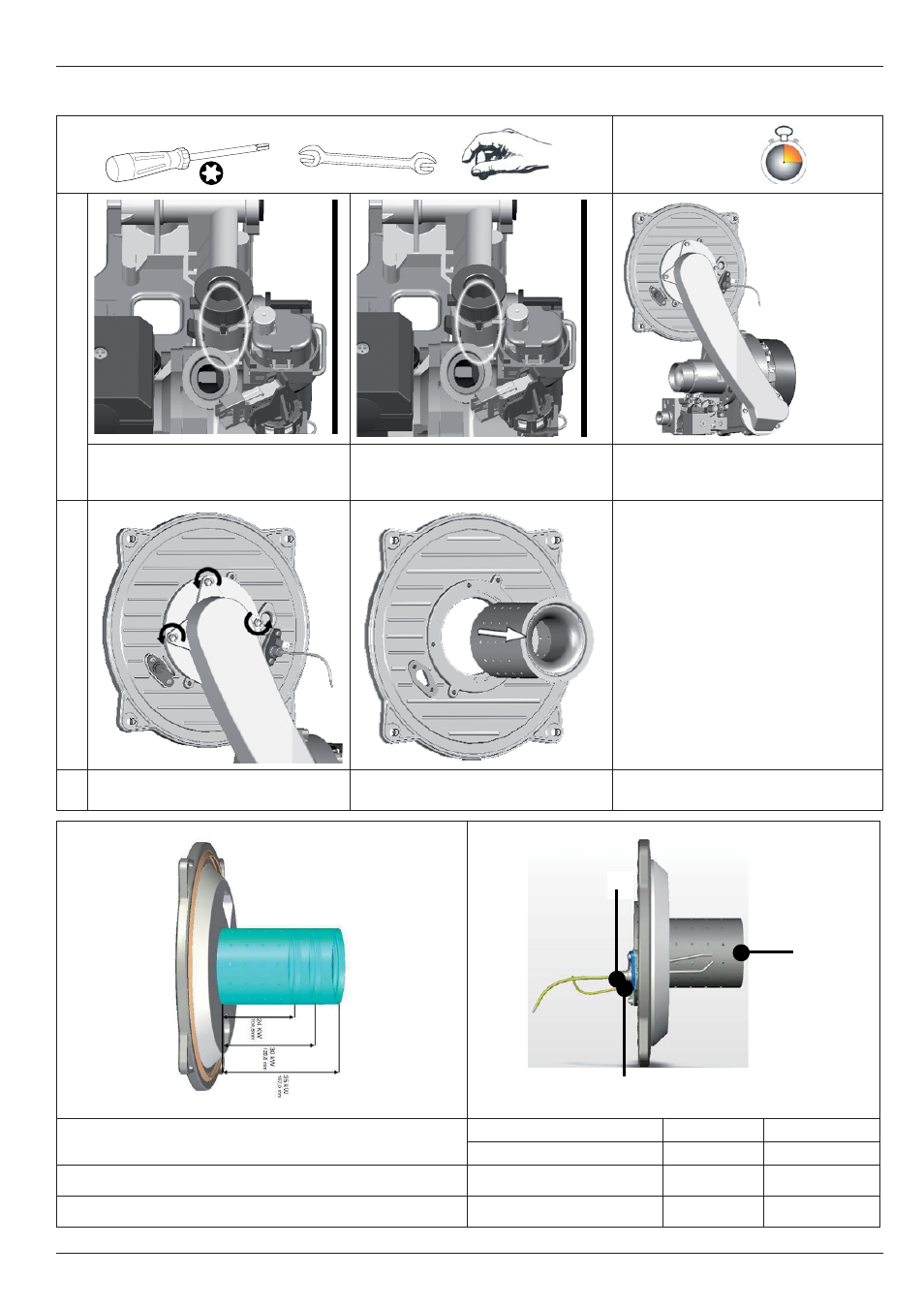

maintenance guide
48
Tools Time 15 min
1
Remove the silencer Isolate the gas supply. Remove the four
screws and disconnect the gas pipe from
the gas valve Pull the assembly towards you
2
Note: Any work carried out on the
combustion assembly requires
a combustion analysis check on
completion of work
Remove the three screws to free the burner
door Pull the burner toward you
1 1
3 3
2 2
1.Stainless Steel Burner
Power Length Venturi
24 KW 104.6 mm Ø 42 mm
30 KW 135.8 mm / 2. Ignition electrode
3.Detection electrode 38 KW 167 mm /
Burner
