Ariston E-COMBI 24 30 38 - Manual (Page 42)

maintenance guide
42
1
2
3
4
5

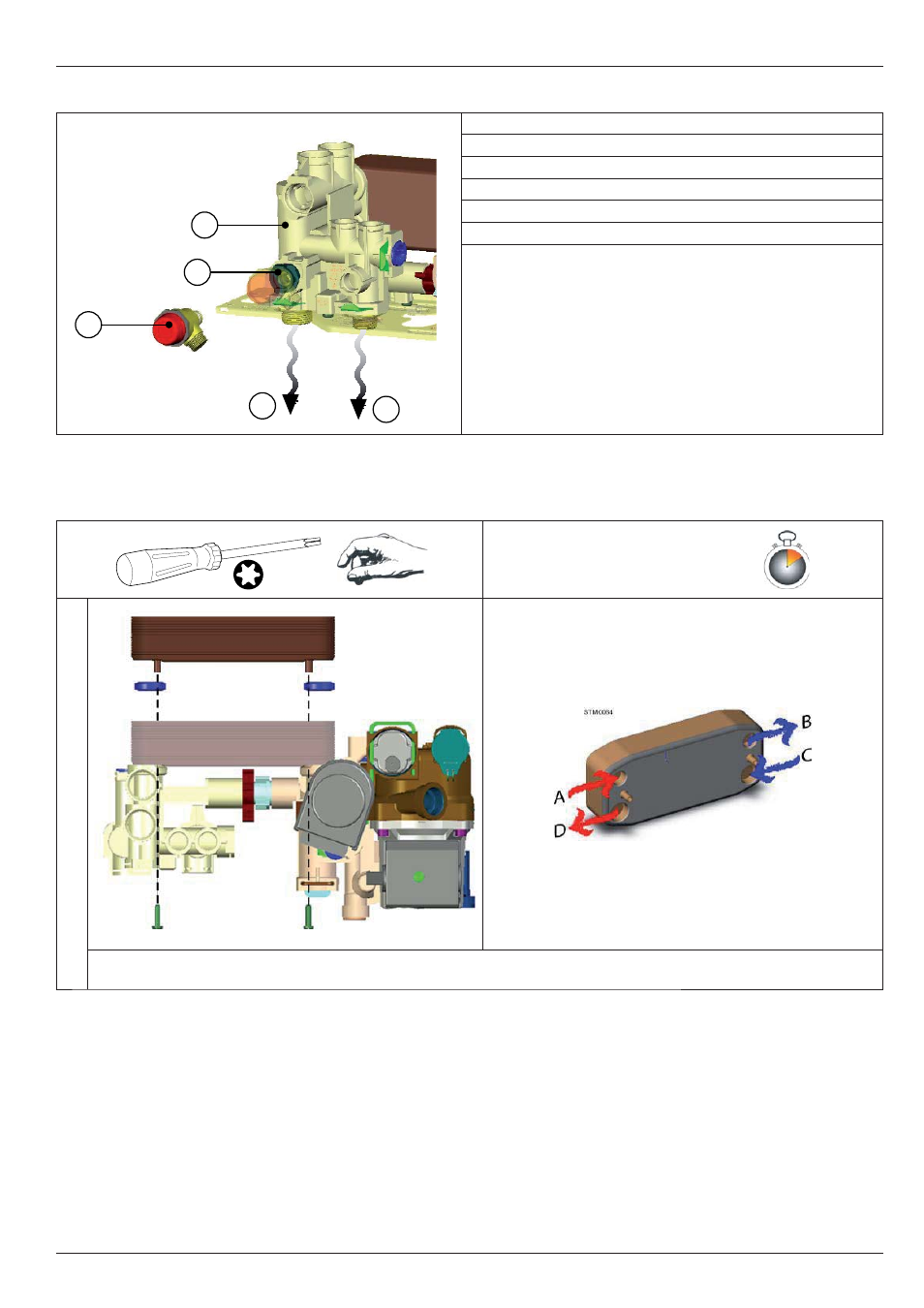

Legend
1. Left hand hydraulic block
2. By-pass assembly
3. Safety valve
4. Central heating fl ow
5. Domestic hot water outlet
Tools Time 10 min
1
Drain primary and domestic hot water circuits.
Remove the two screws and remove the heat exchanger
Left hand Hydraulic block assembly
Secondary Heat Exchanger (E-COMBI)
